Leeb Hardness Tester JH771 Portable Durometer Digital Measuring Device

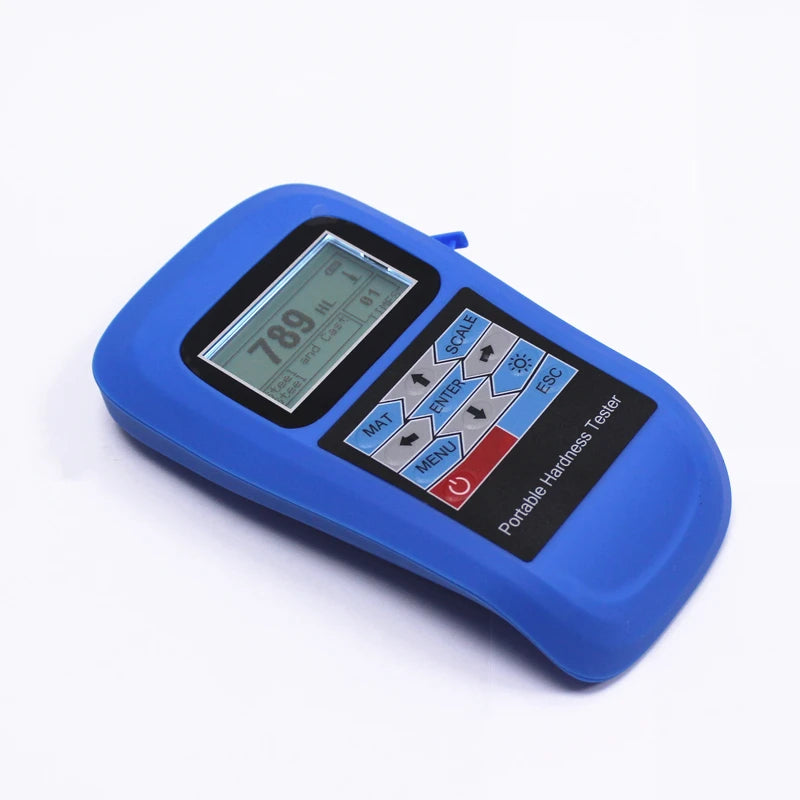

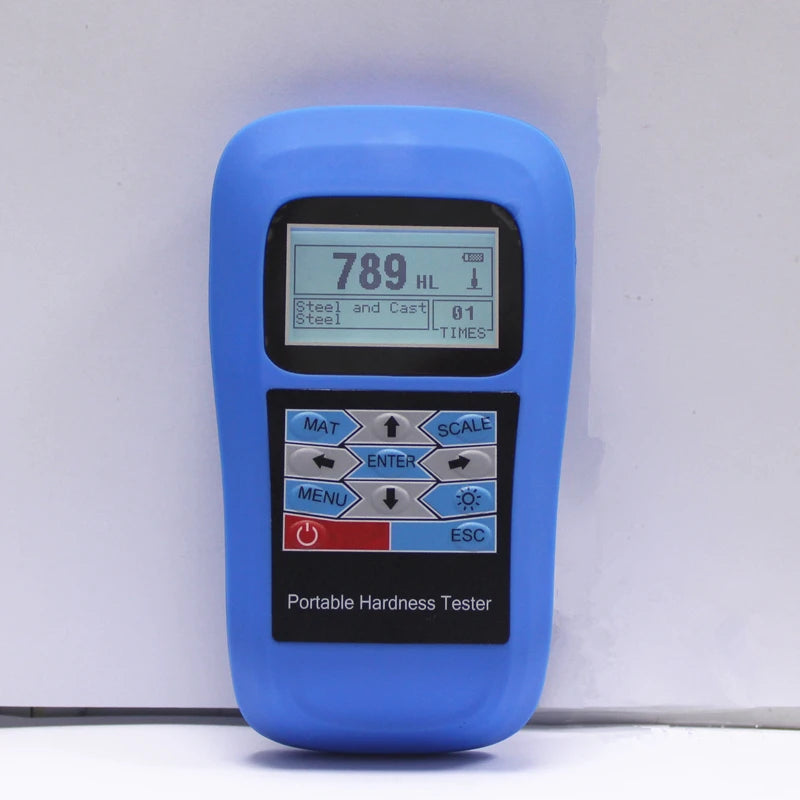

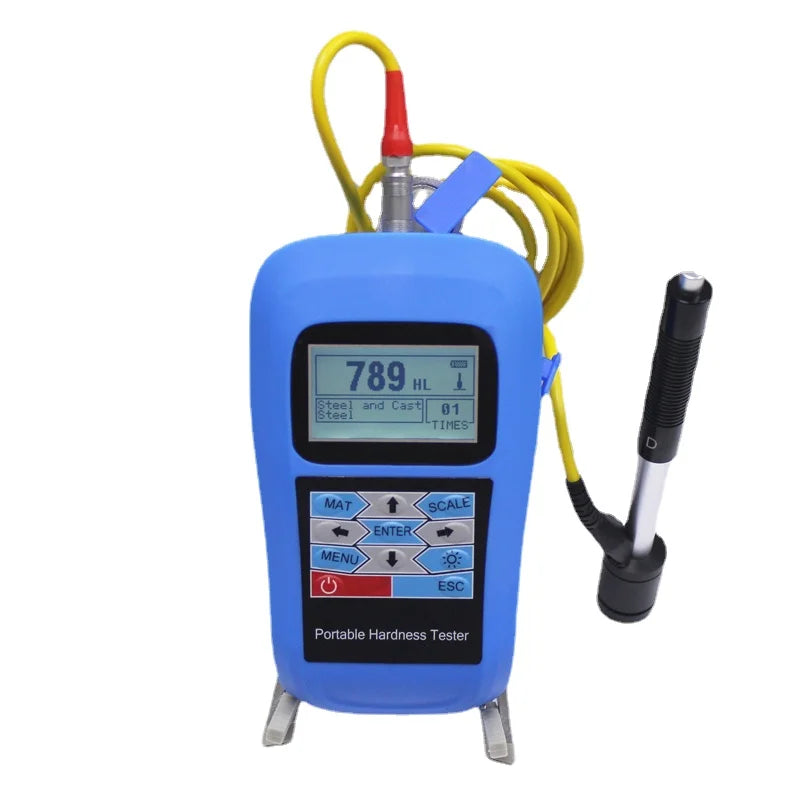

JH771 portable hardness tester
Features:
-Compact plastic case,suitable for use under poor working conditions.Test at any angle, even upside down. -Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HV, HB, HS, HL -Large screen (segment LCD),showing all functions and parameters. With EL background light. -Large capacity memory could store 500 groups information. -Datapro Software to connect with PC via USB Micro printer support
Technical Specifications:
-Measuring range:(170-960)HLD,(17-68.5)HRC,(19-651)HB,(80-976)HV,(30-100)HS,(59-85)HRA,(13-100)HRB
-Measuring direction:360°
-Hardness Scale:HL,HB,HRB,HRC,HRA,HV,HS
-Accuracy:±6HLD
-Display:segment LCD
-Data memory:max. 100 groups(relative to impact times 32~1)
-Working voltage:3V(2 AA size alkaline battery)
-Continuous working period:about 100 hours(With backlight off)
-Communication interface:USB
Main Applications:
-Die cavity of molds
-Bearings and other parts
-Failure analysis of pressure vessel, steam generator and other equipment
-Heavy work piece
-The installed machinery and permanently assembled parts.
-Testing surface of a small hollow space
-Material identification in the warehouse of metallic materials
-Rapid testing in large range and multi-measuring areas for large-scale work piece
Configuration:
|
|
No. |
Item |
Quantity |
Remarks |
|
|
|
Standard Configuration |
1 |
Main unit |
1 |
|
|
|
|
|
2 |

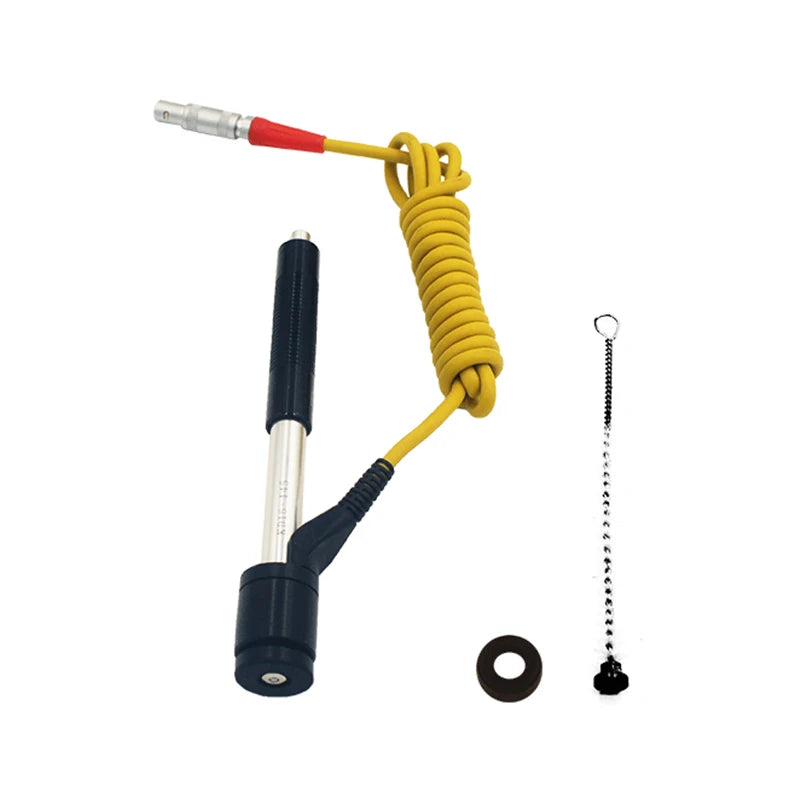

D type impact device |
1 |
With cable |
||
|
|
3 |
Standard test block |
1 |
|
||
|
|
4 |
Cleaning brush (I) |
1 |
|
||
|
|
5 |
Small support ring |
1 |
|
||
|
|
6 |
Alkaline battery |
2 |
AA size |
||
|
|
7 |
Manual |
1 |
|
||
|
|
8 |

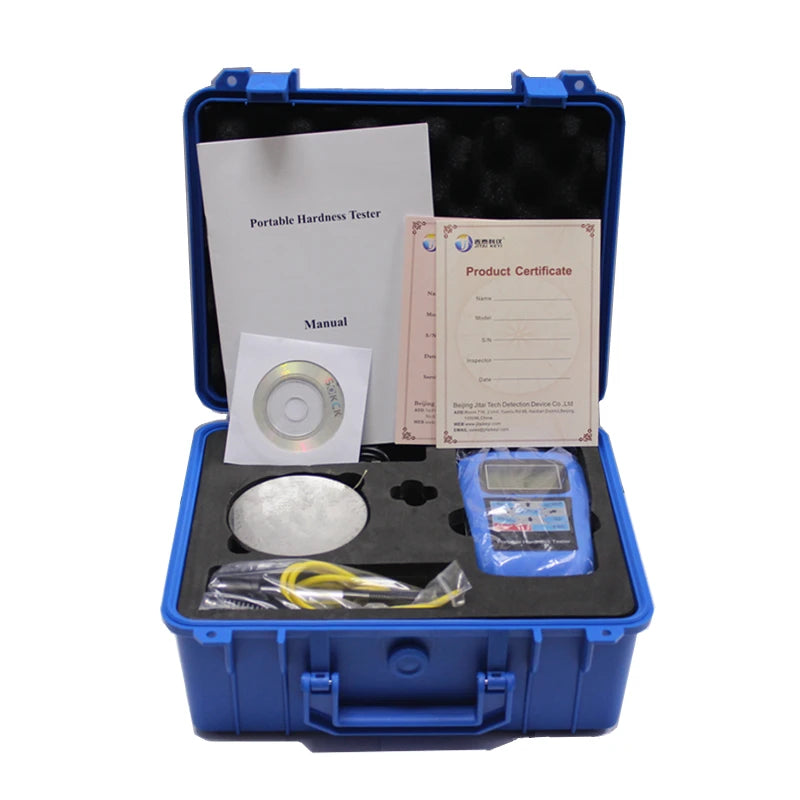

Instrument package case |
1 |
|
||
|
Optional Configuration |
9 |
Cleaning brush (II) |
1 |
For use with G type impact device |
|
|
|
|
10 |
Other type of impact devices and support rings |
|
Refer to Table 3 and Table 4 in the appendix. |
||
|
|
11 |
Data Pro software |
1 |
|
||
|
|
12 |
Communication cable |
1 |
|
||
|
|
13 |
Micro Printer |
1 |
|
||
|
|
14 |
Print cable |
1 |
|
||
Detailed Images
Packing & Delivery
|
Packaging |
|
|
|
Size |
36 * 22 * 9 cm |
|
|
Weight |
4.0 kg |
|
|
Packaging Details |
The normal package is carton box (Size: L*W*H) |
|
|
|
|
|
|
|
|
|
