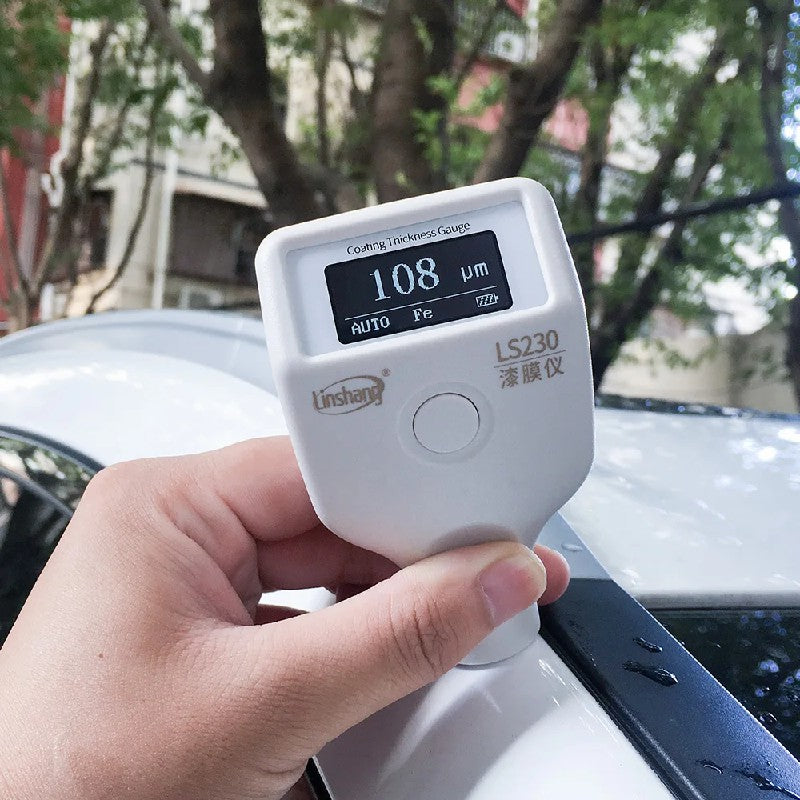

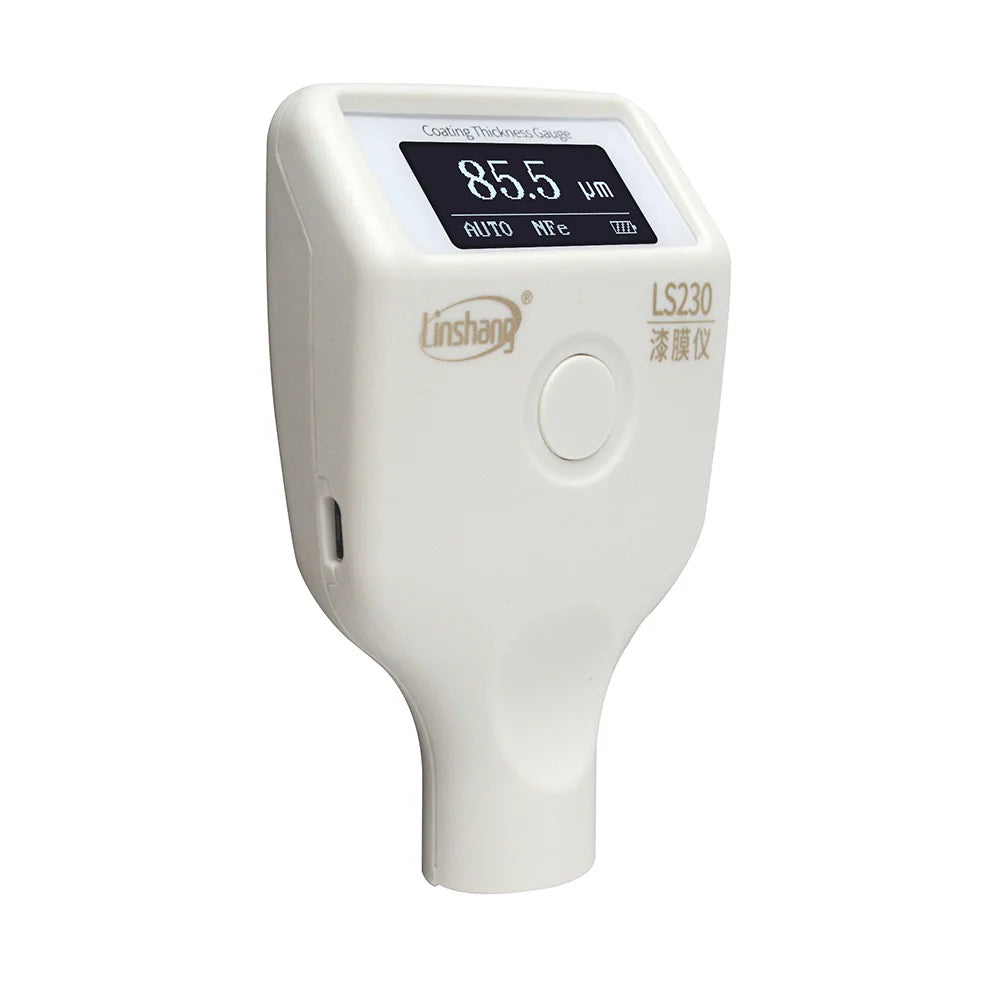

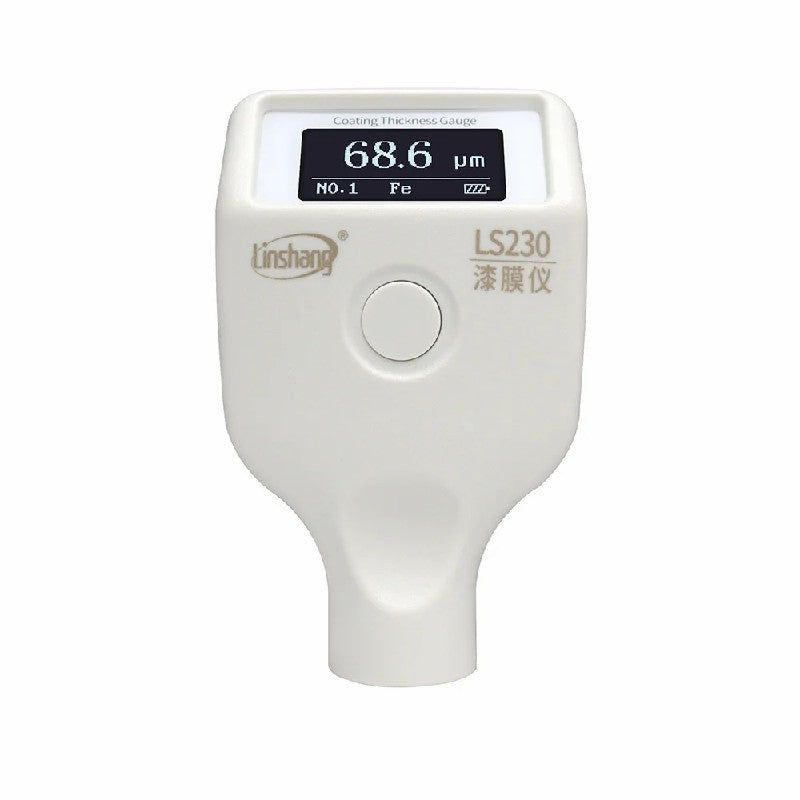

LS230 car paint meter is designed with the low-temperature resistant OLED display, which can be used normally in -40℃ environment, and is specialized in paint thickness inspection of used cars. The instrument adopts both Hall effect and eddy current measurement principles, which can quickly measure the paint thickness of iron and aluminum bodies and identify non-metallic substrates. It is made of high hardness and wear-resistant ruby probe, which ensures long-term use. Supports Bluetooth connection to generate test reports by mobile phone.

Specifications

1. Probe tip: Ruby fixed

2. Measuring principle: Fe: Hall Effect / Al: Eddy current

3. Probe type: Built-in integrated probe

4. Measuring range: 0.0-3500μm

5. Resolution: 0.1μm: (0μm-99.9μm); 1μm: (100μm-999μm); 0.01mm: (1.00mm-3.50mm)

6. Accuracy: ≤±(3%H+2μm), H is the standard value

7. Unit: μm / mil

8. Measuring interval: 0.5s

9. Minimum measuring area: Ø = 25mm

10. Minimum curvature: Convex: 5mm / Concave: 25mm

11. Minimum substrate thickness : Fe: 0.2mm / Al: 0.05mm

12. Display: 128×48 dot matrix low temperature resistant OLED

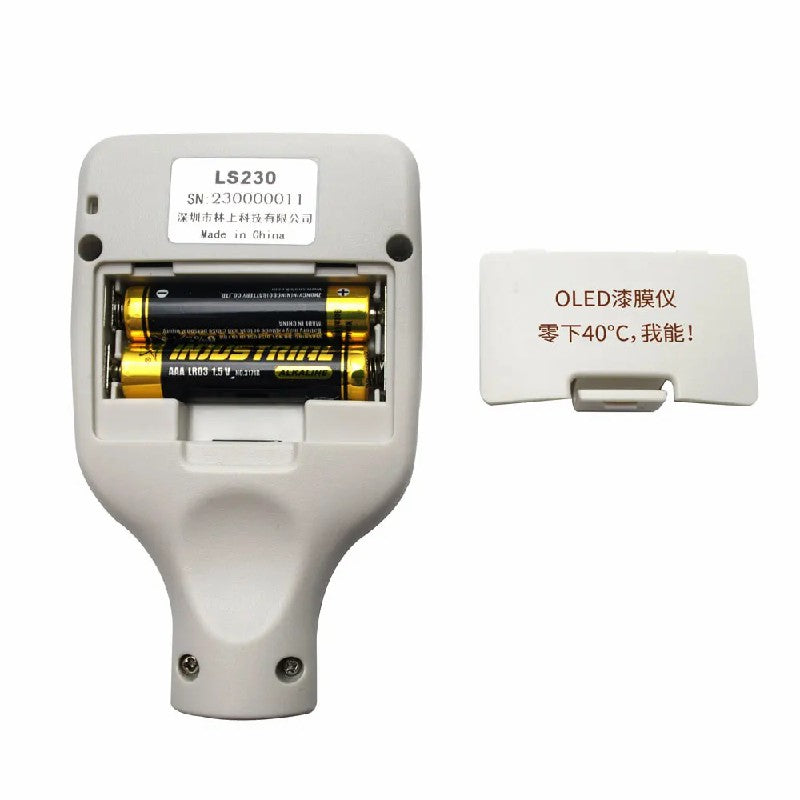

13. Power supply: 2pcs of 1.5V AAA alkaline battery

14. Range of operation temperature: -40℃-50℃

15. Storage temperature range: -50℃-60℃

16. Host size: 101*62*28 mm

17. Weight (include battery): 79g

Features

1. It is designed with the low-temperature resistant OLED display, which can be used normally in -40℃ environment.

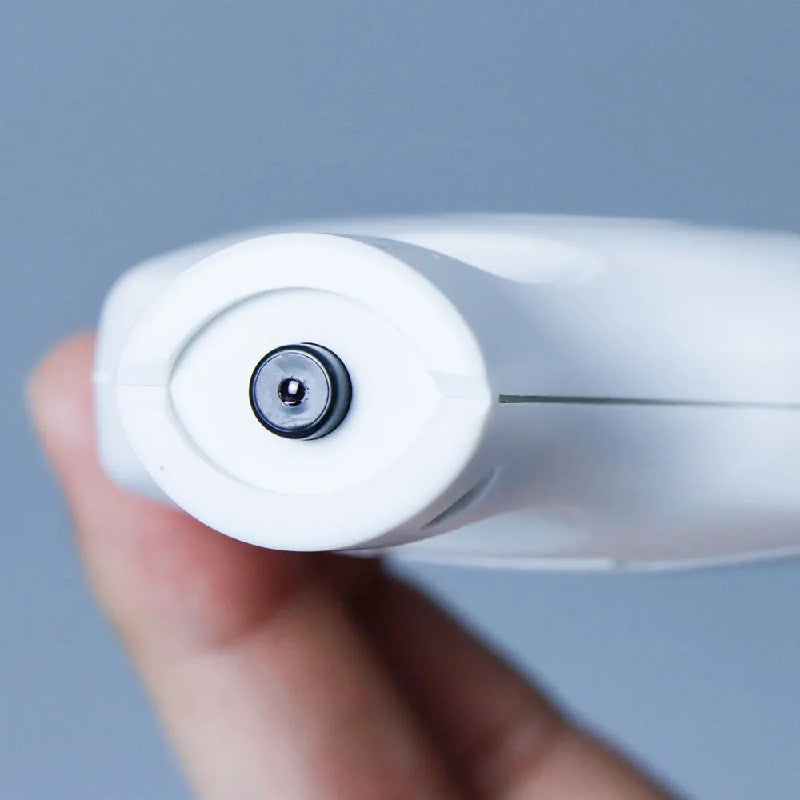

2. Wear-proof ruby probe for long-term use with strong corrosion and abrasion resistance.

3. Quickly identify ferrous putty, iron galvanized, iron, aluminum, non-metallic substrates.

4. Fast measurement, the test can be completed in 0.5 seconds.

5. One button with simple operation.

6. "Fe", "Al", "Fe/Al" three measurement modes can be set for the LS230 car paint meter.

7. With temperature compensation function, the car paint meter can ensure the stability of the sensor signal.

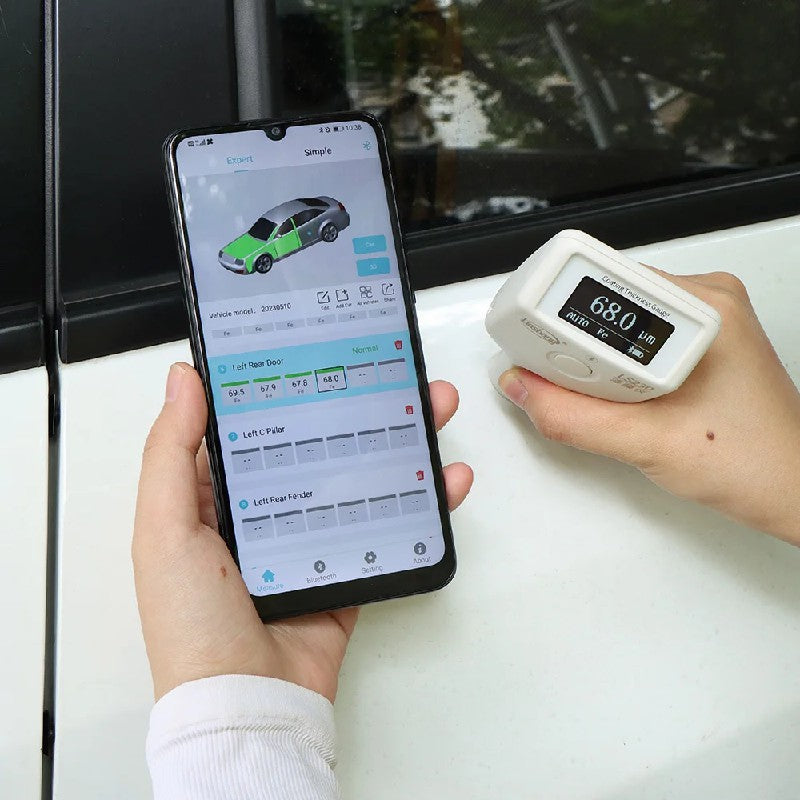

8. Complimentary cell phone APP, can generate test reports which can be saved or shared.

Note

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

Please allow 1-2cm measuring deviation due to manual measurement.
