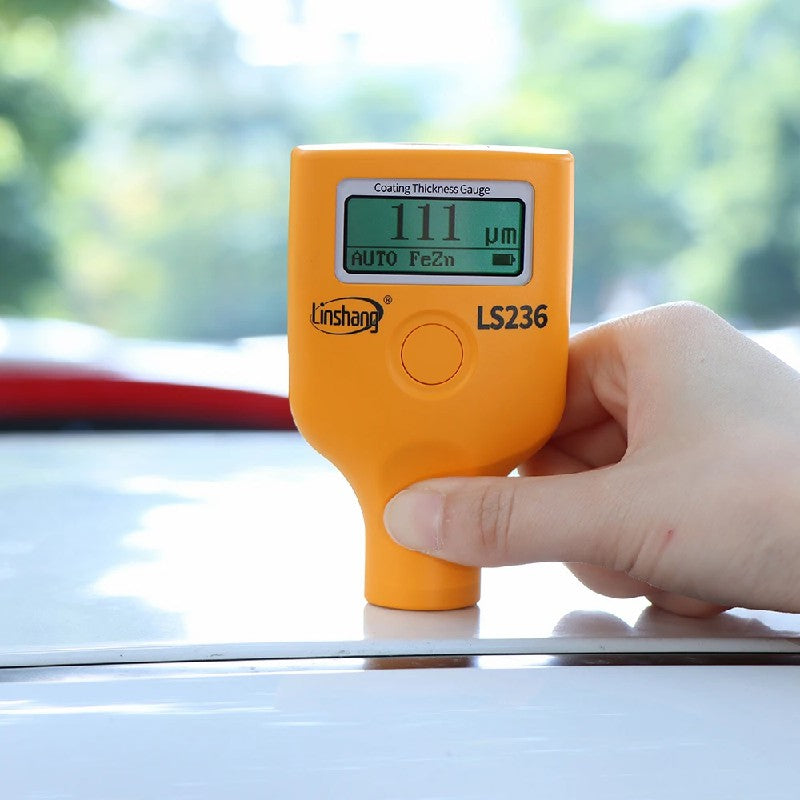

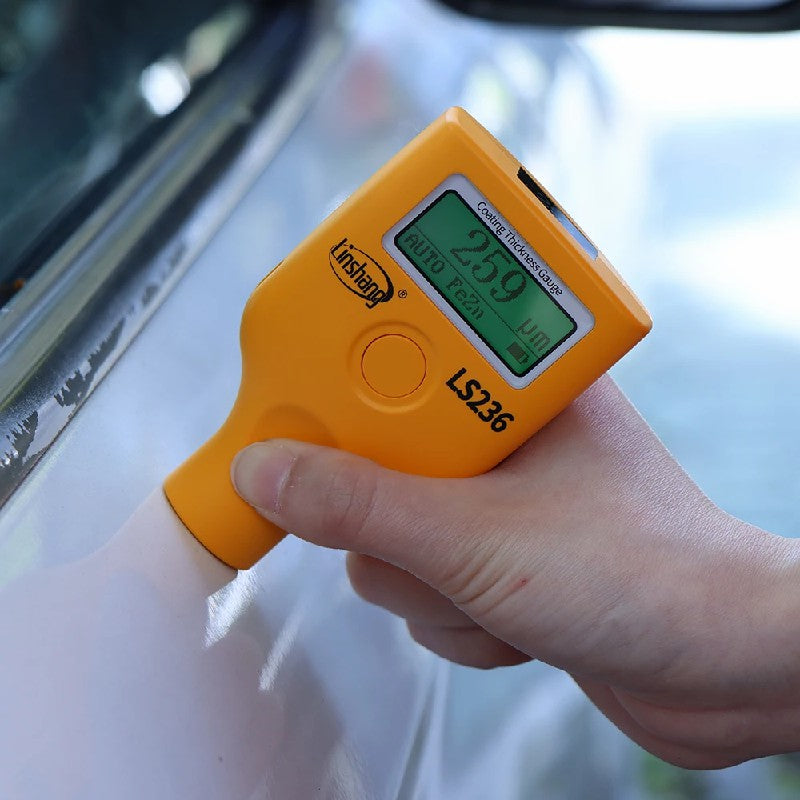

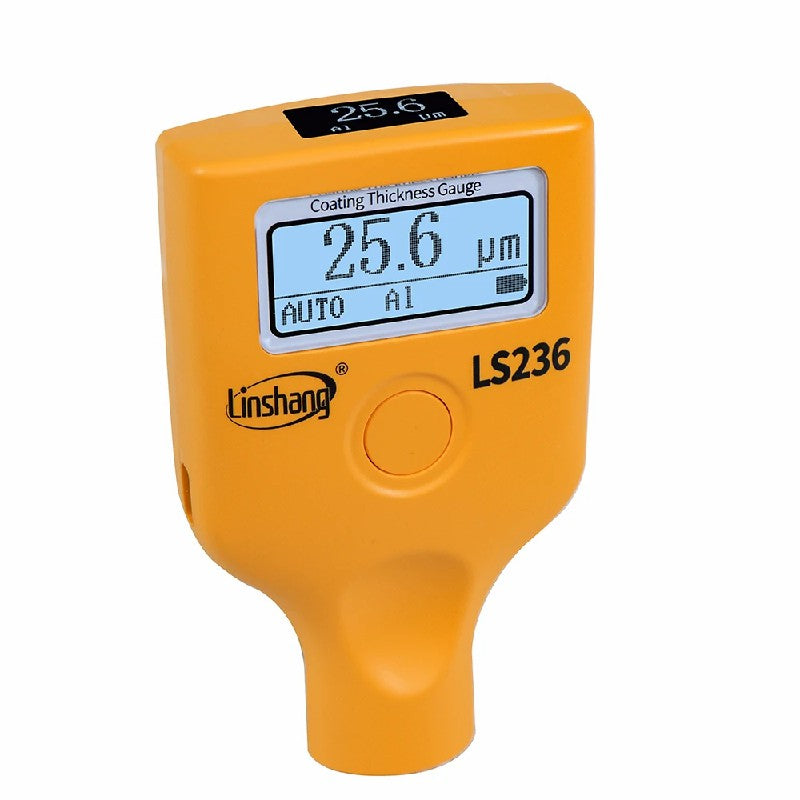

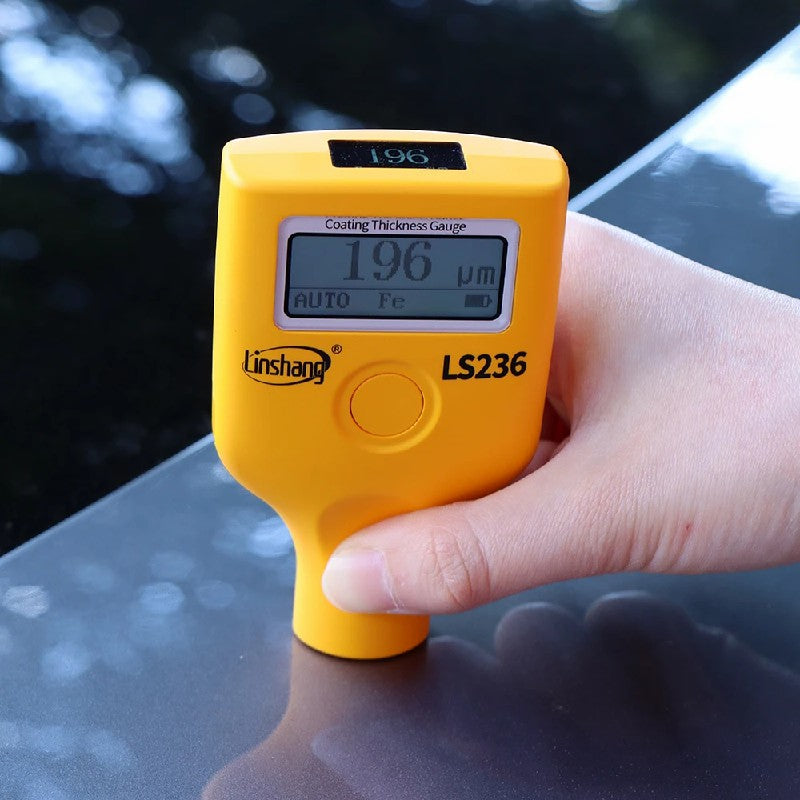

The LS236 paint film meter is specialized in automotive paint thickness testing. It is equipped with LCD and OLED low temperature resistant screen, which can be used normally in bright light and -40℃ ultra-low temperature environments. The dual screen design ensures that the user can take quick readings when measuring the car at any angle. LS236 can intelligently recognize accidental cars that have been refinished using ferrous putty. It can also quickly detect iron galvanized, iron, aluminum and non-metallic bodies. Three-color backlit display depending on the thickness to be measured. It has Bluetooth function to operate with cell phone APP.

Specifications

1. Probe tip: Ruby

2. Measuring principle: Fe: Hall Effect / Al: Eddy current

3. Probe type: Built-in integrated probe

4. Measuring range: 0.0-3500μm

5. Resolution: 0.1μm: (0μm - 99.9μm); 1μm: (100μm - 999μm); 0.01mm: (1.00mm - 3.50mm)

6. Accuracy: ≤±(3%H+2μm), H is the standard value

7. Unit: μm / mil

8. Measuring interval: 0.5s

9. Minimum measuring area: Ø = 25mm

10. Minimum curvature: Convex: 5mm / Concave:25mm

11. Minimum substrate thickness: Fe: 0.2mm / Al: 0.05mm

12. Language: 中文、English、Русский、Türkçe

13. Display: Front: 128×48 dot matrix LCD, top: 128×64 dot matrix OLED

14. Power supply: 2 pcs of 1.5V AAA alkaline battery

15. Operation temperature range : -40℃-50℃

16. Storage temperature range: -50℃-60℃

17. Gauge size: 100*60*24 mm

18. Weight (with battery): 80g

Features

1. It is equipped with LCD and OLED screens for normal use in bright light and ultra-low temperatures of -40°C.

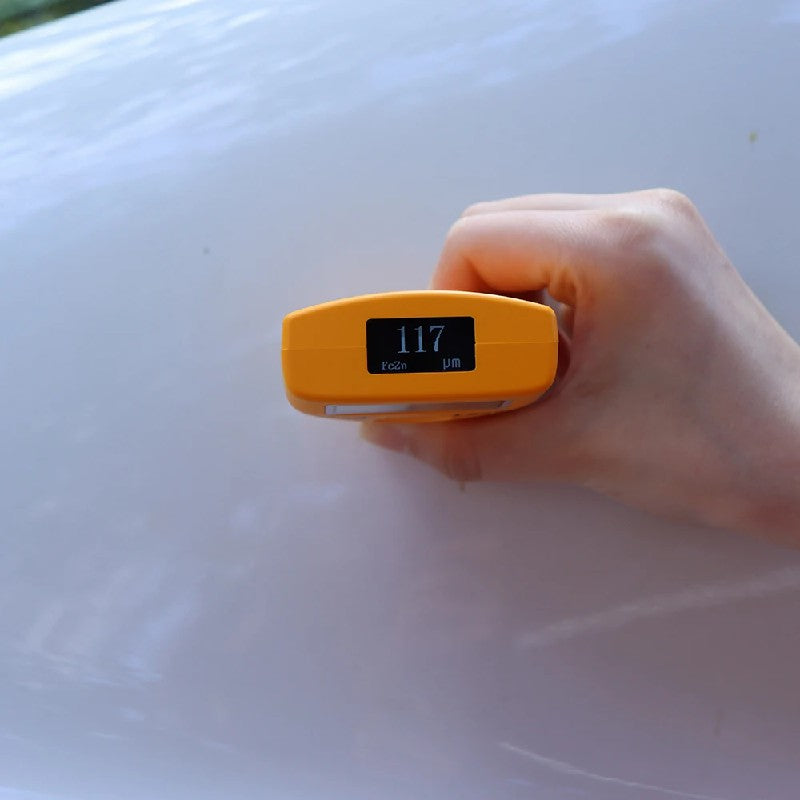

2. The dual screen design ensures that users read when measuring the car at any angle.

3. Measurement range up to 3500 μm, even for ultra-thick car paints.

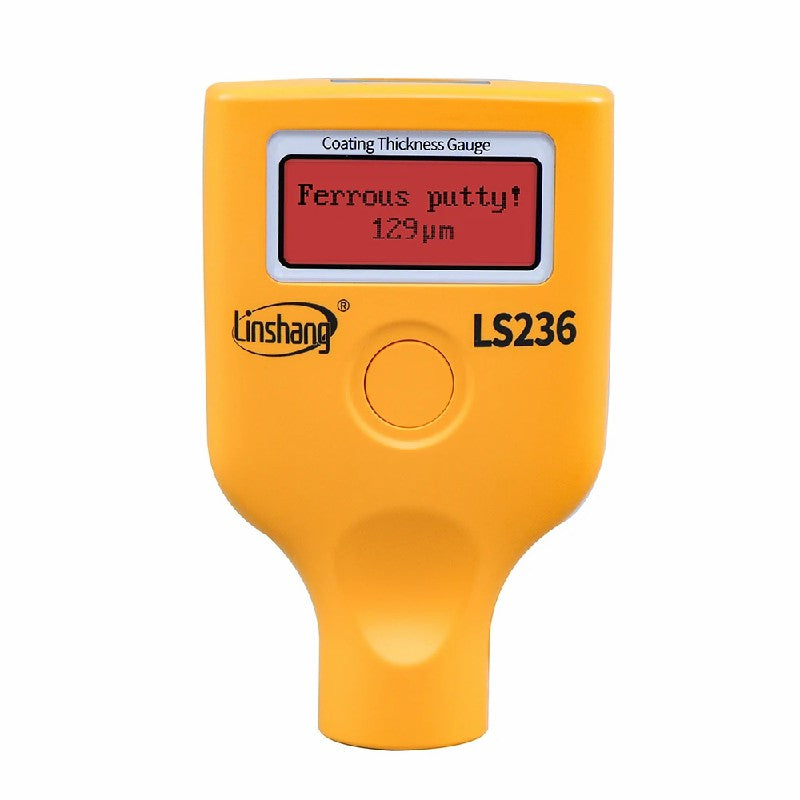

4. LS236 can recognize accidental cars that have been refinished using ferrous putty.

5. It can also quickly detect iron galvanized, iron, aluminum and non-metallic bodies.

6. Three-color backlit display depending on the thickness to be measured.

7. Equip with Bluetooth function to operate with APP.

8. It has the fast response time and takes only 0.5 seconds to complete a measurement.

9. LS236 utilizes an advanced digital probe for excellent repeatability in the measurement process.

Note

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

Please allow 1-2cm measuring deviation due to manual measurement.
