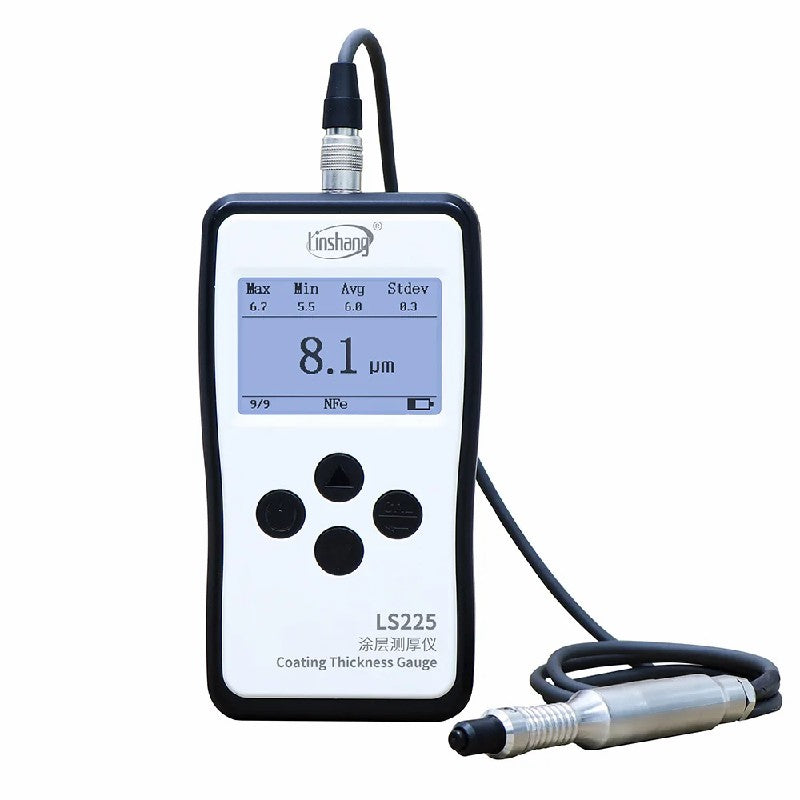

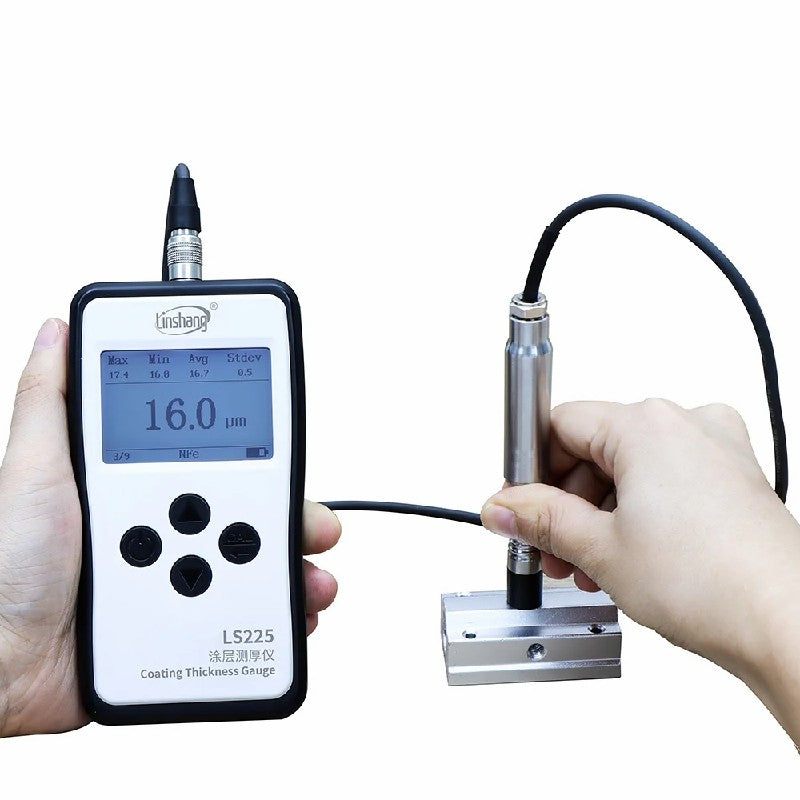

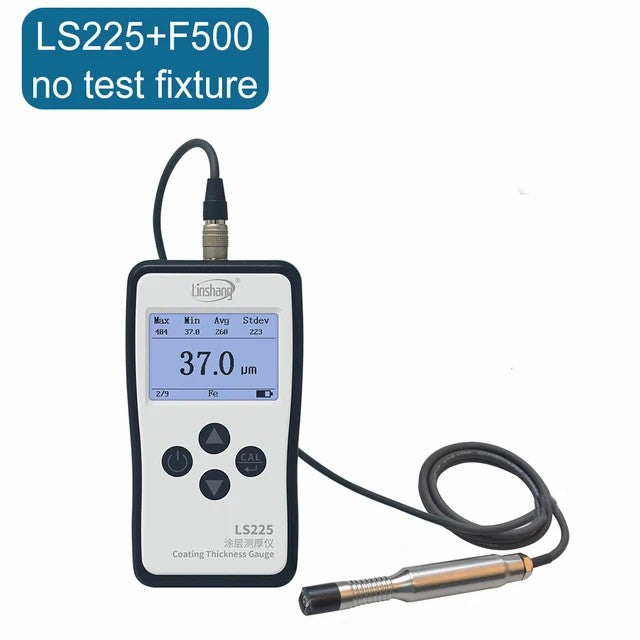

LS225+N1500 is a portable, split-type eddy current thickness gauge consisting of LS225 host and the non-ferrous probe N1500. With a probe-style design, it's ideal for measuring coating thickness on small-sized workpieces and irregular materials. For measuring ultra-thin coatings below 10μm, it's recommended to use LS225+N1500 with a test fixture for a repeatability of 0.1μm. The LS225+N1500 eddy current thickness gauge is capable of quick, non-destructive measurements of non-conductive coatings on non-ferrous metal substrates, such as anodized layers on various aluminum components or protective coatings on PCB surfaces.

Specifications

LS225 host parameters:

1. Display: 240×160 dot matrix LCD

2. Power supply: 4pcs of 1.5V AAA alkaline battery

3. Operation temperature range: 0℃-50℃

4. Storage temperature range: -20℃-60℃

5. Host size: 148*76*26 mm (L*W*H)

6. Weight (include battery): 194g

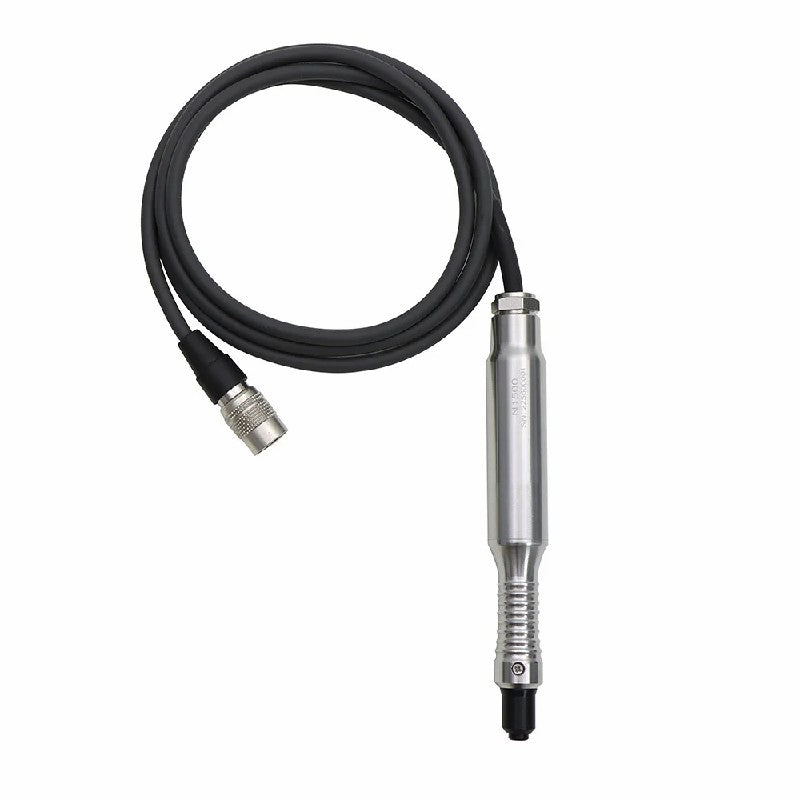

N1500 probe parameters:

1. Measuring principle: Eddy current

2.Substrate: Non-ferromagnetic metal

3. Measuring range: 0.0-1500μm

4. Resolution: 0.1μm: 0μm - 99.9μm; 1μm: 100μm - 999μm; 0.01mm: 1.00mm – 1.50mm

5. Repeatability: ≤±(0.8%H+0.1μm) Test with fixture, H is the standard value

6. Accuracy: ≤±(2%H+0.3μm) after 5 points calibration, H is the standard value

7. Unit: μm / mil

8. Measuring interval: 0.8s

9. Minimum measuring area: Ø = 7mm

10. Minimum curvature: Convex: 1.5mm / Concave: 10mm

11. Minimum substrate thickness: 0.05mm

12. Calibration: Support zero reference adjustment and 1 to 5-points calibration

13. Probe size: 110*15 mm (Without connecting cable)

14. Probe weight: 81g

Features

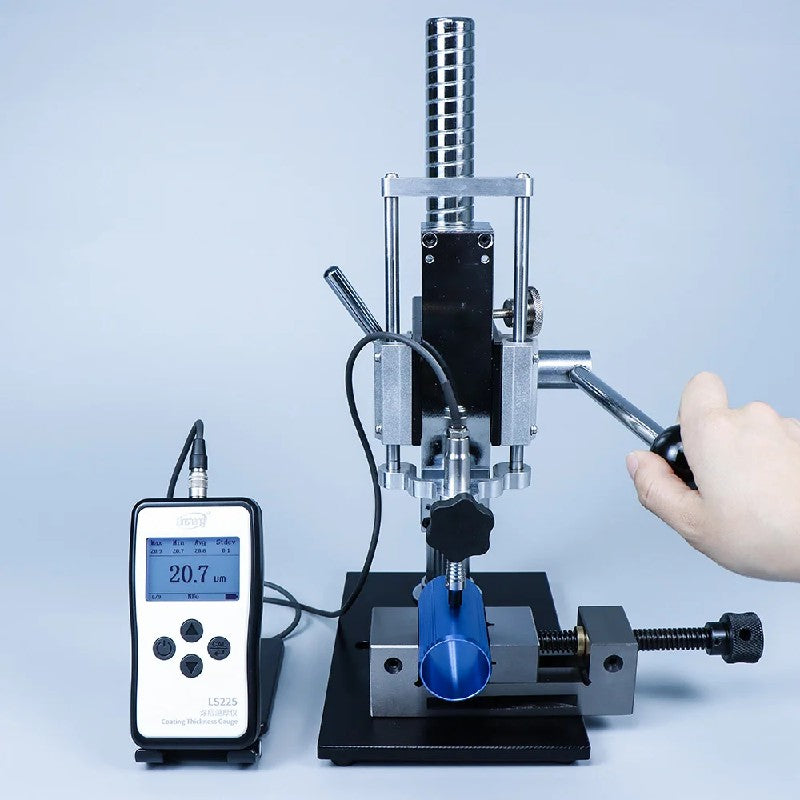

1. Accurately and consistently obtain data for coatings with thicknesses below 10μm.

2. The probe's minimum measurement area is 7 mm, making it suitable for testing small-sized materials.

3. Utilizing cutting-edge digital probes guarantees precise test results.

4. Featuring data statistics, LS225 calculates maximum, minimum, average, and standard deviation values.

5. It facilitates zero adjustment and multi-point calibration for enhanced data precision.

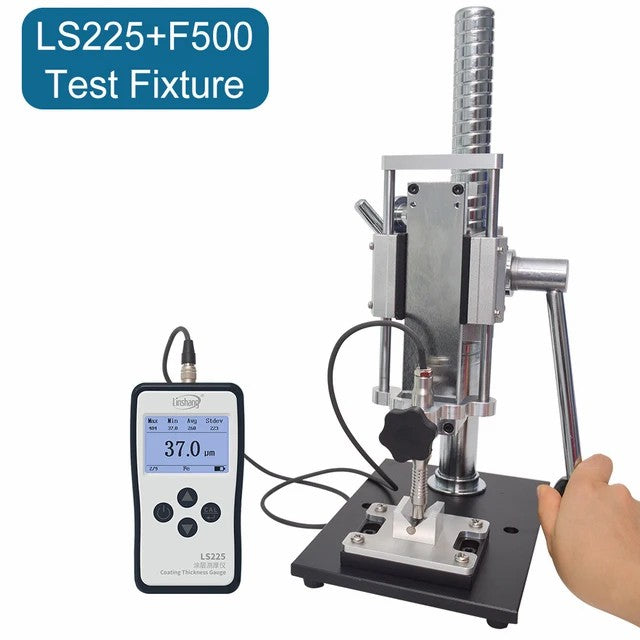

6. The option of dedicated fixtures minimizes error sources, achieving data repeatability up to 0.1μm.

7. The instrument ensures it can pass tests by authoritative metrology institutes.
