CEM CF-02CF-02S Accurate Measurementof Portable Digital Display Electronics by Automobile Current Tester

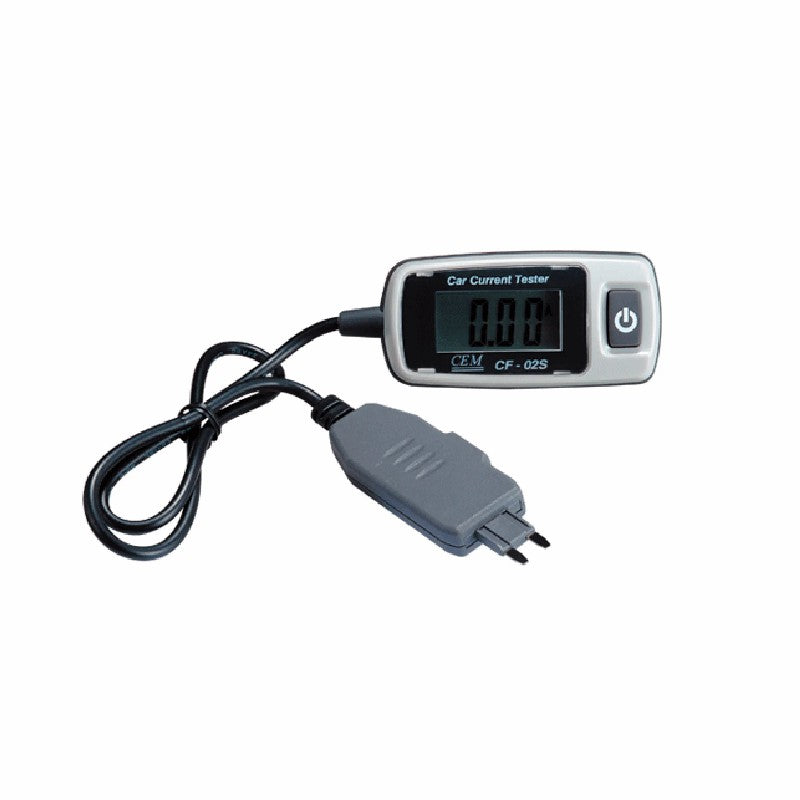

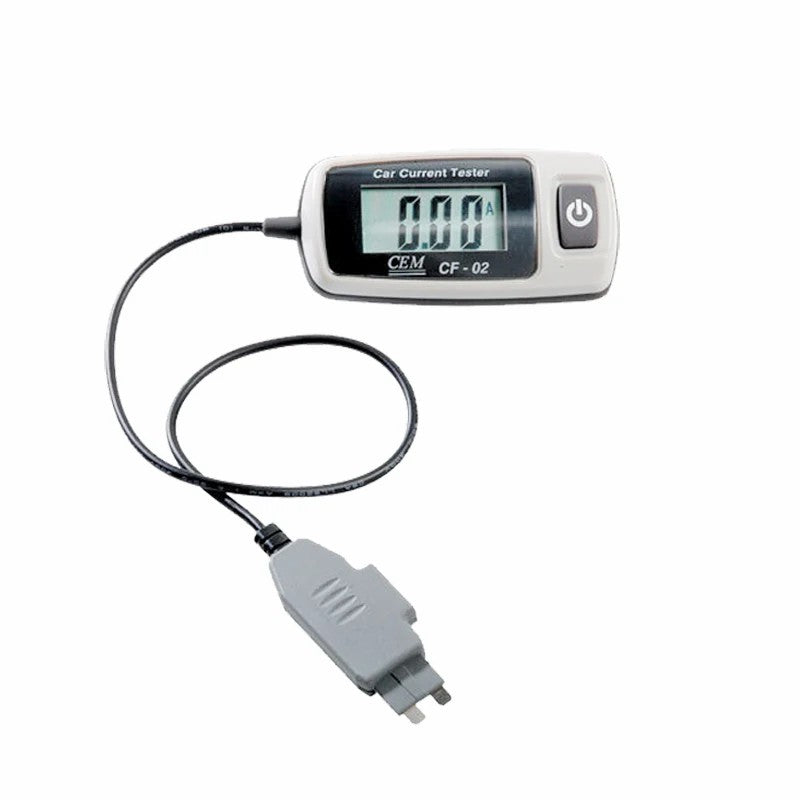

CEM CF-02 CF-02S Automobile Current Tester.
Car Fuse Adapter
Measuring adaptor for easy current detection and measurement of 200mA/20A/30A currents on blade-type be connected to any commercially available by a 4mm-banana plug/pin plug.
Size(HxWxD): CF-02S: 86mm x 37mm x 28.5mm
Weight: 68g
|
Specifications |
||||||
|
MODEL |
Fuse Type |
1999 Counts LCD Display |
Resolution |
Banana Plug |
Measuring Range |
Accuracy |
|
CF-01 |
20A/ Max-Blade |
|
|
* |
20A/48VDC/AC-10sec. |
±2.0% reading |
|
CF-01S |
20A/ Mini-Blade |
|
|
* |
20A/48VDC/AC-10sec. |
±2.0% reading |
|
CF-02 |
20A /Max-Blade |
* |
10mA |
|
20A/48VDC-10sec. |
±(2.0% reading + 2 digits) |
|
CF-02S |
20A/ Mini-Blade |
* |
10mA |
|
20A/48VDC-10sec. |
±(2.0% reading + 2 digits) |
|
CF-03 |
1A/Max-Blade |
* |
0.1mA |
|
200mA/48VDC |
±(1.5% reading + 2 digits) |
|
CF-03S |
1A/Mini-Blade |
* |
0.1mA |
|
200mA/48VDC |
±(1.5% reading + 2 digits) |
|
CF-04 |
30A/Max-Blade |
* |
100mA |
|
30A/48VDC-10sec. |
±(2.0% reading + 2 digits) |
|
CF-04S |
30A/Mini-Blade |
* |
100mA |
|
30A/48VDC-10sec. |
±(2.0% reading + 2 digits) |
|
Maximum measuring voltage: 48V max. |
||||||
|
Cable length: approx. 75cm |
||||||
