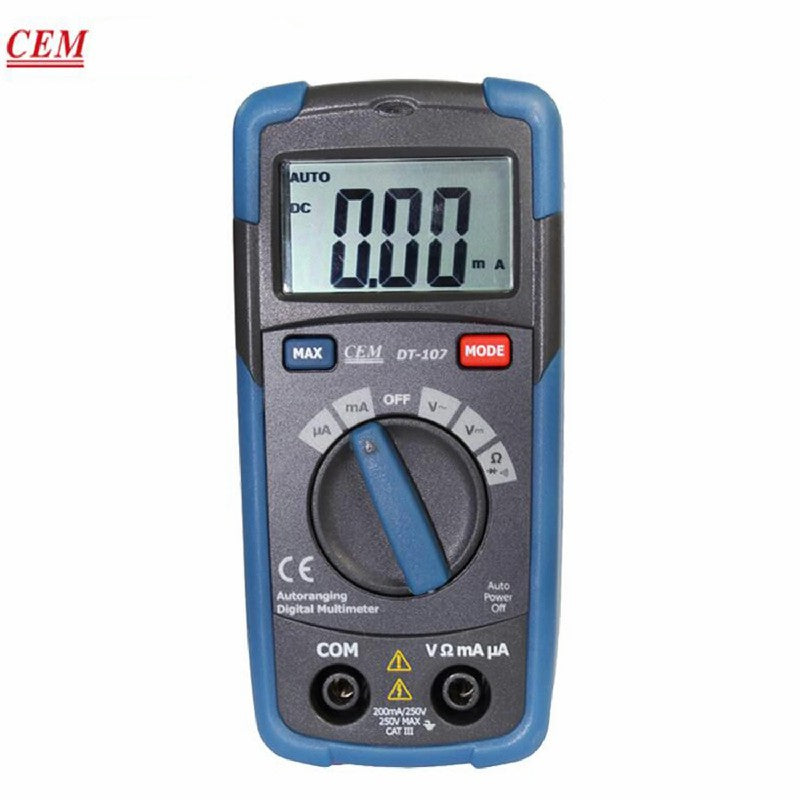

CEM DT-107 Pocket Digital Multimeter Provides Multi-function Auto Measurement 3 in 1 E-Testers Type Full Protection Pocket Type
Product SKU:
Available:
Only 0 item in stock
0 item in stock
In stock
Pre-order
Out of stock
$17.50
Want it delivered by
CEM DT-107 Pocket Digital Multimeters Provide Multifunction
|
Features |
DT-101/103 |
DT-102/105 |
DT-107 |
DT-108 |
|
2000 Counts digital display |
﹡ |
﹡ |
﹡ |
﹡ |
|
Safety design CATⅢ6000V |
-/﹡ |
-/﹡ |
﹡ |
﹡ |
|
Double molded housing |
-/﹡ |
-/﹡ |
﹡ |
﹡ |
|
Non-contact ACV detection |
-/﹡ |
-/﹡ |
﹡ |
﹡ |
|
Data Hold |
-/﹡ |
-/﹡ |
﹡ |
﹡ |
|
Auto Ranging |
|
|
﹡ |
﹡ |
|
Auto Power Off |
|
|
﹡ |
﹡ |
|
Type K temperature input |
|
|
|
﹡ |
Size (H x W x D): 101/102: 100mm x 48mm x 26mm
103/105/107/108: 108mm x 53mm x 32mm
Weight: 102g
|
Specification |
||||||
|
Function |
Max. Range |
Accuracy |
DT-101/103 |
DT-102/105 |
DT-107 |
DT-108 |
|
Voltage DC |
600V |
±0.5% |
﹡ |
﹡ |
﹡ |
﹡ |
|
Voltage AC |
600V |
±1.8% |
﹡ |
﹡ |
﹡ |
﹡ |
|
Current DC |
200mA |
±1.0% |
﹡ |
﹡ |
﹡ |
﹡ |
|
Resistance |
2MΩ |
±0.8% |
﹡ |
﹡ |
20 MΩ |
20 MΩ |
|
Temperature |
760℃ / 1400℉ |
±3.0% |
|
|
|
﹡ |
|
Diode Check |
﹡ |
﹡ |
﹡ |
﹡ |
||
|
Continuity |
|
﹡ |
﹡ |
﹡ |
||
