CEM DT-5302 Low Resistance Tester Professional Digital Grounding Resistance Tester Insulation Tester Four-Wire Milliohm Meter

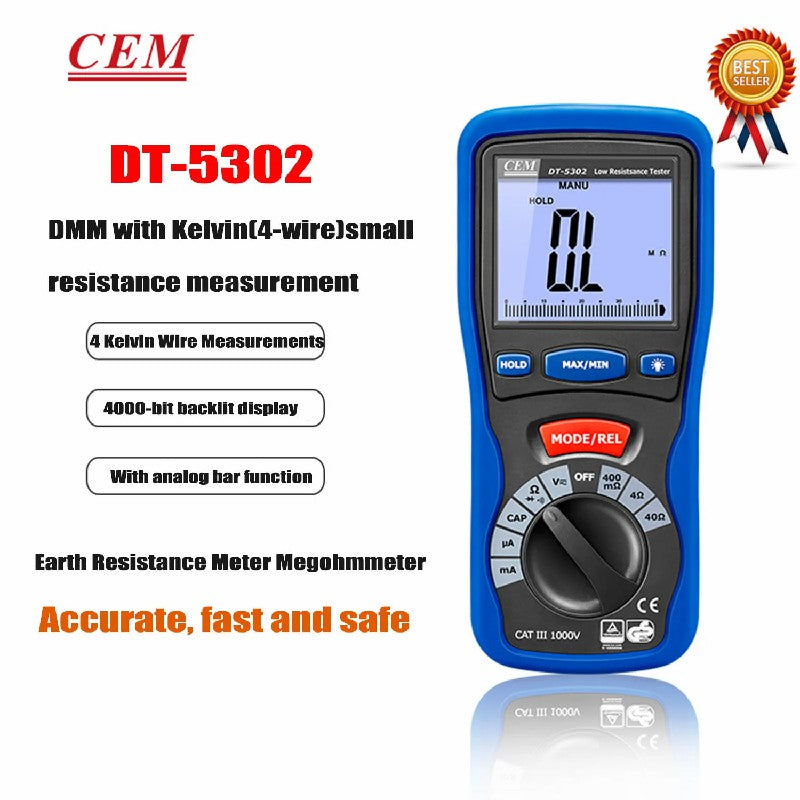

CEM DT-5302 Digital Multimeter with Kelvin(4-wire)Small Resistance Measurement
DMM with Kelvin(4-wire)small resistance measurement

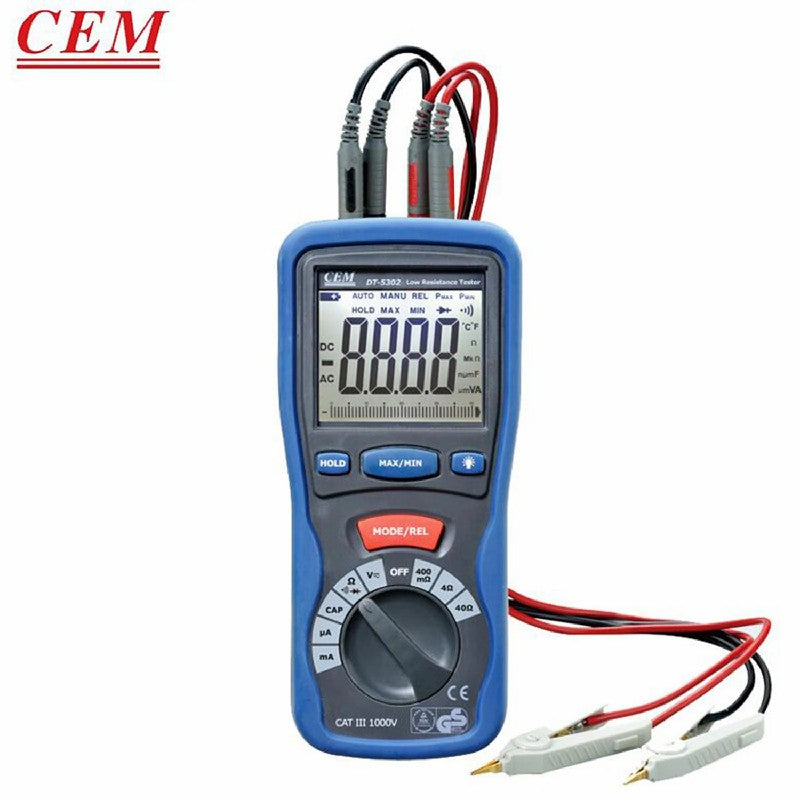

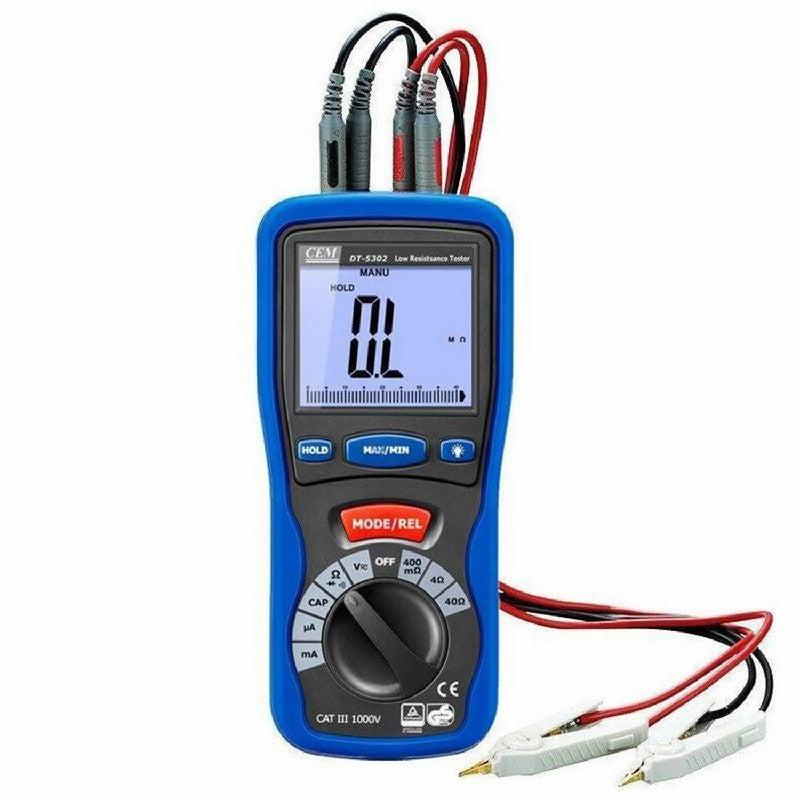

Four terminal Kelvin measurement
4000 counts 33/4 digital LCD display with backlit
High resolution to 0.1mΩ with test current to 200mA
Low battery indication
Over load protection on all ranges
|
Features |
|
High accuracy, high resolution portable Milliohm Meter or field use |
|
Digital display 4000 counts |
|
Safety design |
|
Relative zero & Data Hold |
|
MAX/MIN recording mode |
|
Auto Power Off |
|
400mΩ Low Resistance & Wide 40mF capacitance range |
|
Diode Check & Continuity Test |
Size (H x W x D): 200mm x 92mm x 50mm
Weight: 582g
|
Specifications |
DT-5302 |
|
|
Function |
Max. Range |
Basic Accuracy |
|
Low Resistance |
400mΩ, 4Ω, 40Ω |
±(1.0%+5d) |
|
Voltage DC |
1000 V |
±(1.0%+2d) |
|
Voltage AC |
1000 V |
±(1.2%+5d) |
|
Current DC |
400mA |
±(1.0%+2d) |
|
Current AC |
400mA |
±(1.2%+5d) |
|
Resistance |
40MΩ |
±(1.0%+5d) |
|
Capacitance |
40mF |
±(3.0%+10d) |
