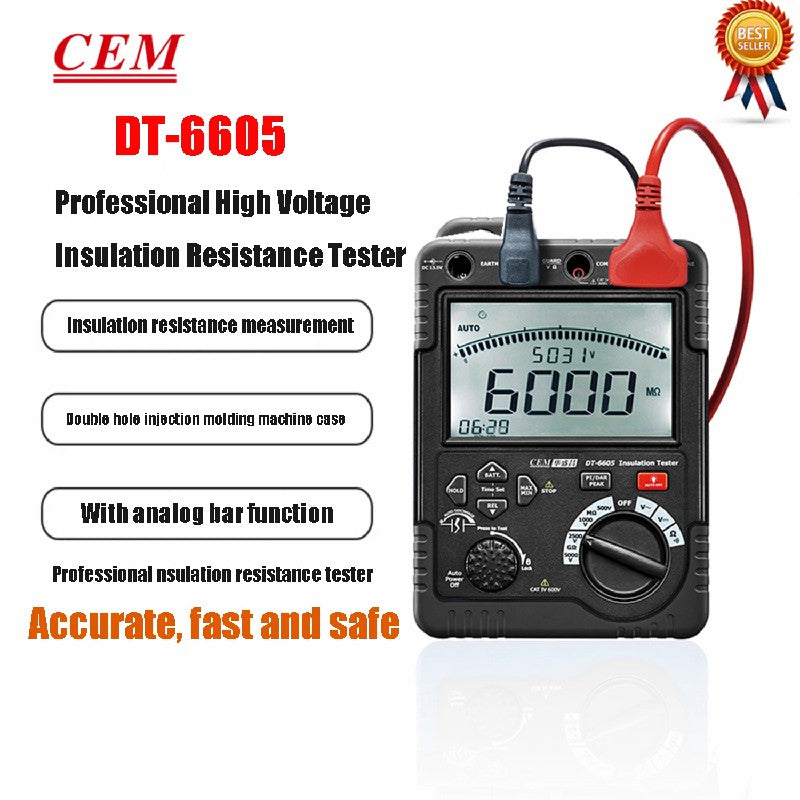

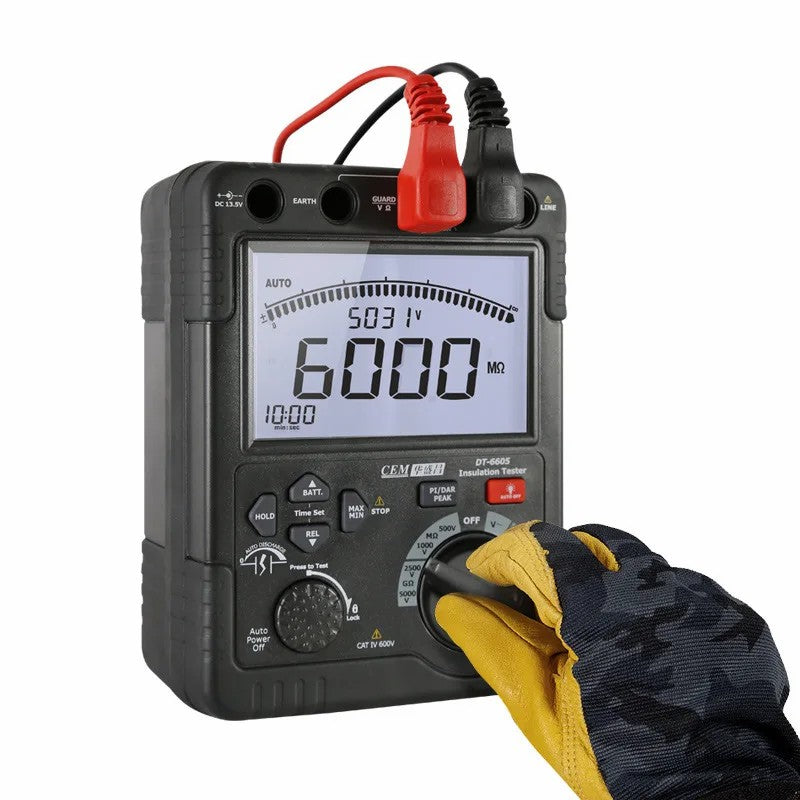

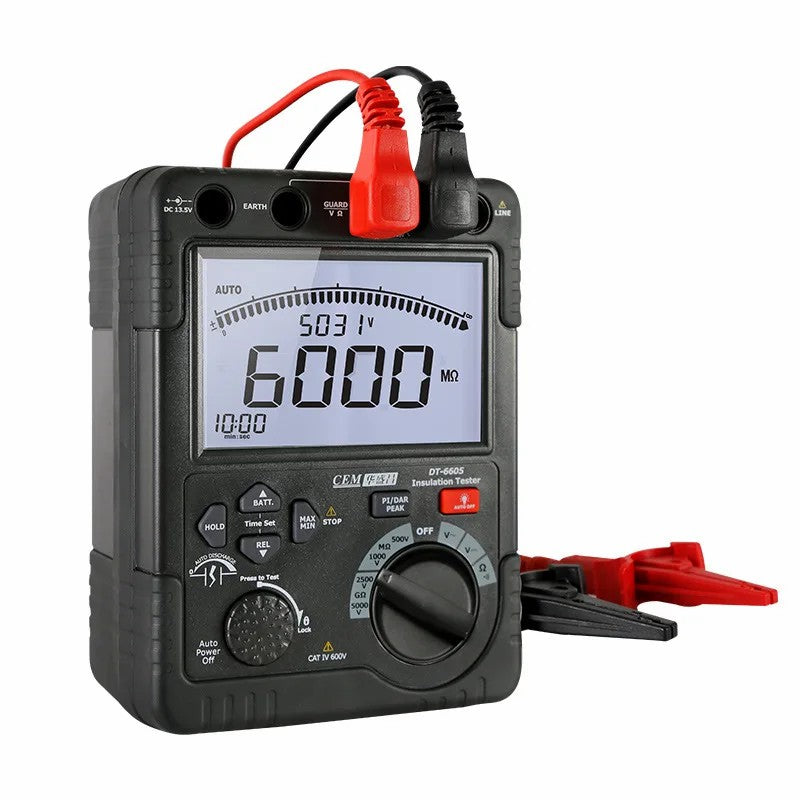

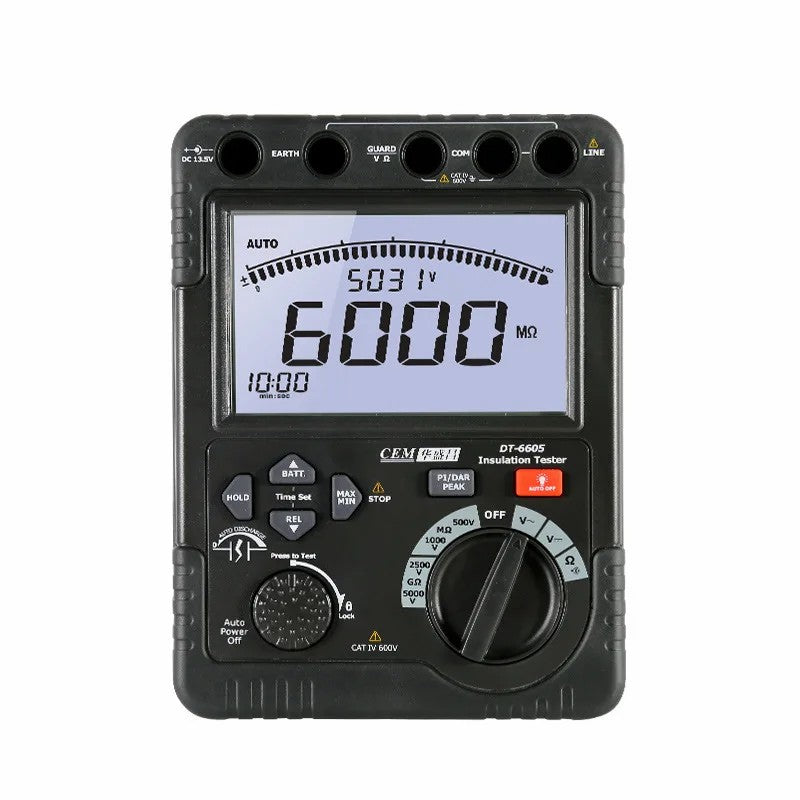

CEM DT-6605 High Voltage Insulation Resistance Tester AC DC Voltage Measurement High Precision Insulation Meter Megger
CEM DT-6605 High Voltage Insulation Tester Large 6000 Counts Digital Display
High Voltage Insulation Tester
Wide range measurements from 500V to 5000V and up to 60GΩ.
Large 6000 counts digital display with bargraph and backlight.
Polarization index measurement(PI).
Auto ranging & Timer measurement function.
Indication of output voltage and discharge voltage.
Auto-discharge function and voltage output warning function.
Auto power off and battery check.
MAX/MIN, PEAK, Relative value & Data hold functions for DC/AC voltage measurments
Safety standard IEC61010-1 CAT IV 600V
High Voltage Insulation Tester
Wide range measurements from 500V to 5000V and up to 60GΩ.
Large 6000 counts digital display with bargraph and backlight.
Polarization index measurement(PI).
Auto ranging & Timer measurement function.
Indication of output voltage and discharge voltage.
Auto-discharge function and voltage output warning function.
Auto power off and battery check.
MAX/MIN, PEAK, Relative value & Data hold functions for DC/AC voltage measurments
Safety standard IEC61010-1 CAT IV 600V
|
Specifications |
||||||
|
Function |
Insulation resistance |
Voltage |
Resistance |
|||
|
Range |
500V |
1000V |
2500V |
5000V |
AC/DCV |
|
|
Measuringrange (Auto ranging) |
0~6.000MΩ |
0~6.000MΩ |
0~60.00MΩ |
60~60.00MΩ |
0~600.0V |
0~600.0Ω |
|
Accuracy |
±5%rdg ±3dgt ; ±20% (>6GΩ or more) |
±1.5%rdg ±5dgt |
±1.5%rdg ±10dgt |
|||
|
Short Circuit Current |
1.3mA approx |
- |
||||
|
Rated test Current |
1mA-1.2mA |
1mA-1.2mA |
1mA-1.2mA |
1mA-1.2mA |
- |
|
|
Open circuit voltage |
500VDC/+20%-0% |
1000VDC/+20%-0% |
2500VDC/+20%-0% |
5000VDC/+20%-0% |
- |
|
|
Continuity check |
Buzzer sounds at 50Ω |
|||||
|
Display |
6000 Counts |
|||||
|
Current consumption |
About 1000mA (During measurement) |
25mA approx. |
||||
|
Withstand Voltage |
5320V AC for 5 seconds |
|||||
|
Safety standard |
IEC 61010-1 CAT IV 600V Pollution Degree 2 |
|||||
|
Power supply |
DC12V : R14 x 8 |
|||||
|
Dimensions |
198 ( L) x 148 (W) x 86 ( D) mm |
|||||
|
Weight |
1438g approx. |
|||||
|
Accessories |
Test leads, Instruction Manual and 120V/250V AC adaptor |
|||||
