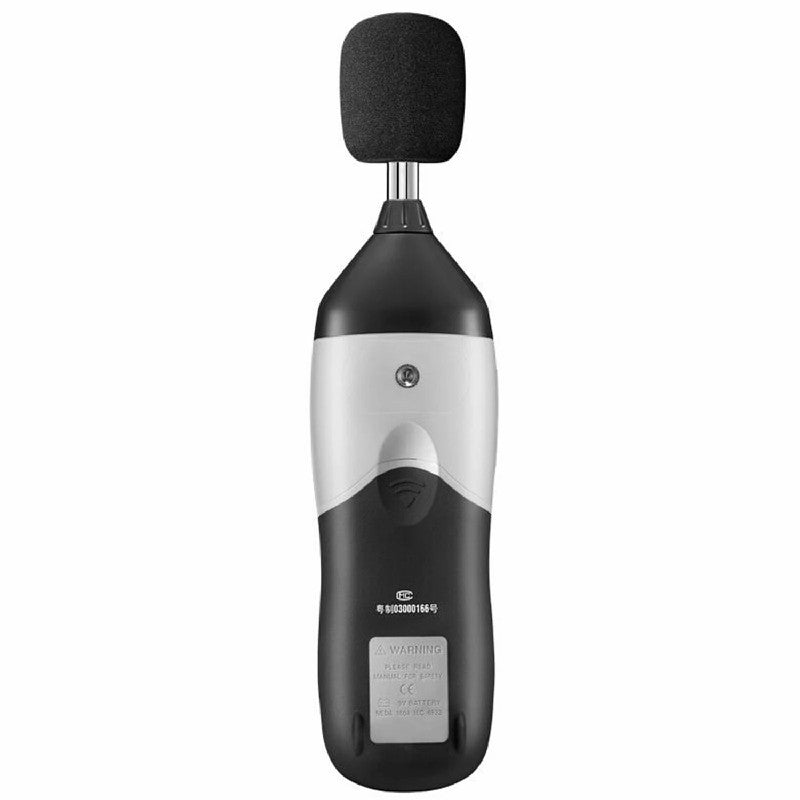

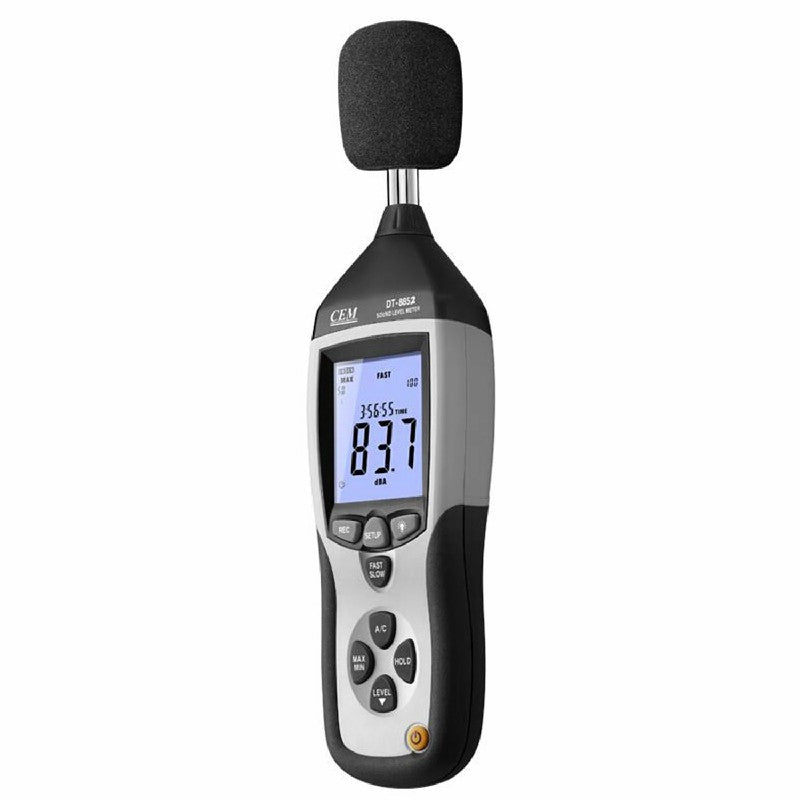

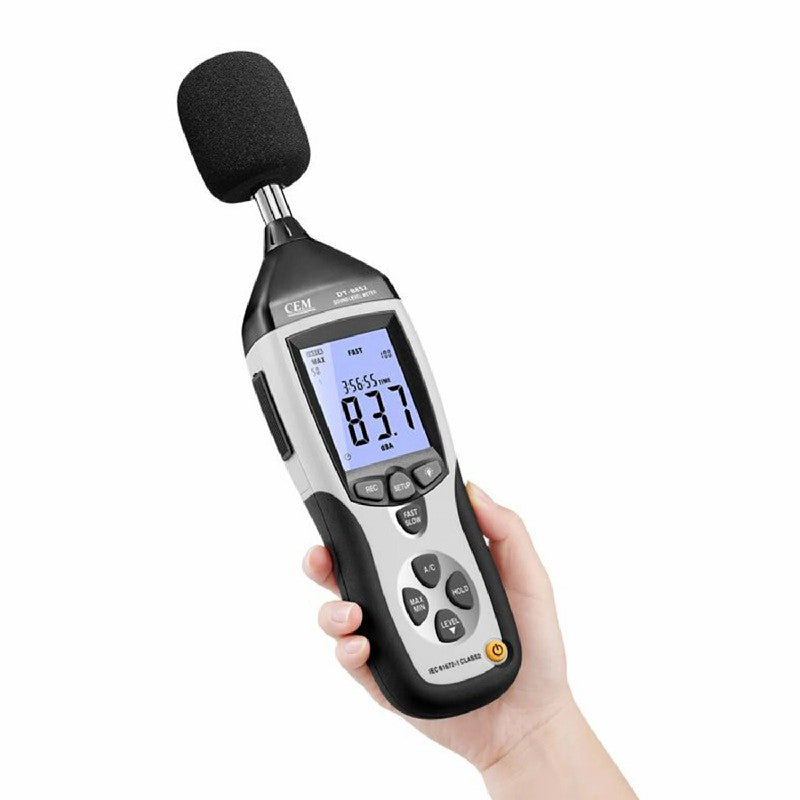

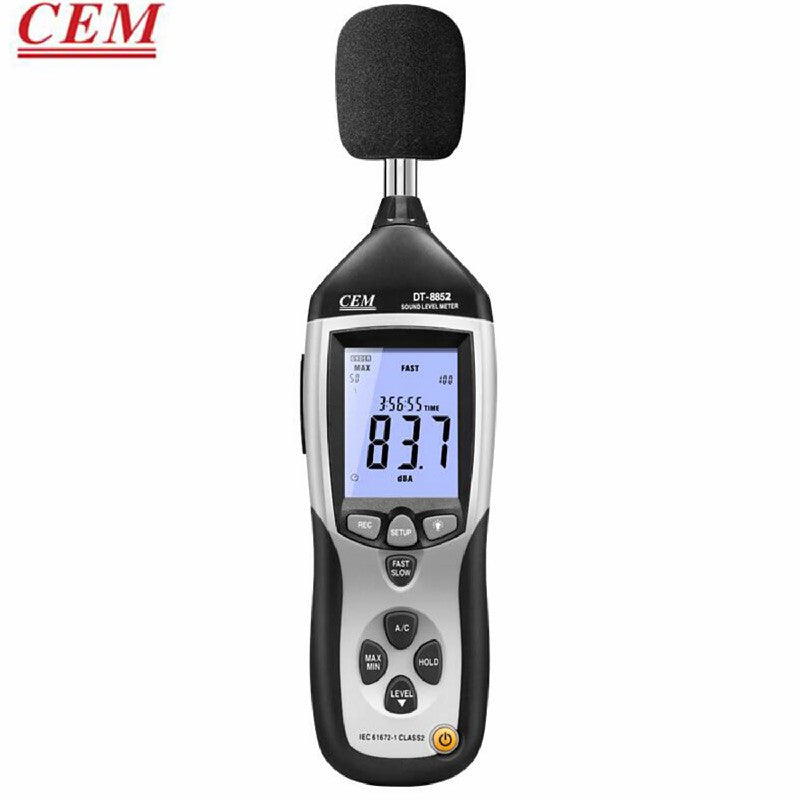

CEM DT-8852 Sound Level Meter Noise Meter Noise Environment Detection Instrument Decibel Meter Can Store USB Interface
CEM DT-8852 Digital Sound Noise dB Meter Data Logger PC USB Interface
DT-8851/8852 Sound Level Meters are designed for noise project, quality control, illness prevention & cure and all kinds of environmental sounds measurements. It is applied to the sounds measurement at factory, school, office, traffic access and household etc.
|
Features |
|
This unit confirms to the IEC61672-1 class 2 for Sound Level Meters |
|
MAX & MIN measurements |
|
Overrange display |
|
Underrange display |
|
A & C Weighting |
|
FAST & SLOW response |
|
Analog AC/DC outputs for connection to frequency analyzer or X-Y shaft recorder |
|
Datalogger function (8852) |
|
Adjustable Alarm-Levels (8852) |
|
Memory for 32700 readings (8852) |
Size(HxWxD): 278mm x 76mm x 50mm
Weight: 350g
|
Specifications |
|
|
Standard applied |
IEC61672-1 Type 2, ANSI S1.4 Type2 |
|
Accuracy |
±1.4dB |
|
Frequency range |
31.5HZ ~ 8KHZ |
|
Dynamic range |
50dB |
|
Level ranges |
LO:30dB~80dB Med:50dB~100dB |
|
Hi:80dB~130dB Auto:30dB~130dB |
|
|
Time weighting |
FAST ( 125mS ), SLOW ( 1s ) |
|
Microphone |
1/2 inch electret condenser microphone |
|
Resolution |
0.1dB |
|
Display Update |
2 times/sec |
|
Analog output |
AC/DC outputs, AC=1Vrms, DC=10mV/dB |
