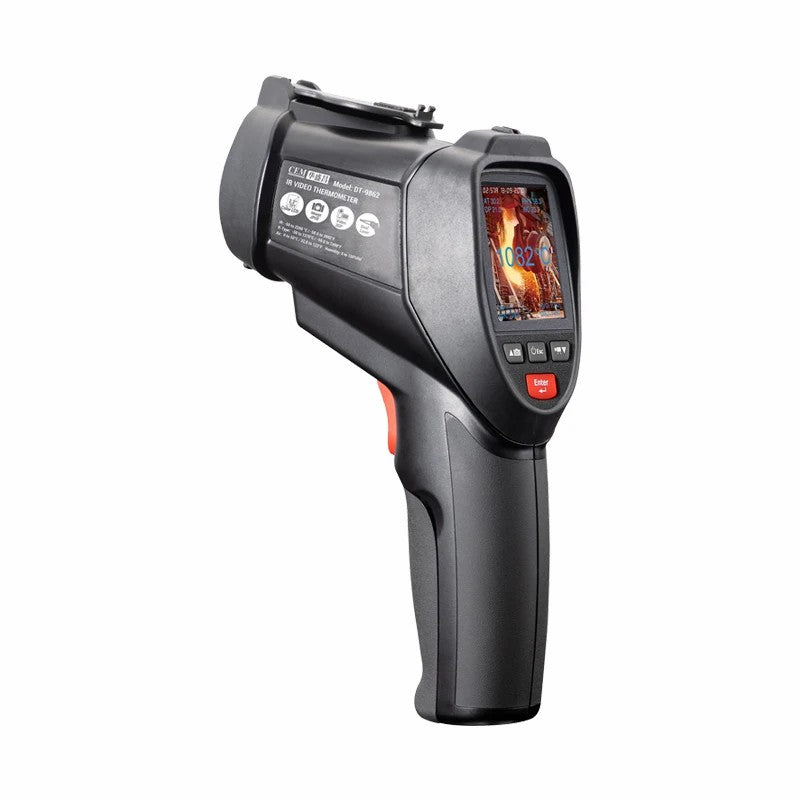

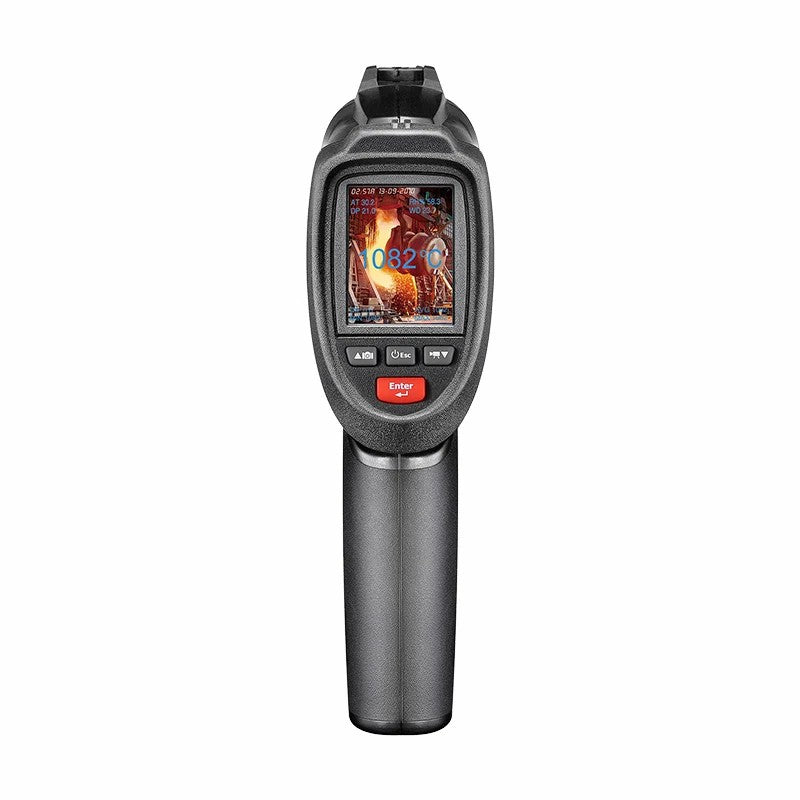

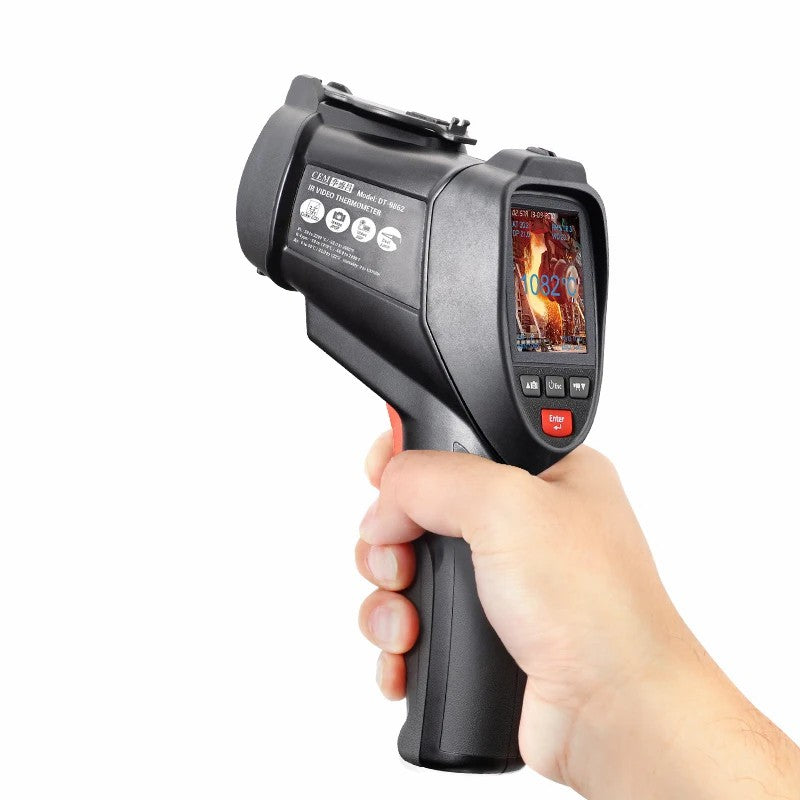

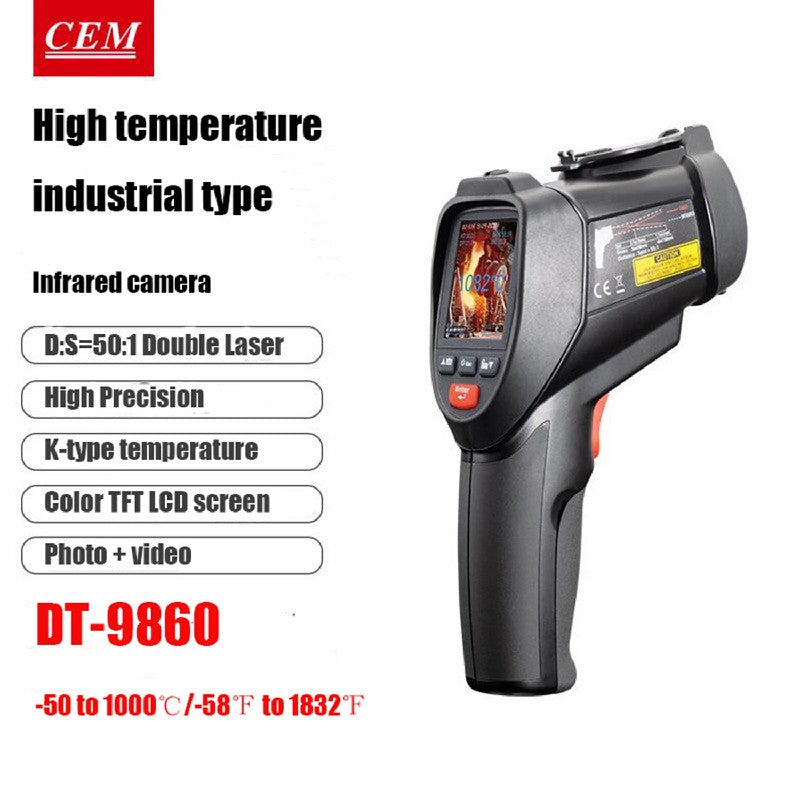

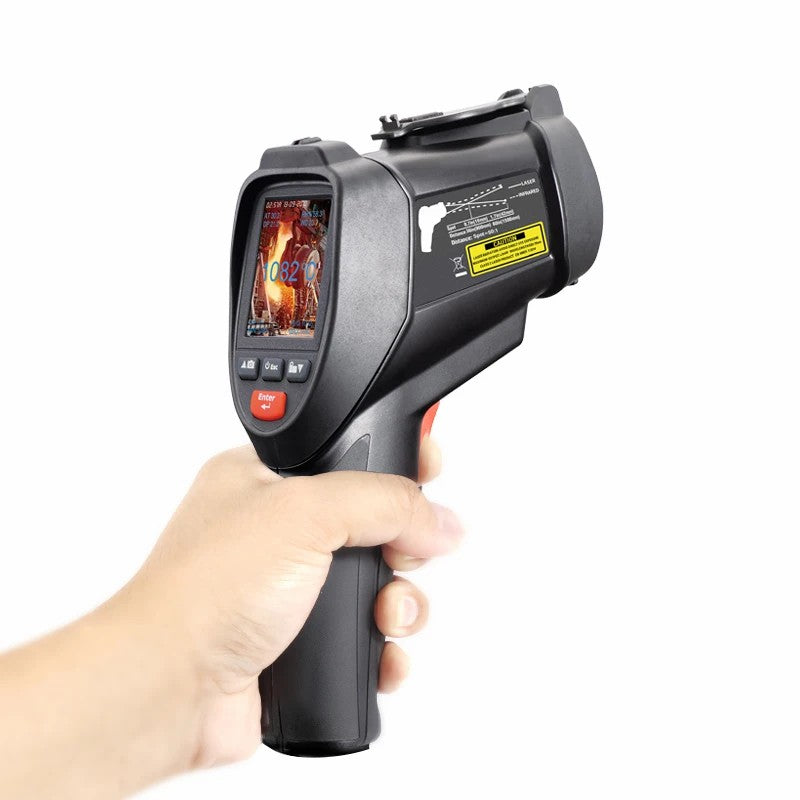

CEM DT-9860 DT-9862 Infrared Thermometer Industrial Color Screen Video Temperature Measuring Gun Photography Hermometer Camera
CEM DT-9860 DT-9862 Infrared Thermometer
Temperature in high temperature section: measuring range -50℃ to 2200℃
High optical measurement distance to object target ratio D:S=50:1
It is also equipped with a 2.2" color TFT LCD screen, video and photo storage functions
1. Support 50:1 measuring distance ratio
2. 640*480 pixels (300,000 pixels) visible light camera
3. Data recording function, maximum support for inserting 8G memory card
4. Measure air temperature and humidity
5. Measuring function of contact type K thermocouple
6. Adjustable emissivity 0.1-1.0 (step length 0.01)
7. High precision ±1%
8. Fast response time is less than 300 milliseconds
Specification
|
|
9860 |
9861 |
9862 |
|
IR Temp. Range |
-50 to 1000℃ -58℉ to 1832℉ |
-50 to 1600℃ -58℉ to 2912℉ |
-50 to 2200℃ -58℉ to 3992℉ |
|
Response Time |
Less than 300ms |
||
|
Resolution |
0.1°up 1000°, 1°over 1000° |
||
|
Basic Accuracy(IR) |
±1.0% of the reading |
||
|
Optical Resolution |
50:1 Distance to Spot Size |
||
|
Emissivity Adjustable |
0.10～1.0 Adjustable |
||
|
Type K Temp. Range |
-50℃ to 1370℃ / -58℉ to 2498℉ |
||
|
Basic Accuracy (TK) |
±0.5% of reading |
||
|
Micro SD memory card |
Max. support 8GB(not included) |
||
|
Air Temp Range |
0 to 50℃ / 32 to 122℉ |
||
|
Air Temp Basic Accuracy |
±0.5℃ / 1℉ |
||
|
Humidity Range |
±2.5%RH（20% ~80%RH） |
||
|
Dew Point Temp. Range |
0 to 50℃ / 32 to 122℉ |
||
|
Wet Bulb Temp. Range |
0 to 50℃ / 32 to 122℉ |
||
|
Size(H*W*D) |
125mm*58mm*205mm |
||
|
Weight |
494g |
||
