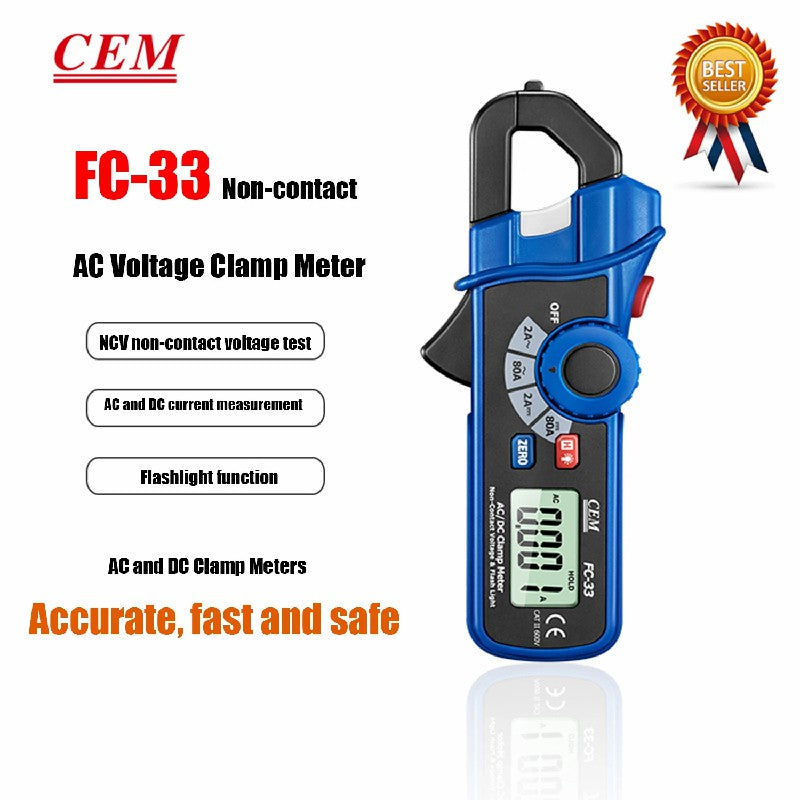

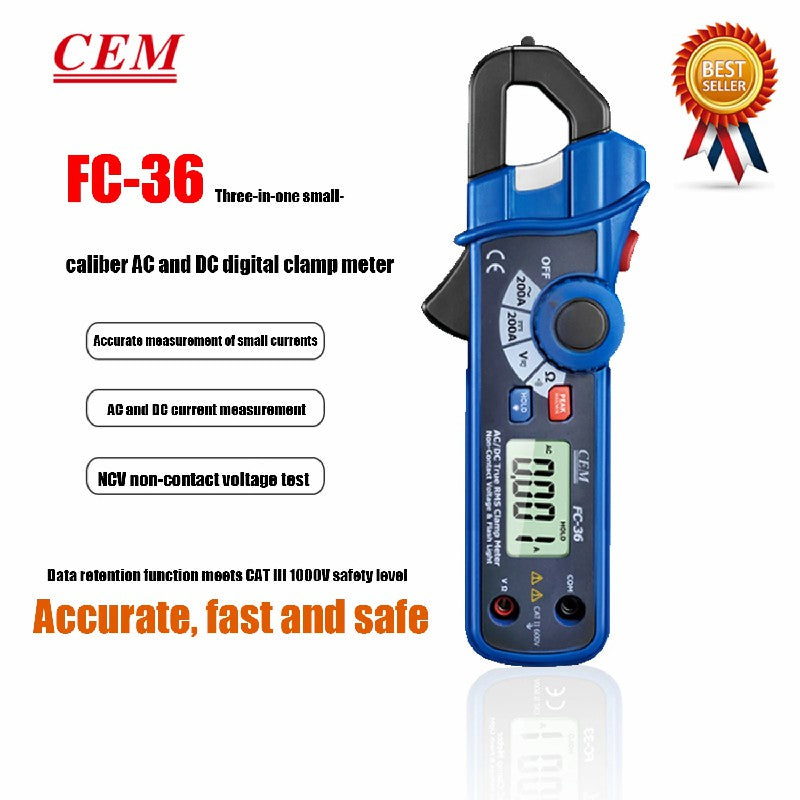

CEM FC-33 FC-36 Non-Contact Voltage Clamp Meter
3 in 1 Mini AC, AC/DC Clamp Meters

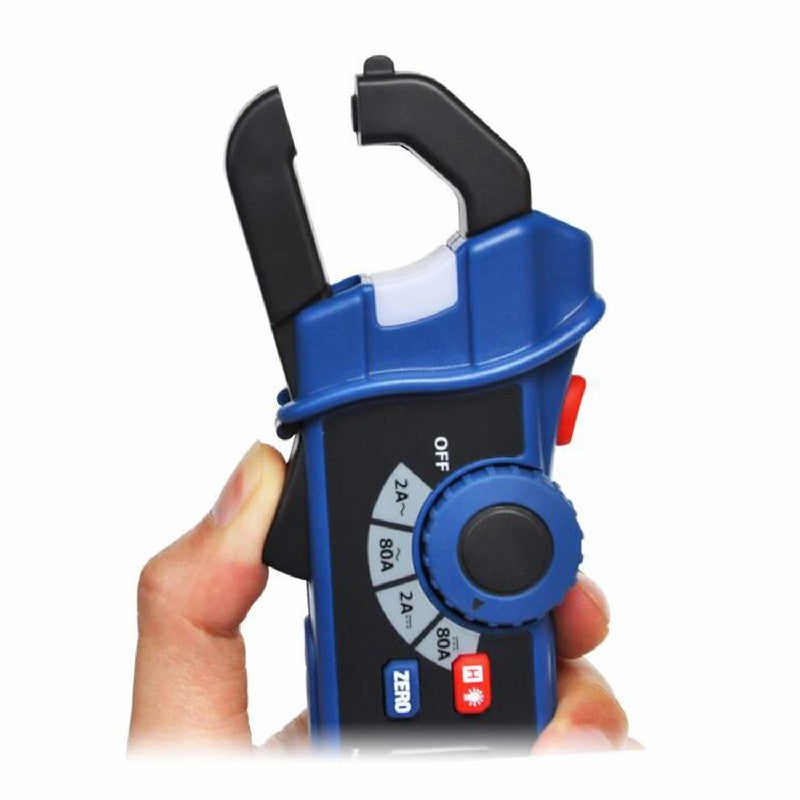

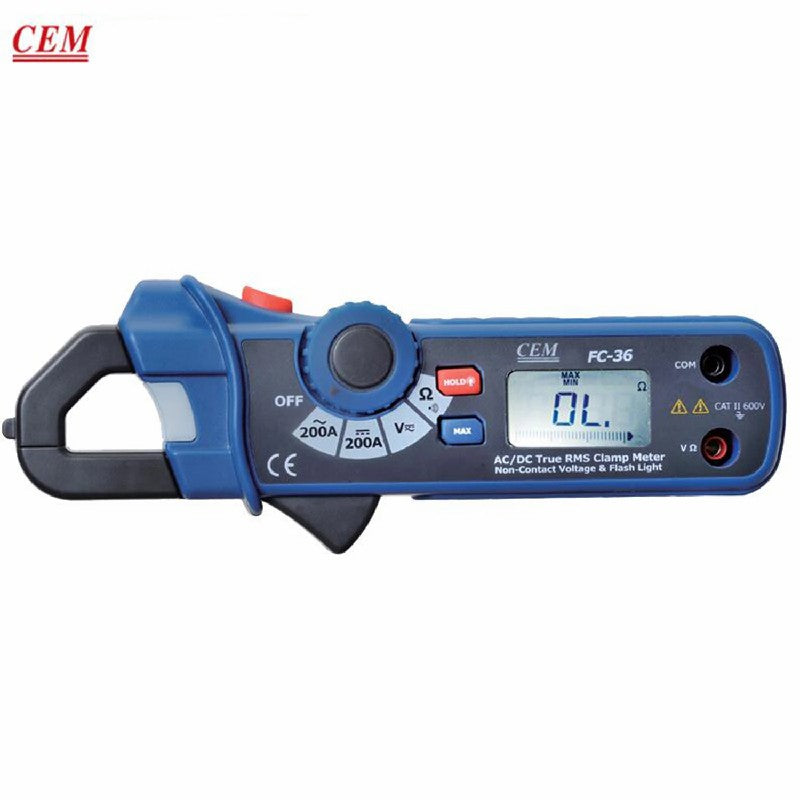

The FC-36 are designed to verify the presence of load current, Non-contact Voltage and Flashlight, etc. The small bodies and jaws fit perfectly in your hand and a large backlit display is easy to read.
|
Features |
FC-31 |
FC-32 |
FC-33 |
FC-35 |
FC-36 |
|
True RMS |
|
|
|
|
* |
|
AC/DC Voltage, Resistance, Continuity, Diode check |
|
|
|
* |
* |
|
Digital display counts |
2000 |
2400 |
2400 |
2000 |
2000-9999 |
|
0.7˝ Jaw opening |
* |
* |
* |
* |
* |
|
Non-contact Voltage detector and Flashlight |
* |
* |
* |
* |
* |
|
AC Current |
|
* |
* |
* |
* |
|
DC Current |
|
* |
* |
|
* |
|
Data Hold function |
* |
* |
* |
|
* |
|
MAX/MIN Hold function |
MAX |
|
|
MAX |
* |
|
DCA Zero function |
|
* |
* |
|
* |
|
Peak Hold function |
|
|
|
|
* |
|
Auto Power Off |
* |
* |
* |
* |
* |
|
Low battery indication |
* |
* |
* |
* |
* |
|
Backlight Display |
|
* |
* |
* |
* |
Size (H x W x D): 178mm x 65mm x 32mm
Weight: 170g
|
Specifications |
||||||||
|
Function |
Max Range |
Basic Accuracy |
Max. Resolution |
FC-31 |
FC-32 |
FC-33 |
FC-35 |
FC-36 |
|
AC Current |
2A |
±(3.0%+8d) |
1mA |
|
|
* |
|
|
|
20A |
±(3.0%+8d) |
10mA |
* |
|
|
|
|
|
|
80A |
±(3.0%+8d) |
100mA |
|
|
* |
|
|
|
|
200A |
±(3.0%+8d) |
100mA |
* |
* |
|
* |
* |
|
|
DC Current |
2A |
±(2.8%+8d) |
1mA |
|
|
* |
|
|
|
80A |
±(2.8%+8d) |
100mA |
|
|
* |
|
|
|
|
200A |
±(3.0%+8d) |
100mA |
|
* |
|
|
* |
|
|
Frequency |
40~51Hz |
±(1.2%+5d) |
0.01Hz |
|
* |
|
|
|
|
51~510Hz |
±(1.2%+3d) |
0.1Hz |
|
* |
|
|
|
|
|
0.51~1kHz |
±(1.2%+3d) |
0.001kHz |
|
* |
|
|
|
|
|
Voltage DC |
600V |
±(0.5%+1d) |
|
|
|
|
0.2-600V auto |
600.0V |
|
Voltage AC |
600V |
±(1.5%+2d) |
|
|
|
|
0.2-600V auto |
600.0V |
|
Resistance |
20MΩ |
±(3.0%+5d) |
|
|
|
|
0.2k-20MΩ auto |
999.9Ω |
|
Diode |
Open circuit voltage 1.5V, Test current 0.3mA (FC-35 only) |
|||||||
|
Continuity |
Buzzer sounds at 100Ω (FC-35/36 only) |
|||||||
|
Non-contact Voltage detection : 100~600VAC |
||||||||
