CEM LA-1015 Cable Indentifier Tester Meter Transmitter/Receiver and DMM
Cable Indentifier & DMM

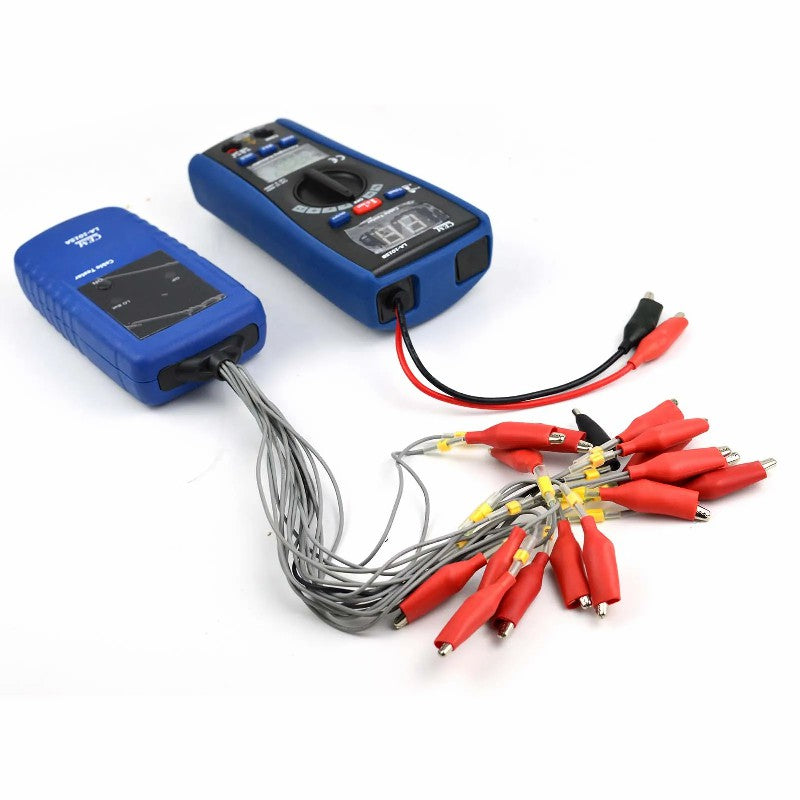

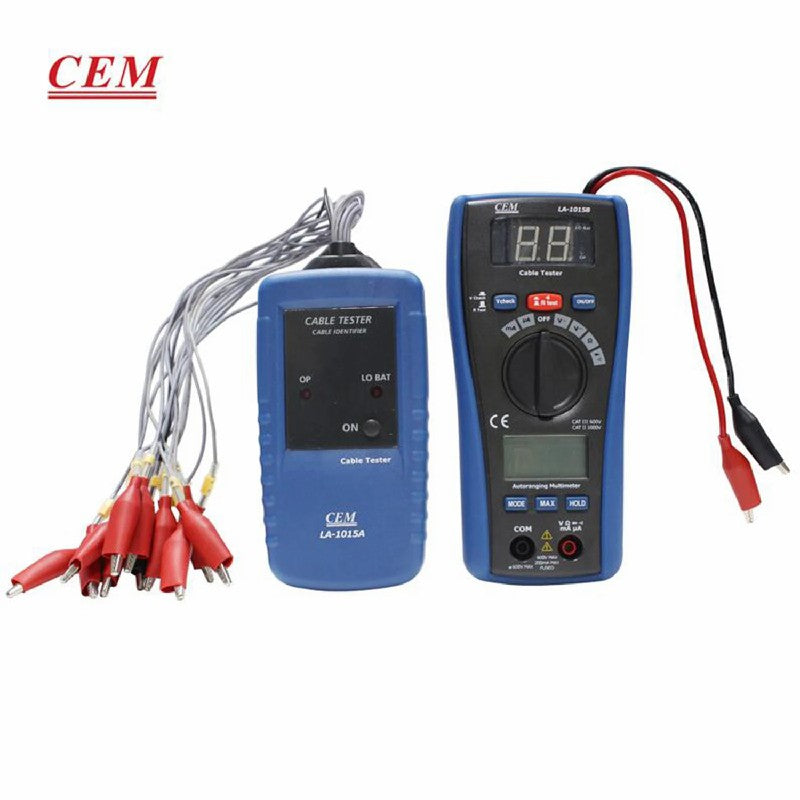

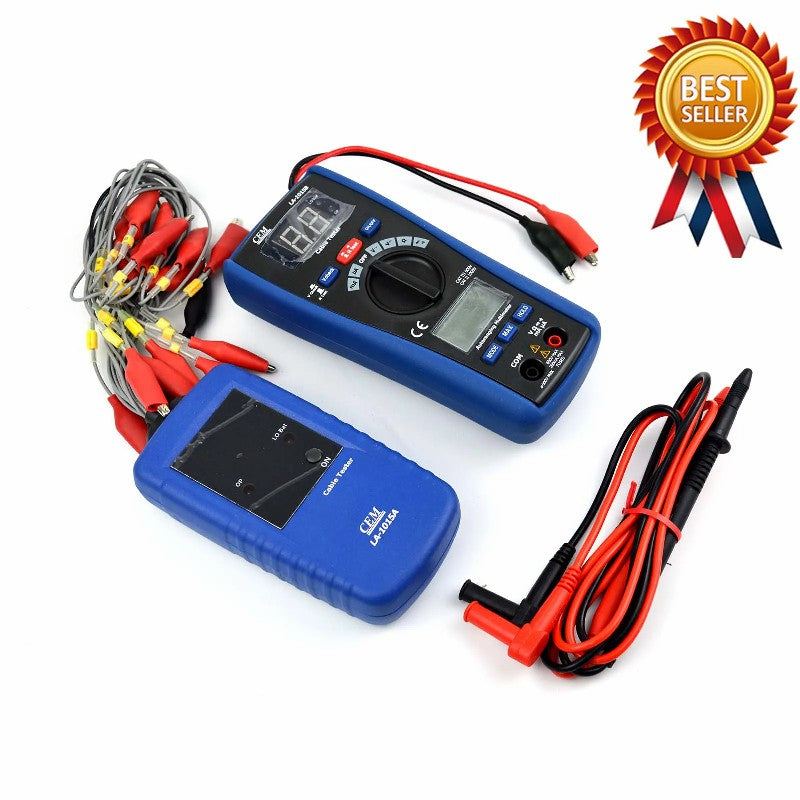

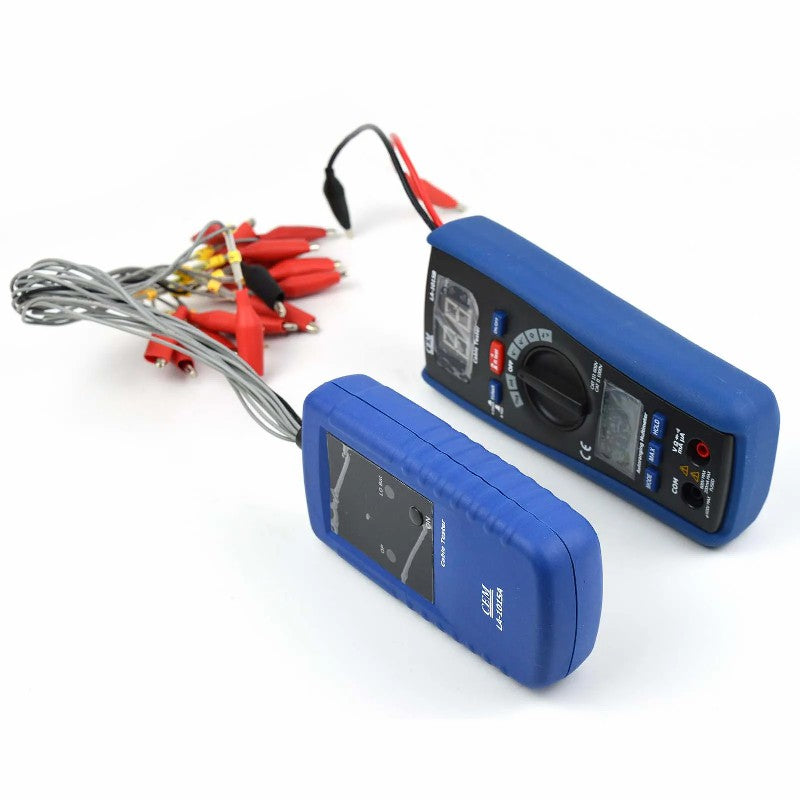

LA-1015 is a transmitter/receiver device which enables one to instantly match up ends of individual cores at either end of a multi-core cable. With the remote kit it can test cables installed far away either on wall plate or patch panel. DMM function makes it easy to measure DC/AC voltage, DC/AC current, Resistance, continuity & diode.
Size (H x W x D): 162mm x 74.5mm x 44mm
Weight: 308g
|
Specifications |
||
|
Function |
Max Range |
Basic Accuracy |
|
Voltage DC |
600V |
±0.5% |
|
Voltage AC |
600V |
±1.2% |
|
Current DC |
200mA |
±1.5% |
|
Current AC |
200mA |
±2.0% |
|
Resistance |
20MΩ |
±0.8% |
|
Continuity Test |
Beep if less than 100Ω |
|
|
Transmitter |
||
|
Display |
Two blue LED lamps |
|
|
Alligators |
17 Croc Clips - Red x 16, Black x 1 |
|
|
Cable resistance |
10K Ohm max |
|
|
Receiver |
||
|
Display |
Two digit Red LED Display |
|
|
Alligators |
2 Croc Clips - Red x 1, Black x 1 |
|
