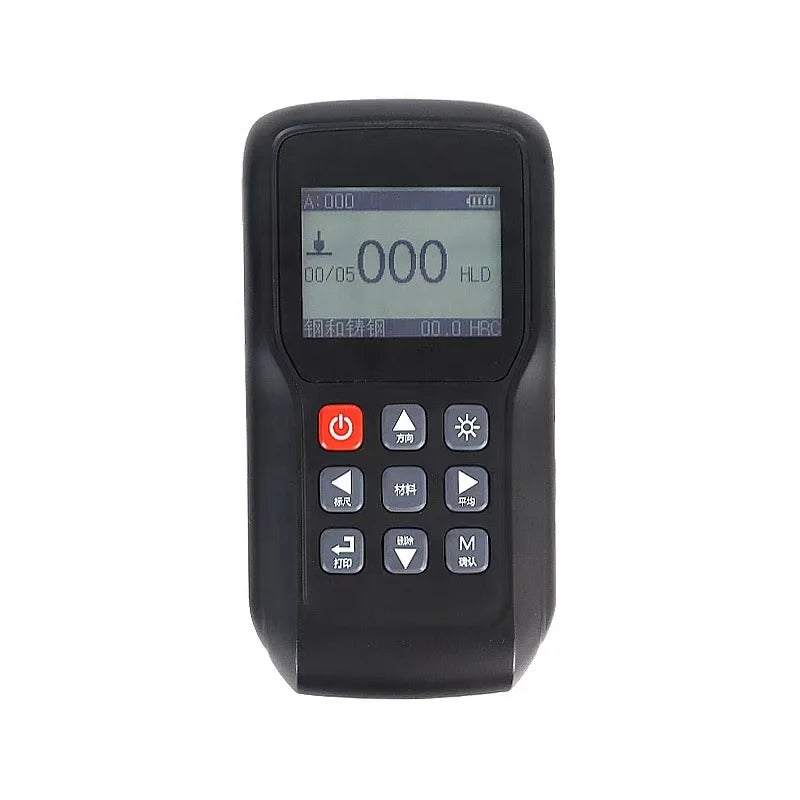

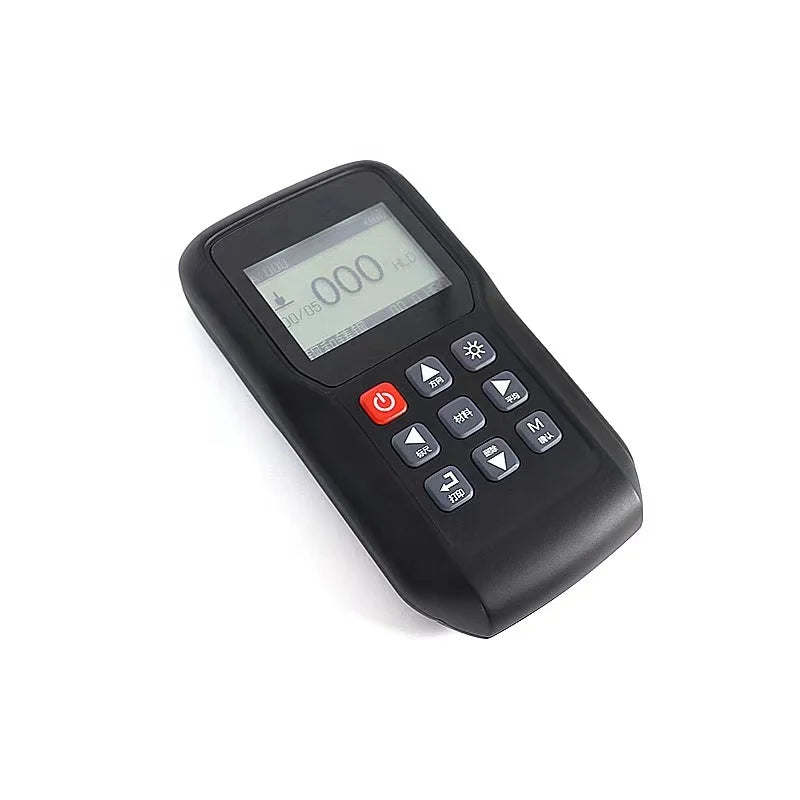

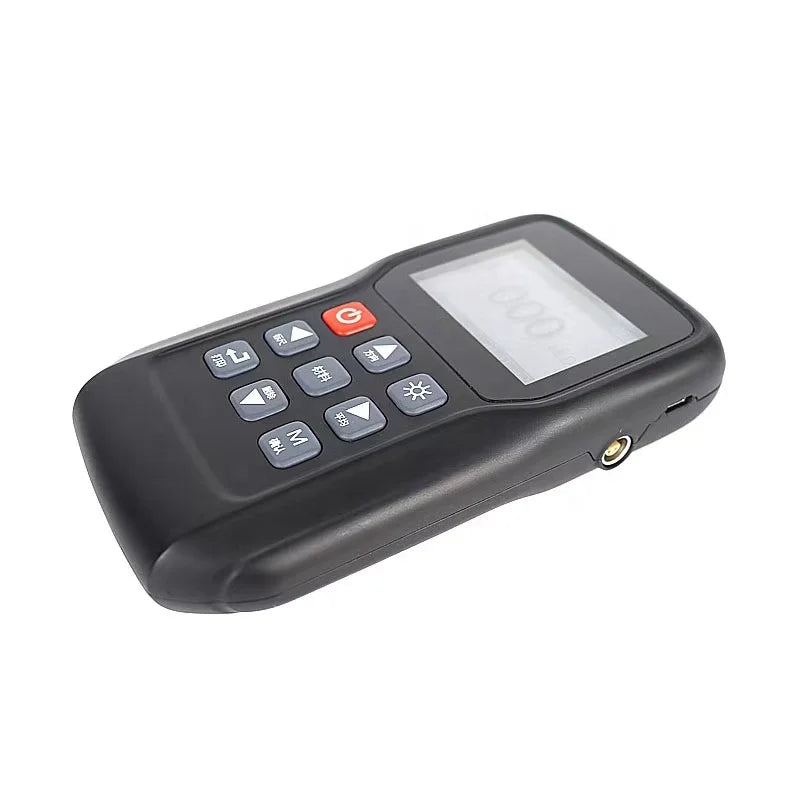

FZ212 Portable Leeb Hardness Tester HLN-100 Large LCD Display
Main feature
1.±6HLD
2.160*128 dot matrix LCD display
3. The scale automatically converts HB, HRB, HRC, HV, HSD, Mpa
4. Automatically identify the Richter sensor (D, DC, DL, C, D+15, G)
5. Measurement data direction compensation function
6.1000 pieces of stored data
7.USB data upload
8.3 AAA dry battery power supply, low power consumption design
|
Data transmission |
USB |
|
Standard configuration |
Display device (main engine), D-type impact device, standard hardness block, |
|
Weight |
230g |
|
Dimension |
154*82*26mm |
|
storage condition |
Temperature:-30~80℃ humidity:5%-95% |
|
Working condition |
Temperature :-10~40℃ humidity :20%-85% |
|
Display |
160*128 Backlit lattice LCD |
|
Model Number |
HLN-100 |
|
Product Name |
Leeb hardness tester |
|
Testing range |
150-960 HLD |
|
Accuracy |
±6 HLD |
|
Impact device |
D,DC,DL,C,D+15,G |
|
Data storage |
1000 |
|
Conversion scale |
HRC,HRB,HB,HV,HSD,Mpa |
|
Measurement direction |
The whole direction can be set |
|
Power |
4.5V(3pcs AAA dry battery) |
|
Standard |
GB/T17394,GB/T1172,ASTM A956&DIN50156 |
