CEM AT-6AT-8 Automobile Motor Tachometer Laser Tachometer High Precision Non-contact Laser Type Digital Display Meter

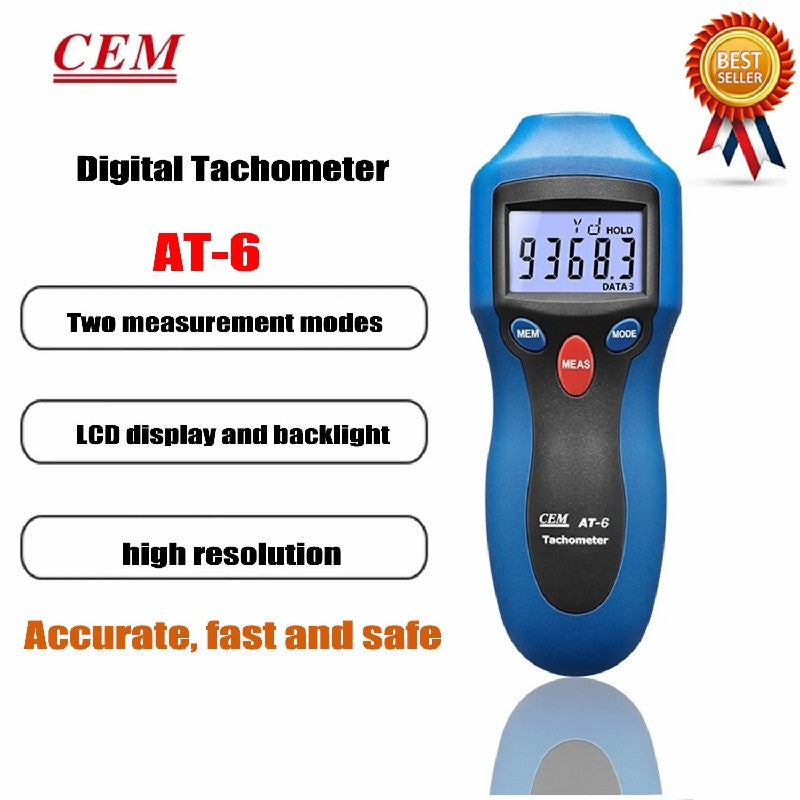

CEM AT-6 Digital Engine Tachometer Non-contact RPM TOT Measurement LCD Display
Digital Tachometer
AT-6 Digital Tachometer provides fast and accurate Non-contact RPM and TOT measurements of rotating objects. Using reflective tape on object to be measured and pointing with the laser.
|
Features |
|
|
Display |
Large 5 digit LCD display |
|
Accuracy |
±0.05%±1d |
|
RPM Range |
2 to 99,999 |
|
Max RPM Resolution |
0.1RPM |
|
TOT Range |
0-99,999 |
|
Memory |
Built-in memory recalls Max/Min/Last |
Size(HxWxD): 160mm x 60mm x 42mm
Weight: 151g

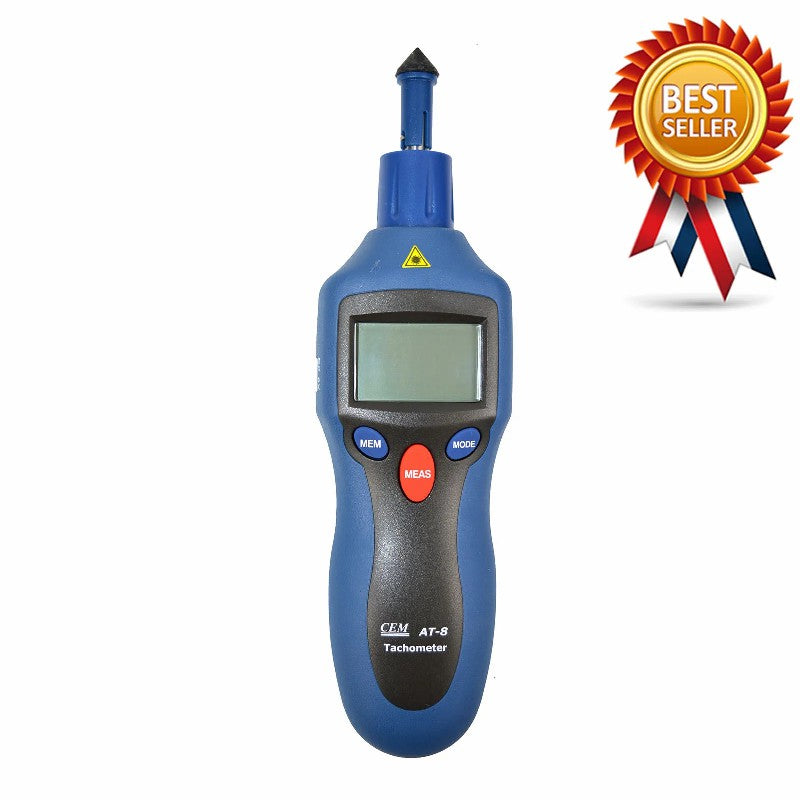

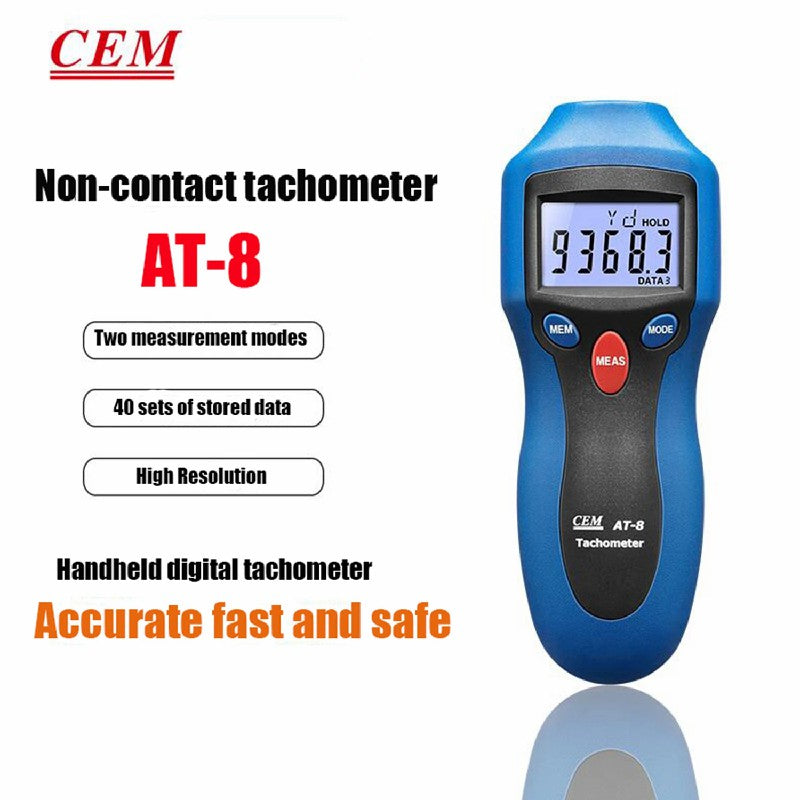

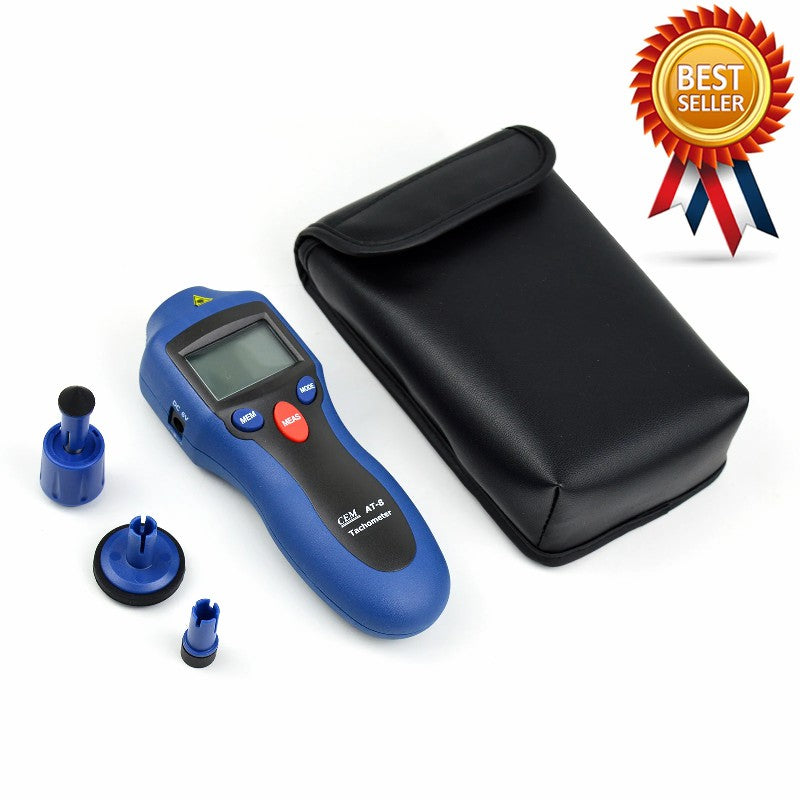

CEM AT-8 Armed with Non-contact Type Digital Car and Laser Tachometer
Contact/Non-contact Digital Tachometers
AT-8 Digital Tachometer provides fast and accurate contact and Non-contact RPM and surface speed measurements of rotating objects.
Wide measurement range and high resolution
40 readings memories
Built-in laser pointer
5 digits LCD display
Size(HxWxD): 160mm x 60mm x 42mm
Weight: 160g
|
Specifications |
||
|
|
AT-8 |
AT-10 |
|
Contact test range |
2 to 20,000 RPM |
2 to 20,000 RPM |
|
Non-contact test range |
2 to 99,999 RPM |
2 to 200,000 RPM |
|
Tot test range |
1 to 99,999 RPM |
1 to 200,000 RPM |
|
Accuracy |
±(0.05% + 1digit) |
±(0.05% + 1digit) |
|
Resolution |
0.1RPM(2 to 9999.9 RPM) |
0.001RPM to 1RPM |
|
1RPM(over 10000 RPM) |
||
|
Sampling time |
0.5 sec.(over 120 RPM) |
0.5 sec.(over 120 RPM) |
|
Detecting distance |
50 mm to 500 mm |
50 mm to 2500 mm |
|
Time base |
Quartz crystal |
Quartz crystal |
|
Power consumption |
Approx. 45mA |
Approx. 45mA |
|
Battery |
9V |
9V |
