CEM BS-150 Endoscope Pipeline Video Camera Camera Waterproof Maintenance Detector Pipeline Internal Detector
CEM BS-100 BS-150 Endoscope Pipeline

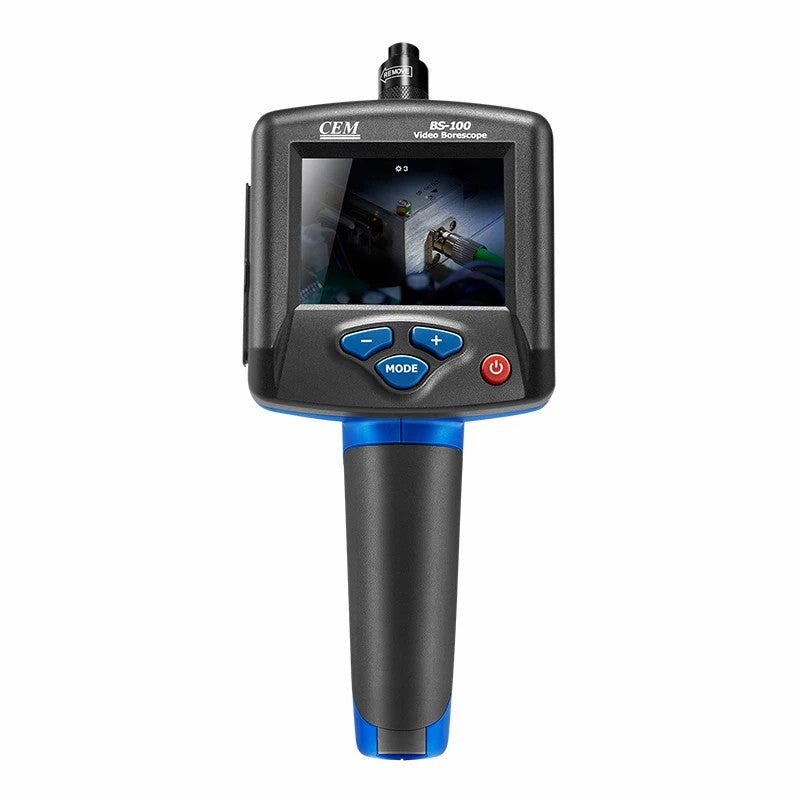

CEM BS-100 Endoscope Pipeline
Video Borescope
3.2" Color TFT LCD, supporting photo/video, time/date display and multilanguages. Video and images can also be transferred to your PC via the SD Card or USB cable(included). Waterproof(IP67) flexible gooseneck retains configured shape.
Support real-time live view
TV peripherals to support operations in other devices
Highlighted with LED to support the operation in the dark
Built-in 1800mAh lithium battery, support USB charging
Standby function to support the charge
Support rotating the image 180°from top to bottom
Flexible gooseneck imager head with waterproof
3.0" Color TFT LCD
Size(HxWxD): 240mm x 160mm x 100mm
Weight: 584g
|
Specifications |
|
|
LCD screen type |
3.0"TFT |
|
LCD Pixels |
960x240 |
|
The max number of frames(FPS) |
30FPS/S |
|
Gooseneck length |
1m(39") |
|
Camera diameter |
17mm(0.66") |
|
Viewing distance |
5cm to 15cm |
|
Viewing angle |
68° |
|
Working voltage |
Li Battery 3.7V/1800mA |
|
TV-OUT |
PAL/NTSC system |

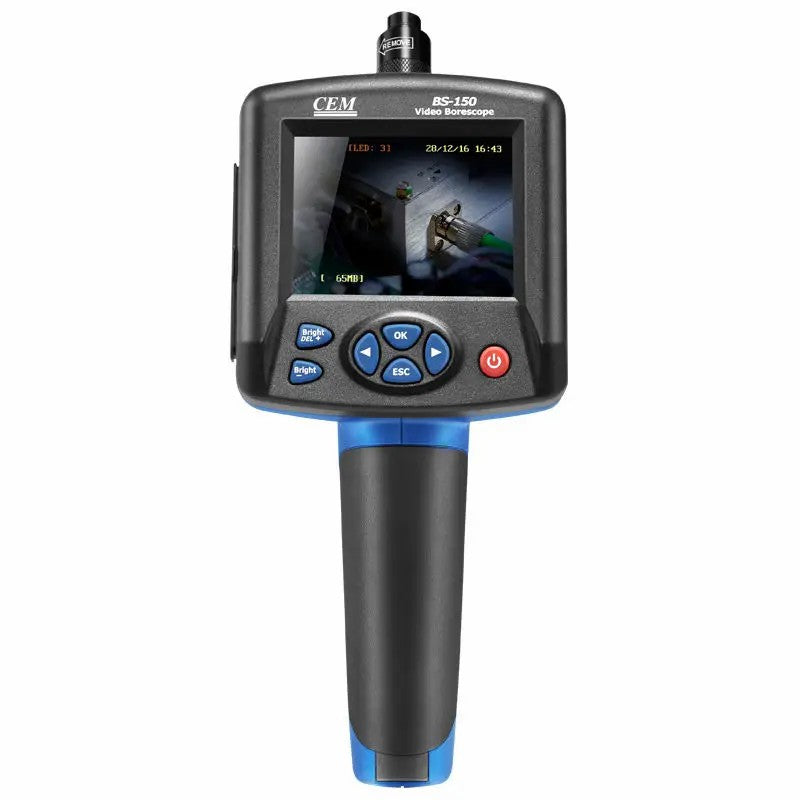

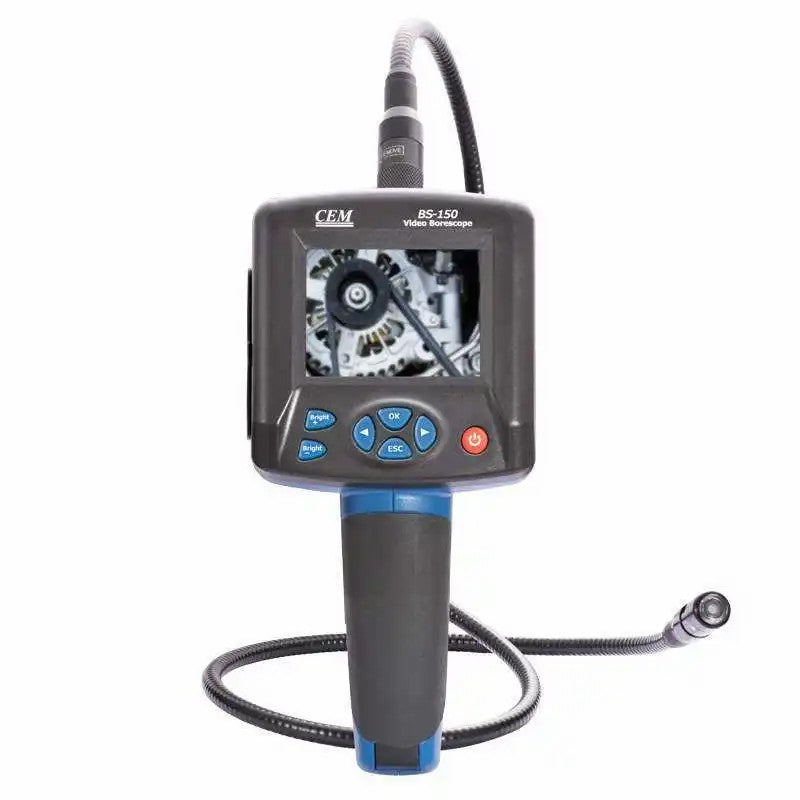

CEM BS-150 Endoscope Pipeline
Video Borescope
3.2" Color TFT LCD, supporting photo/video, time/date display and multilanguages. Video and images can also be transferred to your PC via the SD Card or USB cable(included). Waterproof(IP67) flexible gooseneck retains configured shape.
Size(HxWxD): 240mm x 160mm x 100mm
Weight: 584g
|
Specifications |
|
|
|
|
|
BS-150 |
BS-150B |
BS-151 |
|
LCD screen type |
3.2"TFT |
3.2"TFT |
3.5"TFT |
|
LCD Pixels |
320×240 |
||
|
The max number of frames(FPS) |
30FPS/S |
||
|
Picture format from the camera |
JPG(640x480) |
||
|
Camera video format |
3GP |
AVI(720x240) |
MP4(640x480) |
|
Gooseneck length |
1m(39") |
||
|
Camera diameter |
17mm(0.66") |
||
|
Viewing distance |
5cm to 15cm |
||
|
Viewing angle |
68° |
||
|
Zoom |
|
|
2.0X |
|
Rotation |
|
Mirror 180° |
90° |
|
SD card |
Max 8GB |
2GB/Max 8GB |
|
|
Working voltage |
Li Battery 3.7V/1800mA |
||
|
TV-OUT |
PAL/ NTSC |
NTSC |
PAL/ NTSC |
|
Language |
Support English, French, German, Spanish |
||
