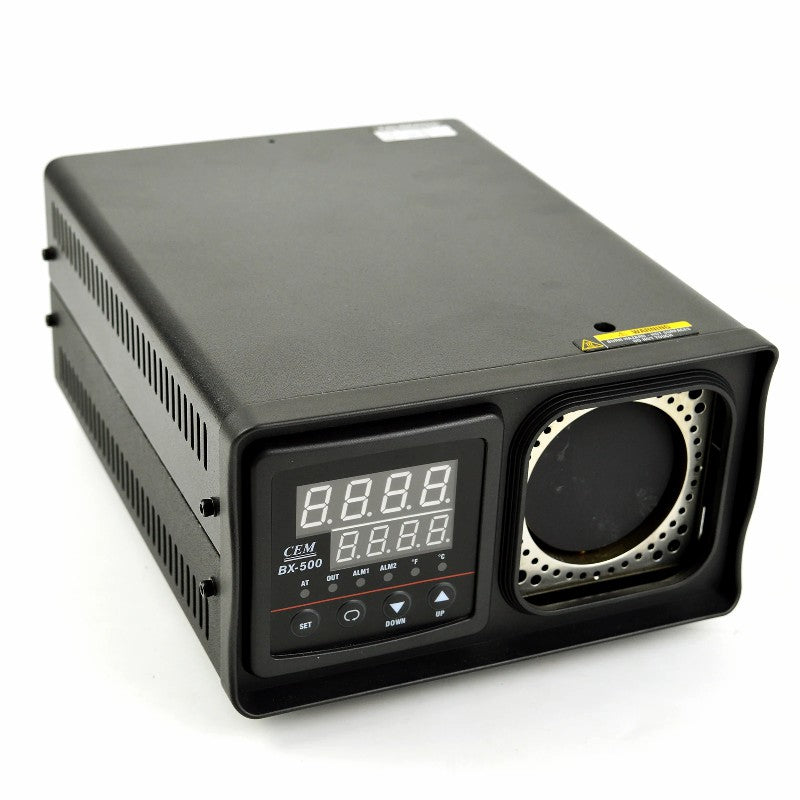

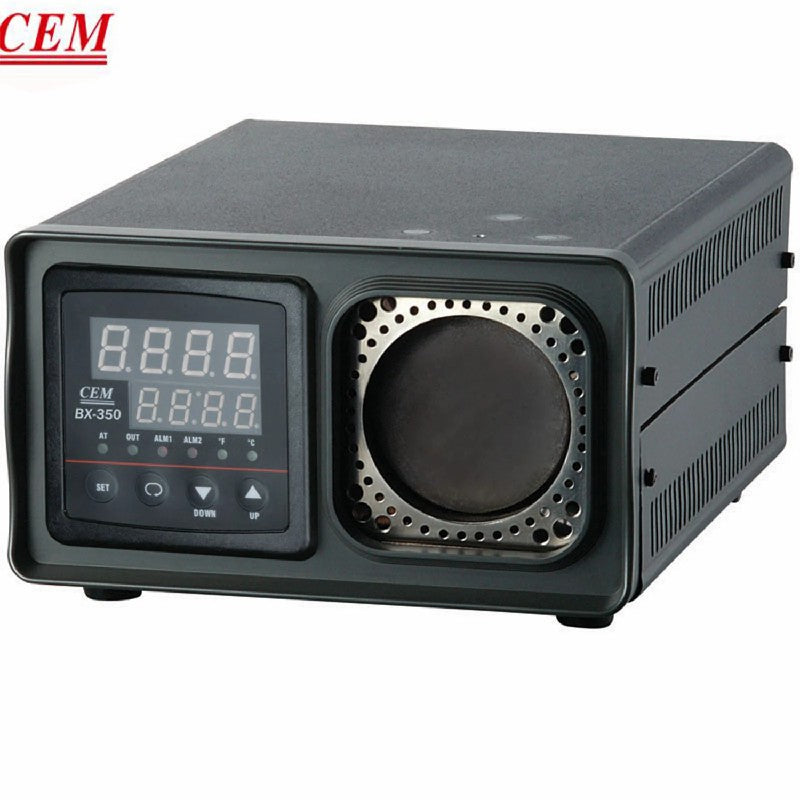

CEM BX-350 BX-500 Infrared Calibrator
Whether you’re using in-line or handheld infrared pyrometers, you need a high performance calibration standard to verify accuracy. Portable IR Calibrator provides a stable blackbody target for calibrating non-contact IR thermometers up to 500oC (BX-500). The portable IR calibrator features a large temperature controlled blackbody target with a diameter of 2.25" (57 mm), which offers a wide field of view area for optical variations in IR thermometers. With an emissivity of 0.95, the isothermal target can be controlled in set-point increments of 0.1° from 50oC to 500oC (BX-500) For even higher precision, a contact calibration well is located directly behind the blackbody surface. Using an optional digital RTD thermometer and calibrated secondary probe, accuracies of ±0.1oC can be achieved.
|
Specifications |
BX-350 |
BX-500 |
BXC-15 |
|
Temperature Range |
50oC ~ 350oC/ 122oF ~ 662oF |
50oC ~ 500oC/ 122oF ~ 932oF |
-15oC ~ 120oC/5oF ~ 248oF |
|
Accuracy |
±0.5oC @ 100oC/ (±1.0oF @ 212oF) |
±0.5oC @ 100oC/ (±1.0oF @ 212oF) |
±0.40°C at -15 to 0°C ±0.50°C at 0 to 100°C ±0.55°C at 100 to 120°C |
|
±1.2oC @ 350oC/ (±2.4oF @ 662oF) |
±1.8oC @ 500oC/ (±3.6oF @ 932oF) |
||
|
Stability |
±0.1oC @ 100oC/ (±0.2oF @ 212oF) |
±0.1oC @ 100oC/ (±0.2oF @212oF) |
±0.1oC @ 100oC/ (±0.2oF @ 212oF) |
|
±0.2oC @ 350oC/ (±0.4oF @ 662oF) |
±0.3oC @ 500oC/ (±0.6oF @ 932oF) |
||
|
Target size |
2.25” (57mm) |
2.25” (57mm) |
3.26” (83x83mm) |
|
Target Emissivity |
0.95 |
0.95 |
0.95 |
