Specifications

DT-8830

DT-8831

DT-8832

DT-8833

DT-8833H

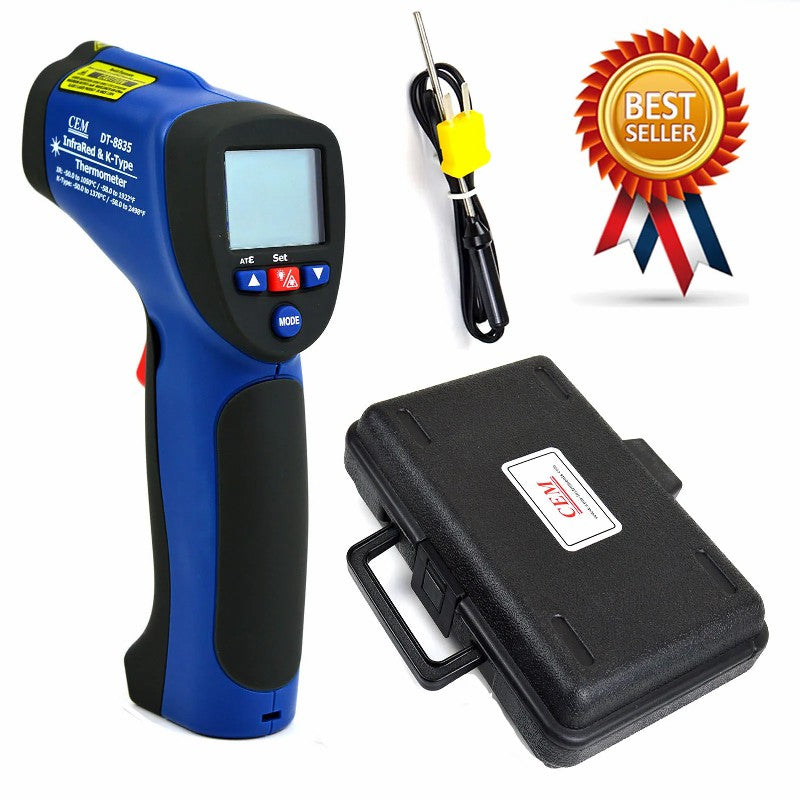

DT-8835

IR Temp. Range

-32℃ to 380℃/ -25.6℉ to 716℉

-32℃ to 480℃/ -58℉ to 896℉

-32℃ to 580℃/ -58℉ to 1076℉

-50℃ to 800℃/ -58℉ to 1472℉

-50oC to 850oC/ -58oF to 1562oF

-50oC to 1050oC/ -58oF to 1922oF

Optical Resolution

13:1

30:1

IR Temp. Resolution

0.1℃/℉

Type K Temp. Range

-50℃ to 1370℃ / -58℉ to 2498℉

Type K Temp. Resolution

0.1°up to 2000°, 1°over 2000°

Response Time

Less than 1s

Basic Accuracy

±1.5% of reading

Emissivity

Adjustable 0.10~1.0

Features

DT-8830

DT-8831

DT-8832

DT-8833

DT-8833H

DT-8835

User selectable oC or oF

*

*

*

*

*

*

Laser targeting

*

*

*

*

*

*

Automatic Data Hold

*

*

*

*

*

*

Auto Power Off

*

*

*

*

*

*

White Backlit LCD Display

*

*

*

*

*

*

Overrange indication

*

*

*

*

*

*

Trigger lock

*

*

*

*

*

*

Max, Min, DIF, AVG record

*

*

*

*

*

*

High and low alarm

*

*

*

*

*

*

Adjustable emissivity

*

*

*

*

*

*

Type K temperature measurement

*

*

*

*

*

*

Max. Temperature

380oC/716oF

480oC/896oF

580oC/1076oF

800oC/1472oF

850oC/1562oF

1050oC/1922oF

Optical Resolution

13:1

30:1
