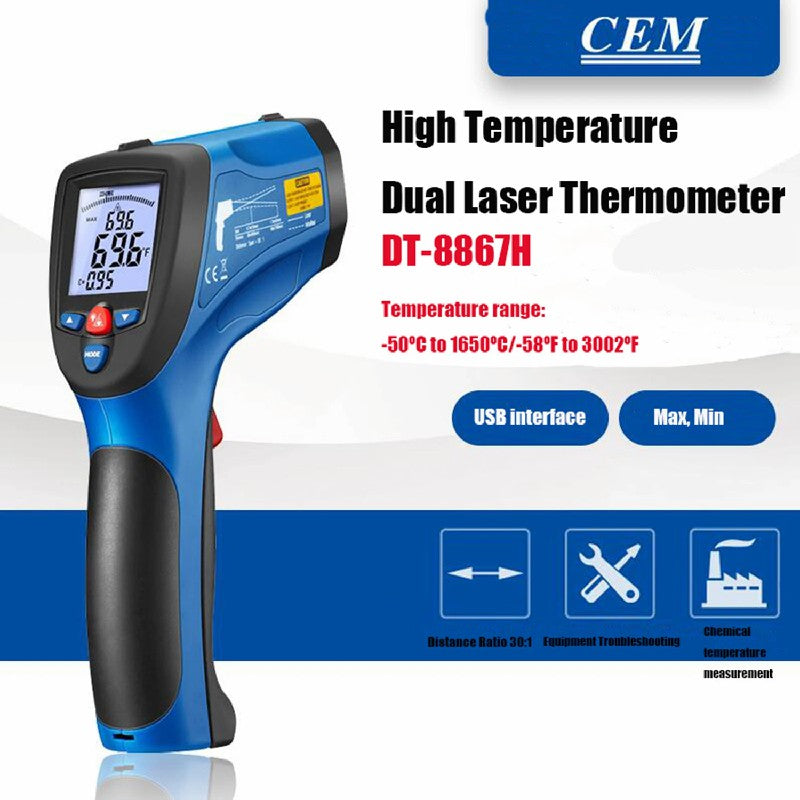

CEM DT-8867H DT-8868H DT-8869H Professional Range Dual Laser Infrared Thermometer Temperature Gun Industrial High Temperature
CEM DT-8867H DT-8868H DT-8869H Professional Infrared Thermometer
DT-8867H DT-8868H DT-8869H provide much faster, easier and accurate readings for most surface temperature measurements with Dual laser pointers. Two laser points converge to a single spot when the unit is at the optimal distance from the object being measured.
-150ms faster sampling time with 1% accuracy
-High 50 to 1 distance to target ratio measures smaller surface areas at greater distances
-Widest temperature range
-Unique flat surface, modern housing design
-Built-in dual laser pointers for accurate targeting
-Automatic Data Hold & Trigger Lock
-Max, Min, DIF, AVG record
-High and low temp. alarm
-Emissivity Digitally adjustable from 0.10 to 1.0
-USB interface
-Compatible with all standard connector Type K thermocouples
|
Specifications |
DT-8867H |
DT-8868 |
DT-8869 |
DT-8868H |
DT-8869H |
|
IR Temp. Range |
-50ºC to 1650ºC/ -58ºF to 3002ºF |
-50ºC to 1200ºC/ -58ºF to 2192ºF |
-50ºC to 1600ºC/ -58ºF to 2912ºF |
-50ºC to 1850ºC/ -58ºF to 3362ºF |
-50ºC to 2200ºC/ -58ºF to 3992ºF |
|
Response Time |
Less than 150ms |
Less than 150ms |
Less than 150ms |
Less than 150ms |
Less than 150ms |
|
Resolution |
0.1º up 1000º, 1º over 1000º |
0.1º up 1000º, 1º over 1000º |
0.1º up 1000º, 1º over 1000º |
0.1º up 1000º, 1º over 1000º |
0.1º up 1000º, 1º over 1000º |
|
Basic Accuracy (IR) |
±1.0% of reading |
±1.0% of reading |
±1.0% of reading |
±1.0% of reading |
±1.0% of reading |
|
Optical Resolution |
30:1 Distance to Spot size |
50:1 Distance to Spot size |
50:1 Distance to Spot size |
50:1 Distance to Spot size |
50:1 Distance to Spot size |
|
Emissivity |
Adjustable 0.10~1.0 |
Adjustable 0.10~1.0 |
Adjustable 0.10~1.0 |
Adjustable 0.10~1.0 |
Adjustable 0.10~1.0 |
|
Type K Temp. Range |
-50ºC to 1370ºC/ -58ºF to 2498ºF |
-50ºC to 1370ºC/ -58ºF to 2498ºF |
-50ºC to 1370ºC/ -58ºF to 2498ºF |
-50ºC to 1370ºC/ -58ºF to 2498ºF |
-50ºC to 1370ºC/ -58ºF to 2498ºF |
|
Basic Accuracy (TK) |
±1.5% of reading |
±1.5% of reading |
±1.5% of reading |
±1.5% of reading |
±1.5% of reading |
|
Readings memories |
|
99 |
99 |
99 |
99 |
