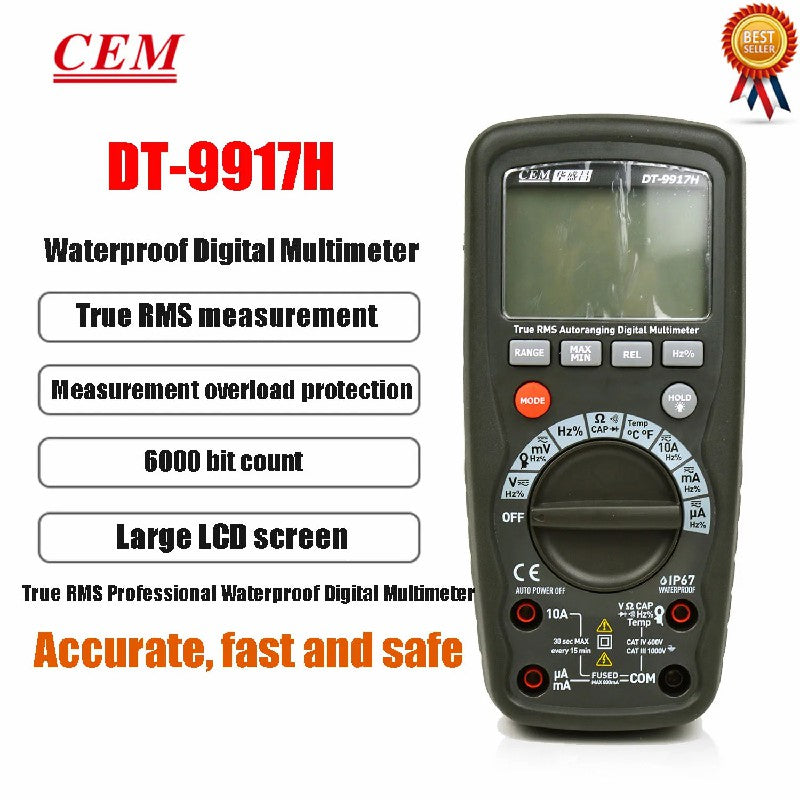

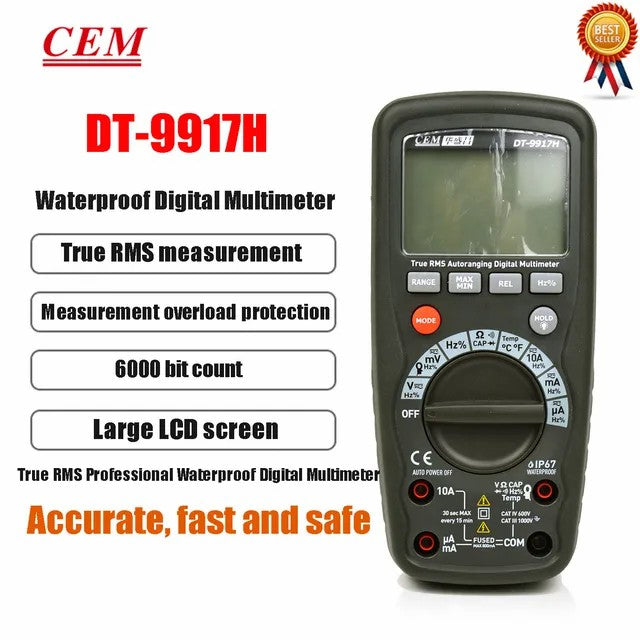

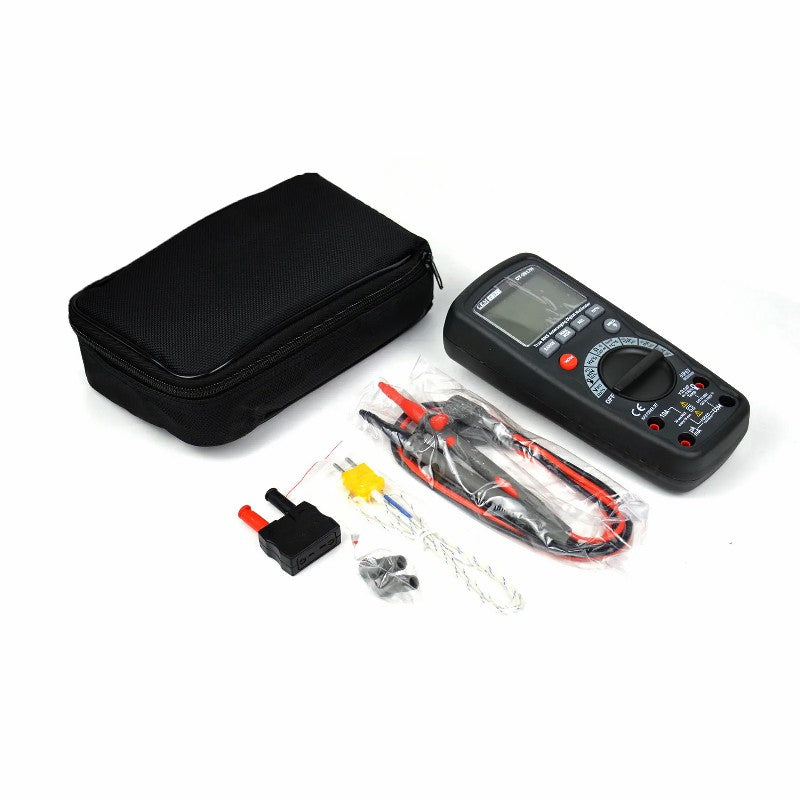

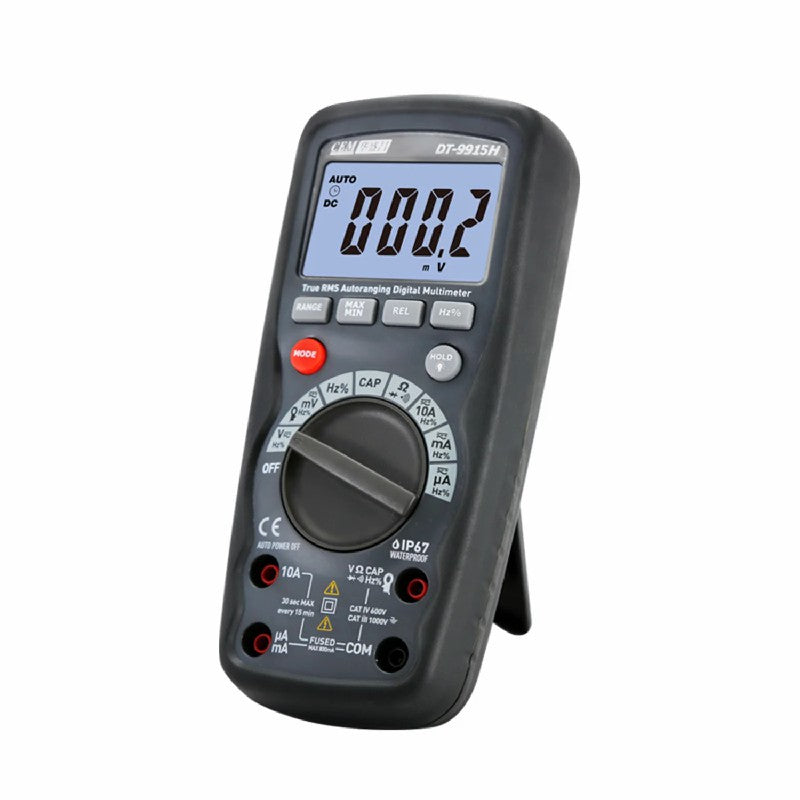

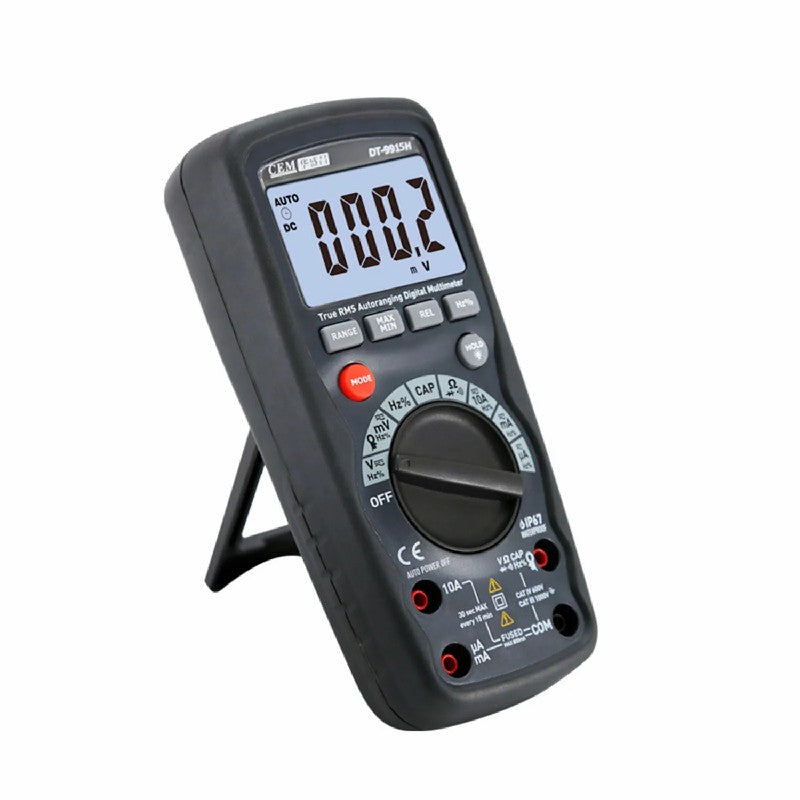

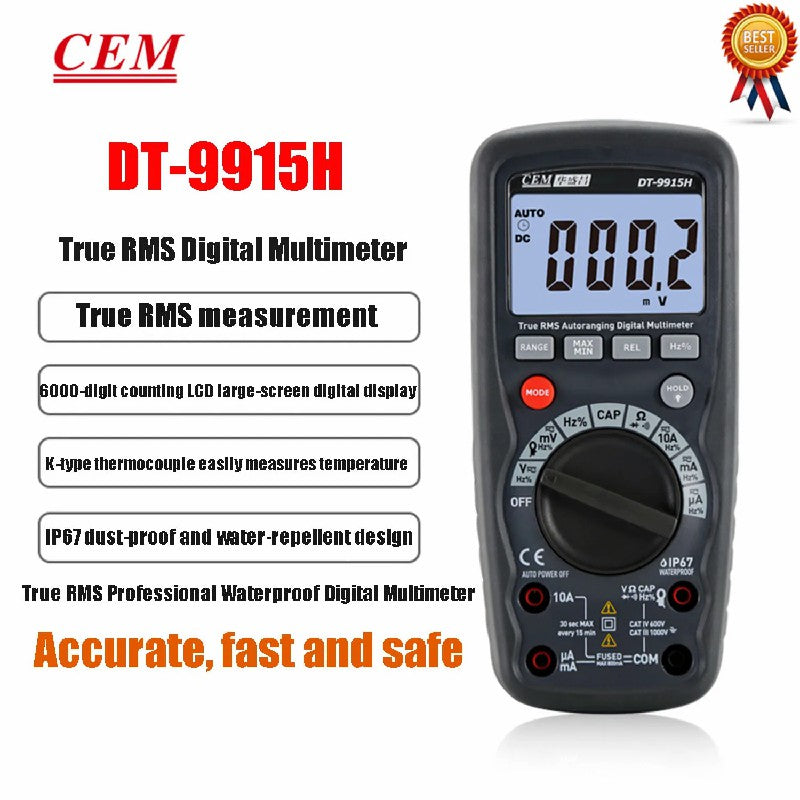

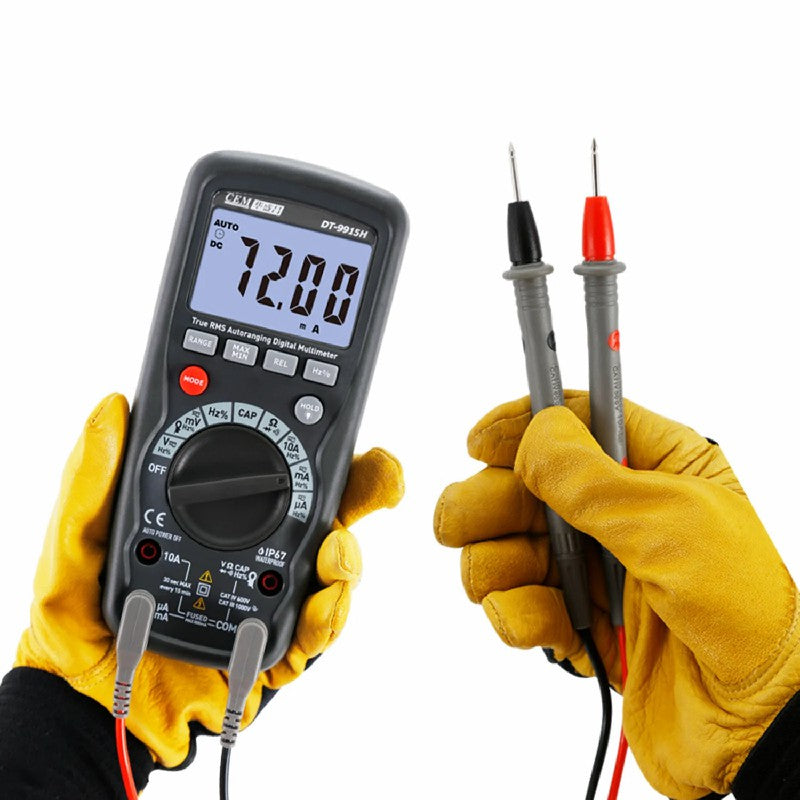

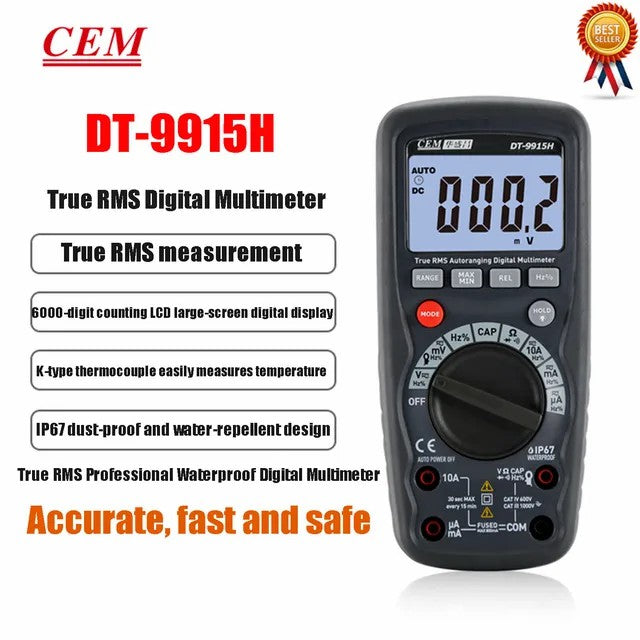

CEM DT-9915H DT-9917H Multimeter Digital High Precision Digital Display Current Voltage Test Capacitance Measurement Waterproof
CEM DT-9915H/DT-9917H Professional Waterproof Digital Multimeter 4000 Counts Multimeters
DT-9915H/9917H/9918T
They set the standard with a combination of precision, features, easy-to-use, safety and reliability.
Have True RMS AC Voltage, Current readings, as well as Frequency and Capacitance ranges.
Safety Conformance
• EN61010-1 CAT IV 600V, CAT III 1000V
• 1000V input protection on all ranges
• 10A/1000V & 0.5A/1000V fuses
• protection on current ranges
|
Features |
|||
|
|
9915H |
9917H |
9918T |
|
Digital LCD display counts |
6000 |
6000 |
6000 |
|
True RMS measurement |
* |
* |
* |
|
Temperature measurement |
|
* |
* |
|
IP67 & Safety design |
* |
* |
* |
|
Relative zero |
* |
* |
|
|
Wide capacitance range |
* |
* |
* |
|
Max/Min recording mode & Data Hold |
* |
* |
* |
|
Auto Power Off & Blacklight |
* |
* |
* |
|
AC/DC current clamp-on adaptor input |
* |
* |
|
|
Peak capture mode |
|
|
* |
|
Analog bargraph/segment |
|
|
* |
|
Specifications |
|||||
|
Function |
Max. Range |
Basic Accuracy |
9915H |
9917H |
9918T |
|
Voltage DC |
1000 V |
±0.5%+5digits |
* |
* |
* |
|
Voltage AC |
1000V |
±0.8%+3digits |
* |
* |
* |
|
Current DC |
10A |
±1.0%+3digits |
* |
* |
* |
|
Current AC |
10A |
±1.5%+3digits |
* |
* |
* |
|
Resistance |
60MΩ |
±0.8%+2digits |
* |
* |
* |
|
Duty Cycle |
99.9% |
±1.2%+2digits |
* |
* |
* |
|
Frequency |
9.999MHz |
±1.0%+5digits |
* |
* |
* |
|
Capacitance |
99.99mF |
±4.0%+5digits |
* |
* |
40mF |
|
Temperature |
1300ºC/2372ºF |
±3.0%+5ºC/9ºF |
|
* |
* |
|
AC/DC current clamp-on adaptor input |
40A/400A |
|
|||
|
Diode Check |
* |
* |
* |
||
|
Continuity Test |
* |
* |
* |
||
