CEM LA-1014 LA-1015 Multifunctional Cable Indentifier Tester DMM Cable Detector Network Fault Tester Line Detector LAN Tester

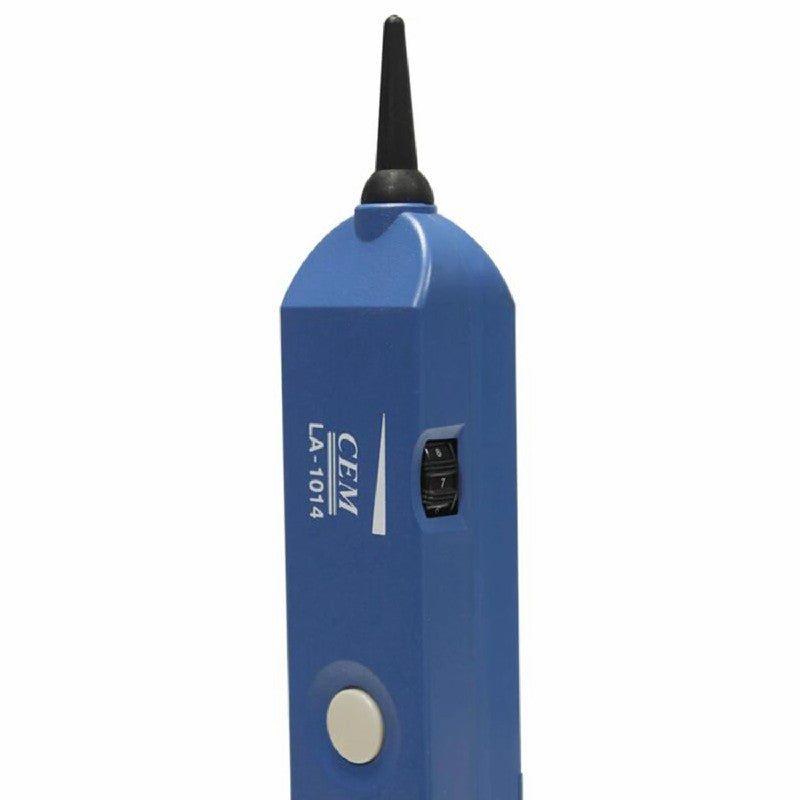

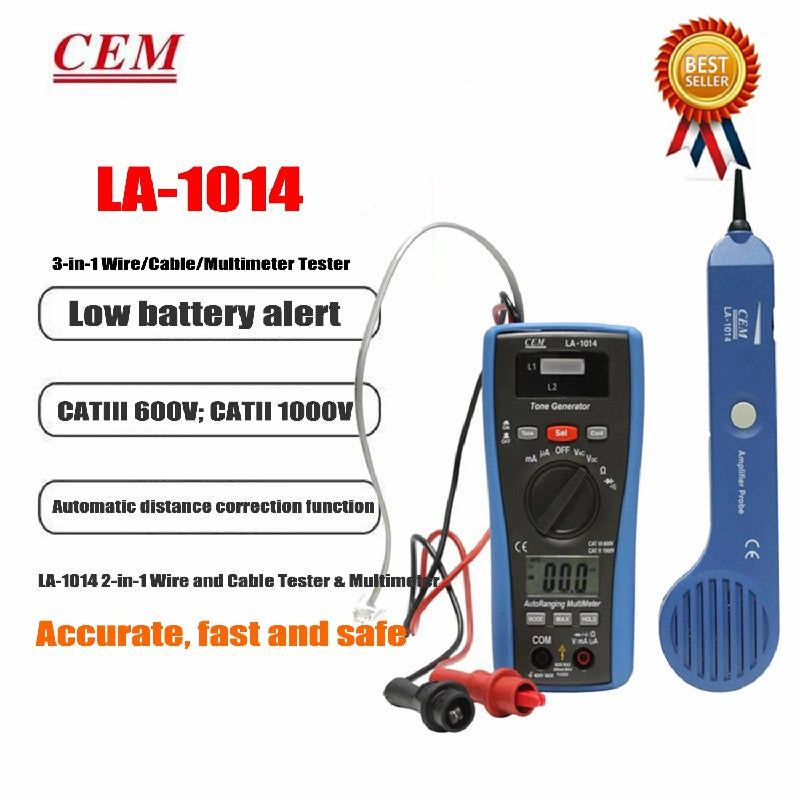

CEM LA-1014 2 in 1 LAN Tester and Multimeter Built-in Speaker on Probe
2 in 1 LAN Tester & Multimeter

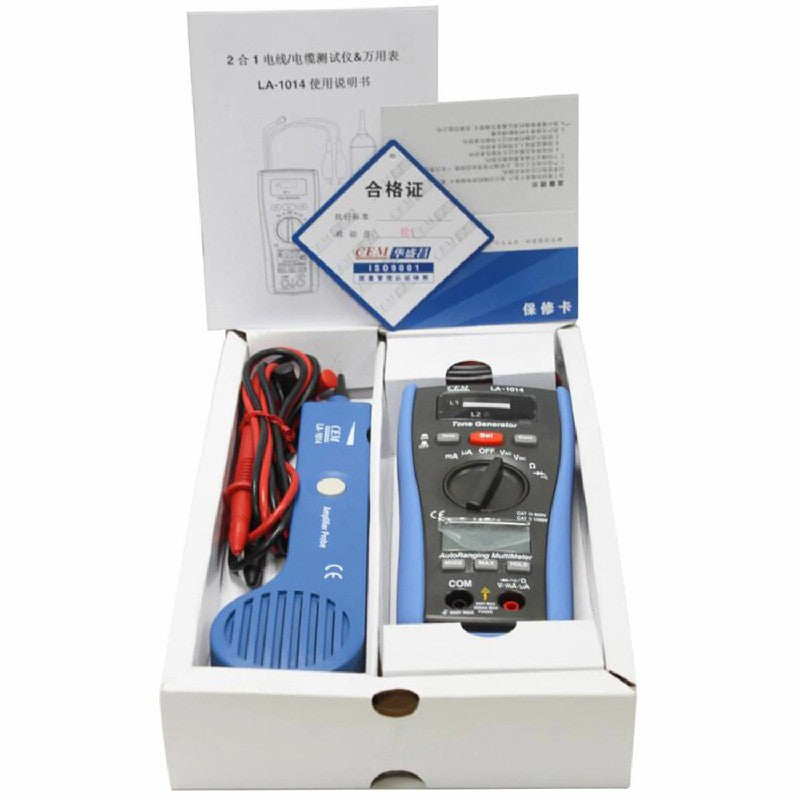

Complete with Amplifier probe and Tone; Generator with alligator clips and modular; RJ11 phone and RJ45 digital connector cables; 9V battery and case; Tone Generator and Amplifier Probe Kit; Heavy duty kit with audible tone easily identifies wires or cables.
|
Features |
|
Insulated inductive probe tip prevents shorting conductors |
|
Tests include wire trace, continuity test, clear/busy/ringing line test and tip/ring identification |
|
Alligator clips for non-terminated cables and modular connectors for direct connections to telephone and internet wiring |
|
Selectable continuous or variable tone generation |
|

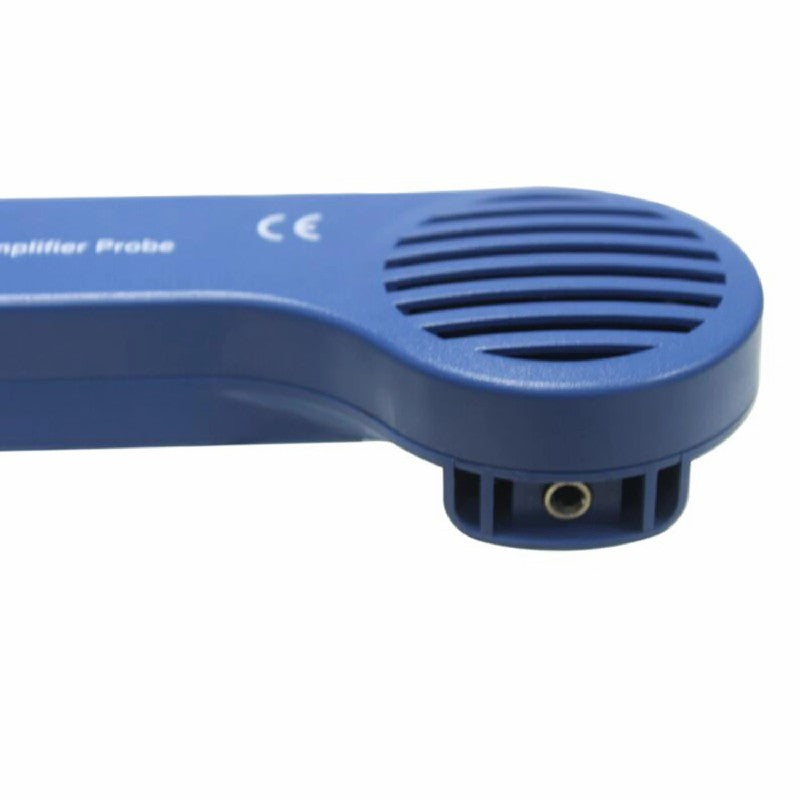

Built-in speaker on probe with sensitivity control |
|
RJ45 and RJ11 modular connectors |
Size (H x W x D): 162mm x 74.5mm x 44mm
Weight: 308g
|
Specifications |
||
|
Function |
Max Range |
Basic Accuracy |
|
Voltage DC |
600V |
±0.5% |
|
Voltage AC |
600V |
±1.2% |
|
Current DC |
200mA |
±1.5% |
|
Current AC |
200mA |
±2.0% |
|
Resistance |
20MΩ |
±0.8% |
|
Continuity Test |
Beep if less than 100Ω
|
|

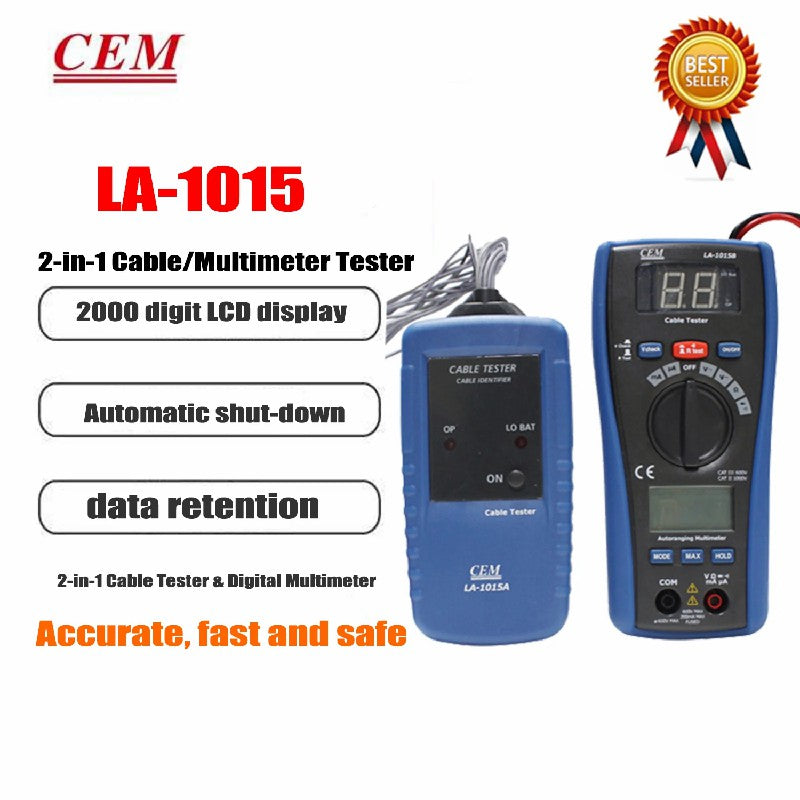

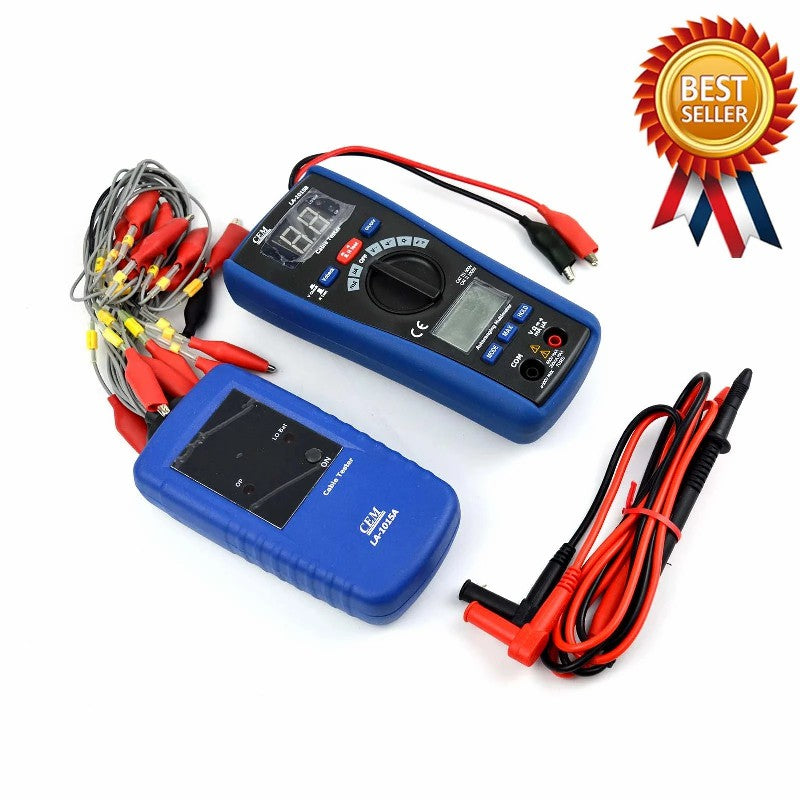

CEM LA-1015 Cable Indentifier Tester Meter Transmitter/Receiver and DMM
Cable Indentifier & DMM
LA-1015 is a transmitter/receiver device which enables one to instantly match up ends of individual cores at either end of a multi-core cable. With the remote kit it can test cables installed far away either on wall plate or patch panel. DMM function makes it easy to measure DC/AC voltage, DC/AC current, Resistance, continuity & diode.
|
Specifications |
||
|
Function |
Max Range |
Basic Accuracy |
|
Voltage DC |
600V |
±0.5% |
|
Voltage AC |
600V |
±1.2% |
|
Current DC |
200mA |
±1.5% |
|
Current AC |
200mA |
±2.0% |
|
Resistance |
20MΩ |
±0.8% |
|
Continuity Test |
Beep if less than 100Ω |
|
|
Transmitter |
||
|
Display |
Two blue LED lamps |
|
|
Alligators |
17 Croc Clips - Red x 16, Black x 1 |
|
|
Cable resistance |
10K Ohm max |
|
|
Receiver |
||
|
Display |
Two digit Red LED Display |
|
|
Alligators |
2 Croc Clips - Red x 1, Black x 1 |
|
