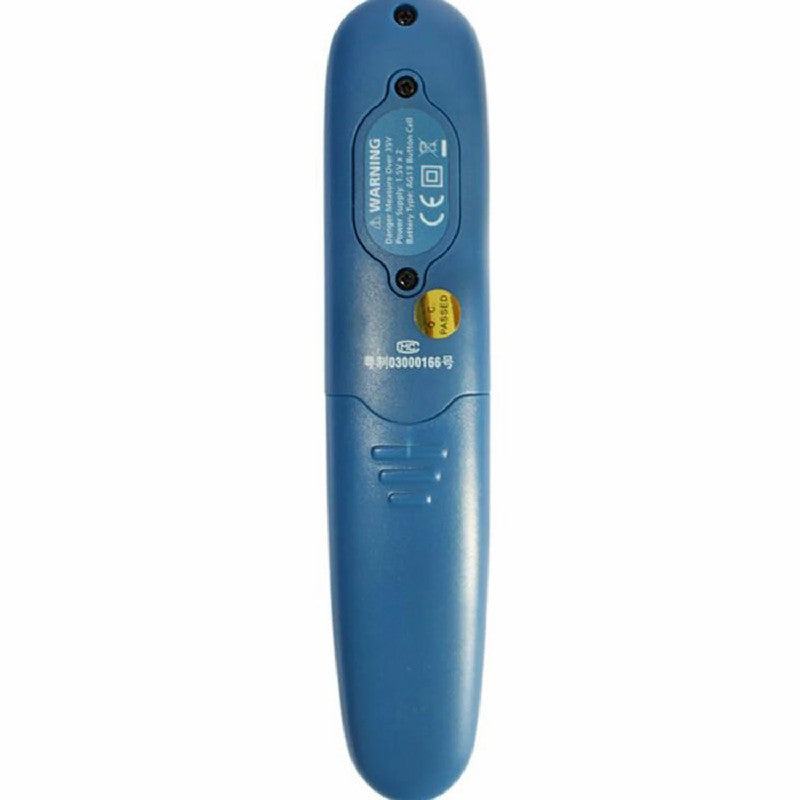

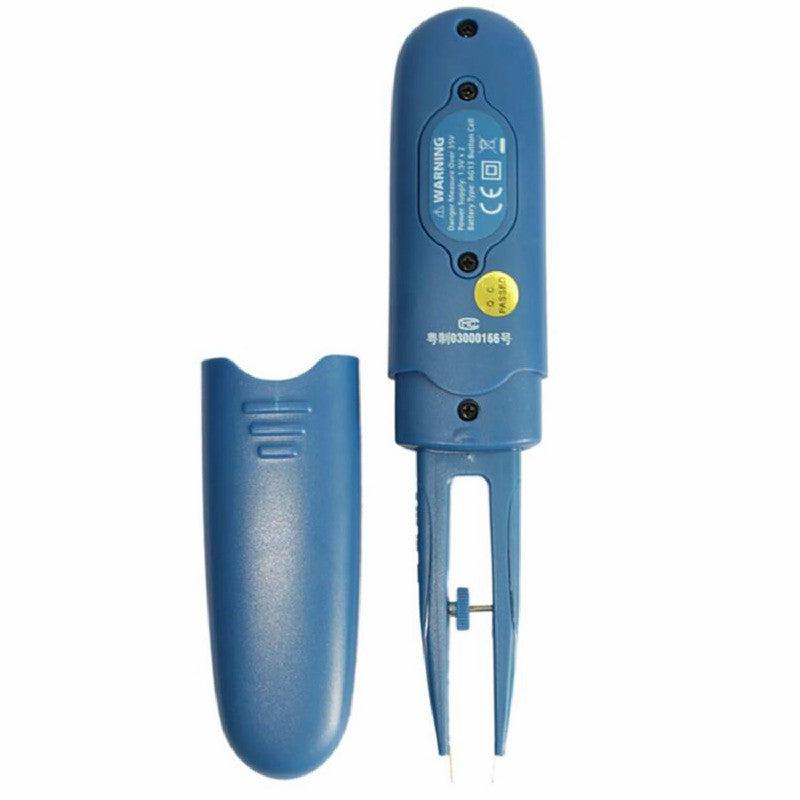

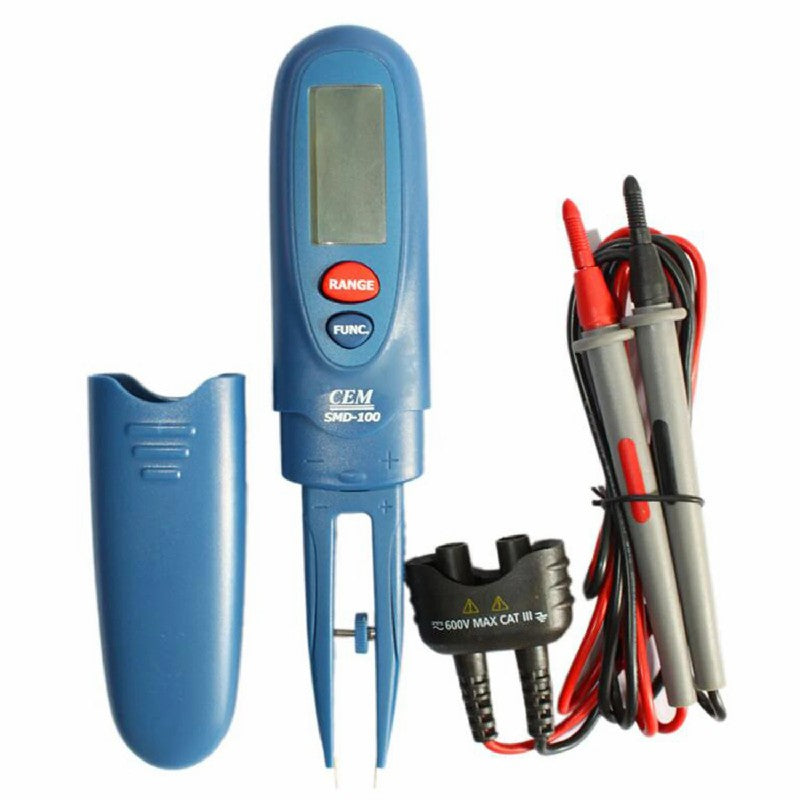

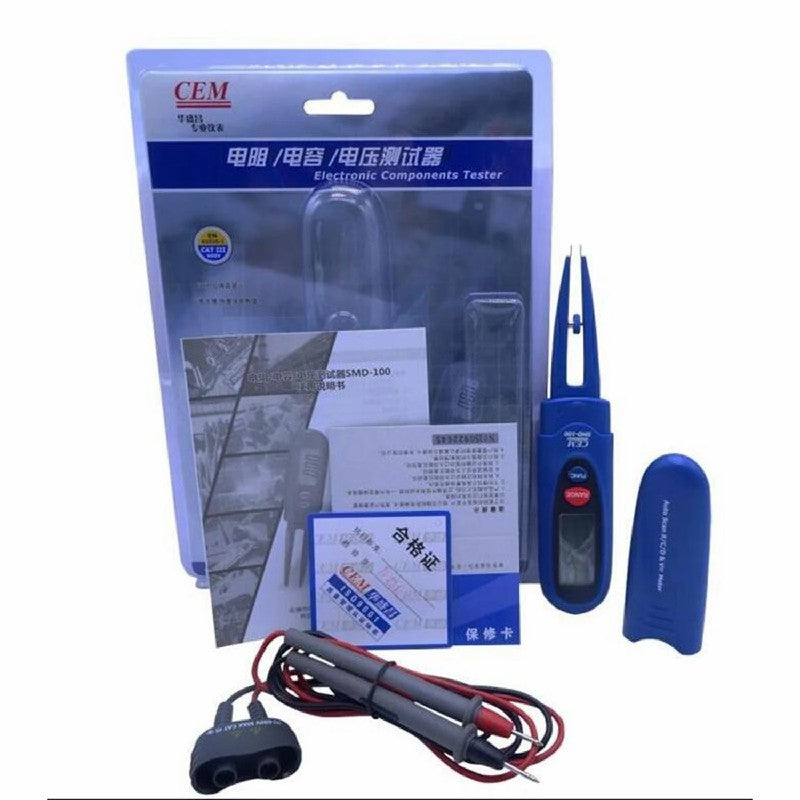

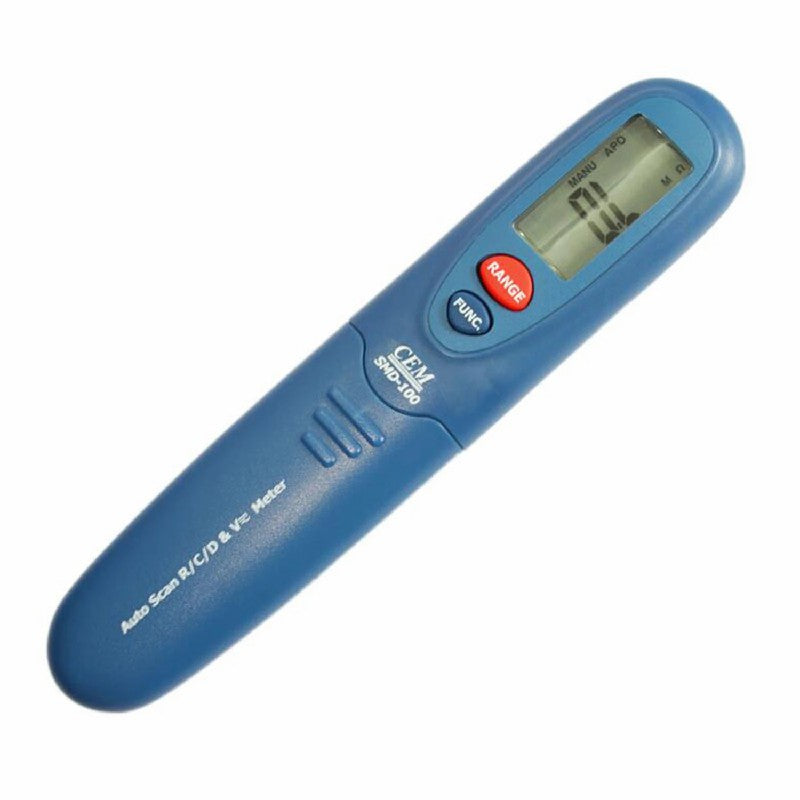

CEM SMD-100 Test Of High Precision Electronic Components of Pen Digital Multimeter LCD Display Resistance Capacitance Frequency
Product SKU:
Available:
Only 0 item in stock
0 item in stock
In stock
Pre-order
Out of stock
$44.30
Want it delivered by
CEM SMD-100 Smart Electronic Components Tester 6000 Counts LCD Display
|
Features |
|
Automatic DCV or ACV selection, Capacitance, Resistance, Continuity and diode selection |
|
6000 counts LCD display |
|
Auto scan DC/AC Voltage, resistance, capacitance, diode and continuity |
|
Data Hold/MAX/MIN recording mode |
|
Auto Power Off |
|
Wide capacitance range |
|
Diode Check & Continuity Test |
Size (H x W x D): 184mm x 37mm x 23mm
Weight: 76g
|
Specifications |
||
|
Function |
Range |
Basic Accuracy |
|
Voltage DC |
600mV/6V/60V/600V |
±0.8% |
|
Voltage AC |
600mV/6V/60V/600V |
±1.0% |
|
Resistance (Ω) |
600/60k/60k/600k/6M/60M |
±1.0% |
|
Capacitance (F) |
6n/60n/600n/6μ/60μ/600μ/6m/60m |
±3.5% |
|
Diode check |
Open voltage 2.8Vdc, test current 1mA |
|
|
Continuity test |
Threshold 35 Ω |
|
