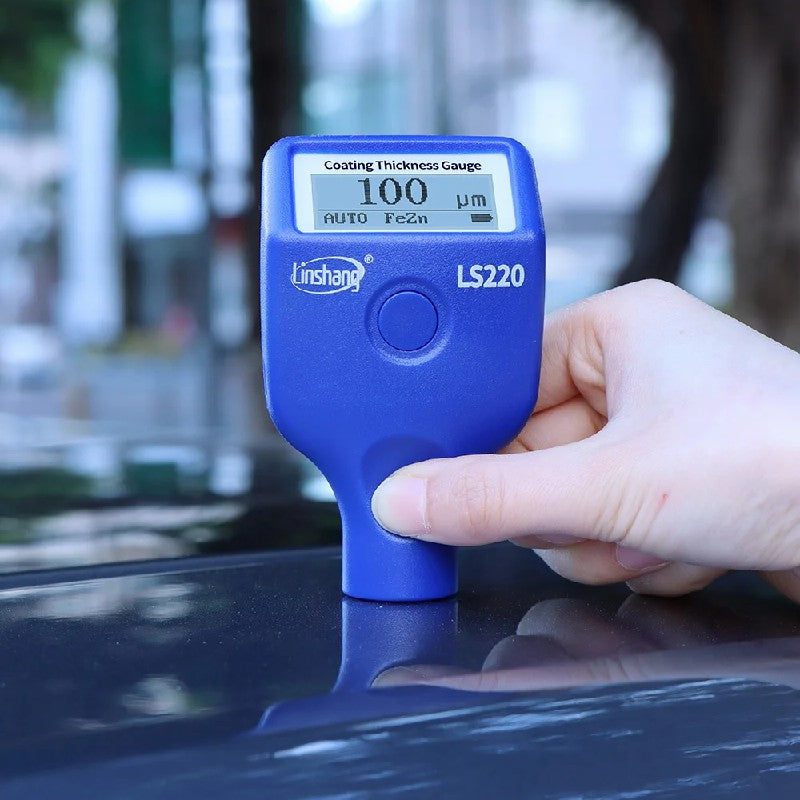

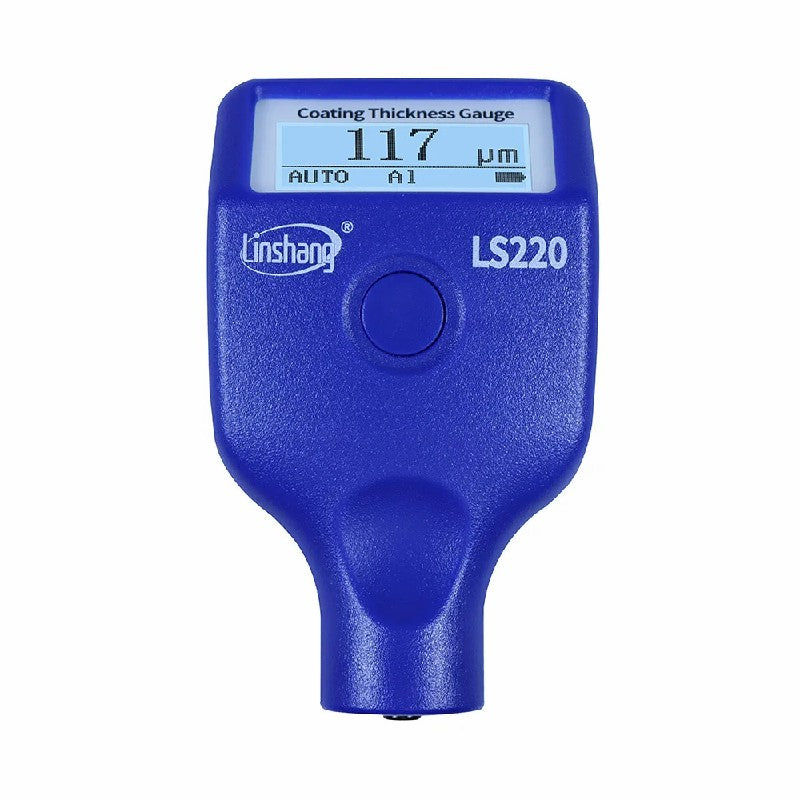

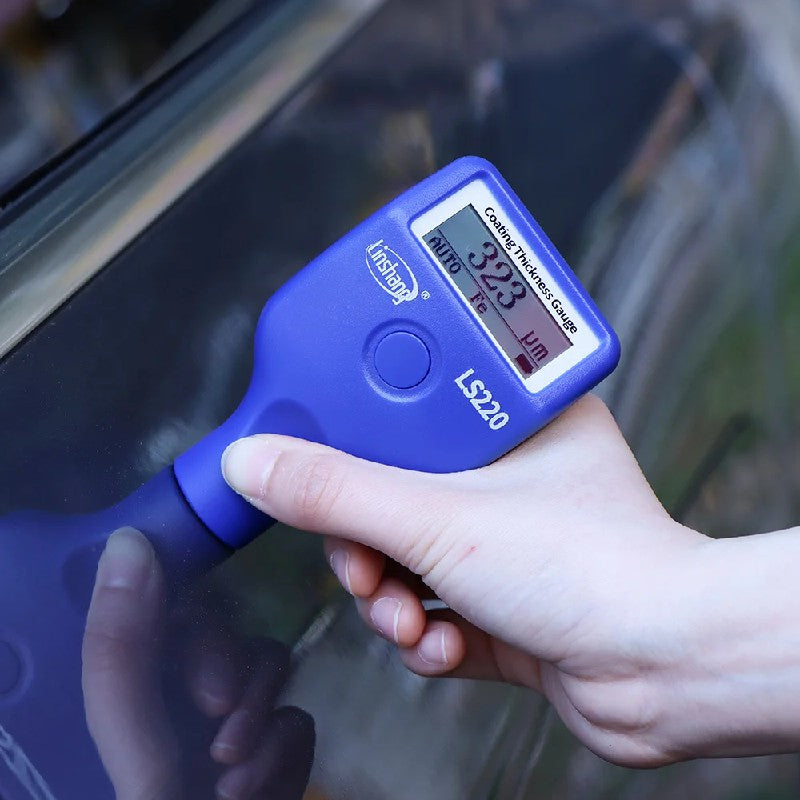

LS220 car paint meter is specially designed for used car coating thickness inspection. LS220 is compact and uses the wear-resistant ruby probe to avoid probe abrasion. Simple operation, instant measurement at power on. Fast response time, 0.5 seconds to measure the data, greatly saving car inspection time. In automatic mode, the instrument can intelligently identify ferrous putty, iron galvanized, iron, aluminum, non-metallic bodies. High measurement accuracy, stable data, can certify by authoritative metrology institutes.

Specifications

1. Probe tip: Ruby fixed

2. Measuring principle: Fe: Hall Effect / Al: Eddy current

3. Probe type: Built-in integrated probe

4. Measuring range: 0.0-3500μm

5. Resolution: 0.1μm: (0μm-99.9μm); 1μm:(100μm-999μm); 0.01mm:(1.00mm-3.50mm)

6. Accuracy: ≤±(3%H+2μm), H is the standard value

7. Unit: μm / mil

8. Measuring interval: 0.5s

9. Minimum measuring area: Ø = 25mm

10. Minimum curvature: Convex: 5mm / Concave: 25mm

11. Minimum substrate thickness: Fe: 0.2mm / Al: 0.05mm

12. Language: 中文, English, Русский, Türkçe

13. Display: 128×48 dot matrix LCD

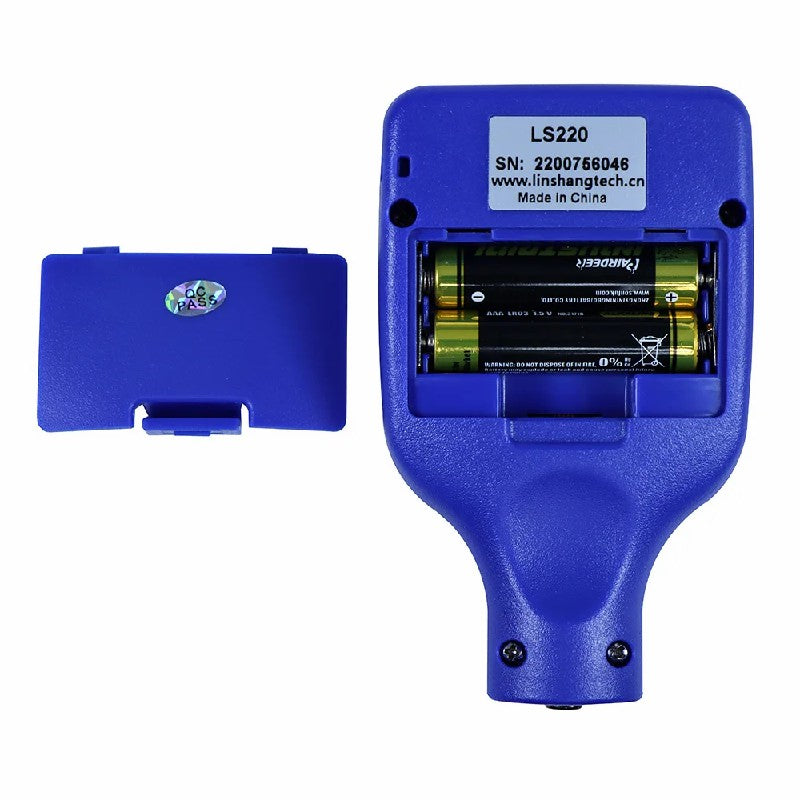

14. Power supply: 2pcs of 1.5V AAA alkaline battery

15. Range of operation temperature: -20℃-50℃

16. Storage temperature range: -20℃-60℃

17. Host size: 101*62*28 mm

18. Weight (with battery): 79g

Features

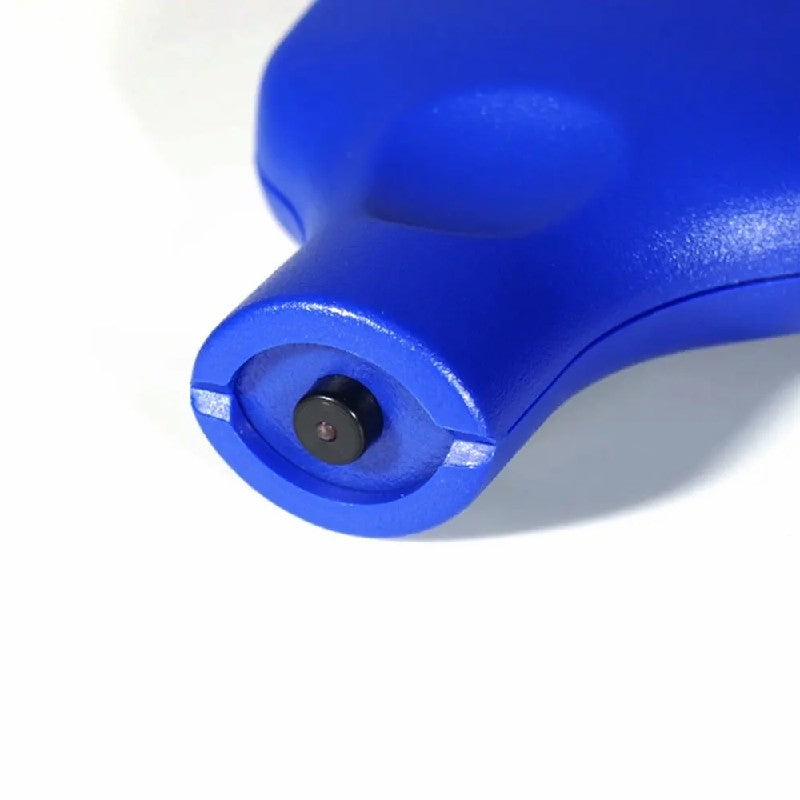

1. Ruby probe design ensures long-term durability and abrasion resistance.

2. Fast response time, 0.5 seconds to measure the data, greatly saving car inspection time.

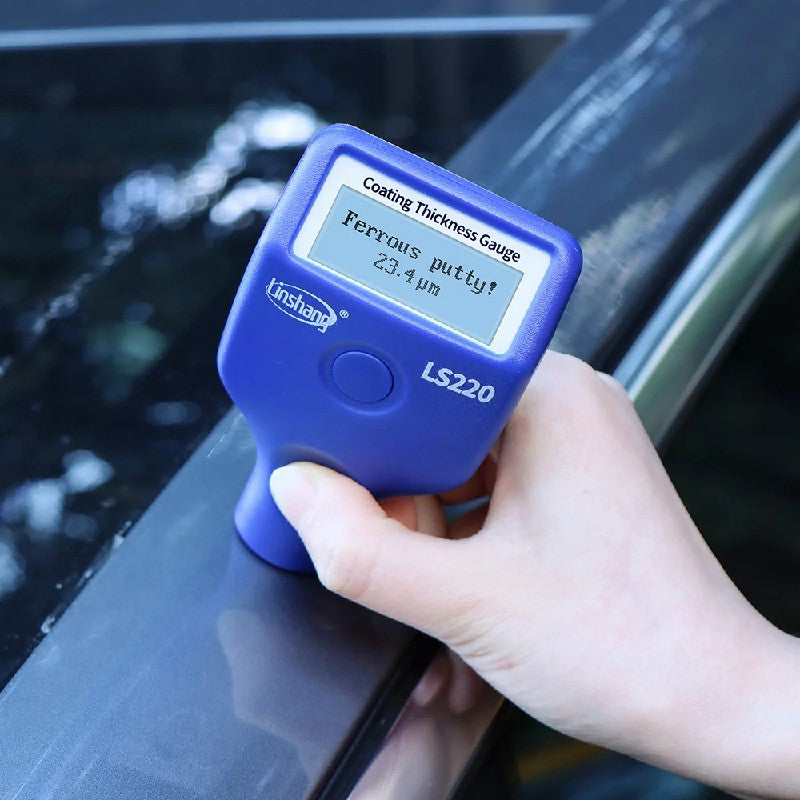

3. In automatic mode, LS220 can identify ferrous putty, iron galvanized, iron, aluminum, non-metallic bodies.

4. With the certificate of qualification from the authoritative metrological institute.

5. LS220 automotive paint meter uses the LCD screen, which can view data more clearly outdoors.

6. High measurement accuracy with temperature compensation.

7. It has three measurement modes to switchable: Fe mode, NFe mode and automatic mode (Fe/ Al).

8. Measuring range up to 3500 μm, even for ultra-thick patches.

1. LS220 car paint meter*1

2. Fe plate of zero adjustment*1

3. NFe plate of zero adjustment*1

4. Standard film*1

5. User manual*1

6. Certificate/Warranty card*1

Note
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.
Please allow 1-2cm measuring deviation due to manual measurement.
