LS252D LS252D/C HL HV HB HS HRA HRB HRC 7-in-1 Pocket Pipe Superficial SurfaceLeeb Hardness Tester Scleroscope Manufacturer
LS252DC HL HV HB HS HRA HRB HRC 7-in-1 Pocket Pipe Superficial Surface Leeb Hardness Tester Scleroscope Manufacturer
Paramenters
|
Model |
LS252D |
LS252DC |
|
Probe |
Impact device D |
Impact device DC |
|
Hardness Scales |
HL, HV, HB, HS, HRA, HRB, HRC |
HL, HV, HB, HS, HRA, HRB, HRC |
|
Measurement Range |
HLD(170-960)/HV(83-976)/HB(30-651)/HRC(17.6-68.5) |
HLD(170-960)/HV(83-976)/HB(30-651)/HRC(17.6-68.5) |
|
HS(26.4-99.5)/HRB(13.5-100)/HRA(60-85.8) |
HS(26.4-99.5)/HRB(13.5-100)/HRA(60-85.8) |
|
|
Resolution |
1HL |
1HL |
|
Accuracy |
±6 HL |
±6 HL |
|
Repeatability |
6HL |
6HL |
|
Display |
128 * 64 dot matrix OLED |
128 * 64 dot matrix OLED |
|
Power supply |
Rechargeable lithium battery 3.7V@250mAh, full charge for over 5000 continuous measurements |
Rechargeable lithium battery 3.7V@250mAh, full charge for over 5000 continuous measurements |
|
Size |
148*34*24 mm |
88 * 34 * 24 mm |
|
Weight |
68 g |
48 g |
|
Working Temperature Range |
-10~50℃,0~85%RH(no condensation) |
-10~50℃,0~85%RH(no condensation) |
|
Storage Temperature Range |
-10~60℃,0~85%RH(no condensation) |
-10~60℃,0~85%RH(no condensation) |
LS252D Leeb Hardness Tester
LS252D is an advanced state-of-the-art palm sized metal hardness tester which incorporates the impact device and controller into one unit. It easily fits in a pocket. It used lastest dual-coil technology which makes the tester to have extraordinary accuracy: ±6 HL and good repeatability:6HL. It adopts orientation sensors that will compensate the measurement errors in different impact
directions automatically to ensure the accurate data, with durable metal housing and OLED display screen. Equipped with impact device D, LS252D is especially suitable for almost any object, polished parts and heat-treated surfaces or the situation requiring a large number of tests. The battery can be charged simply from USB port, also it has a customer re-calibration function.
Digital Portable Leeb Hardness Tester Metal Mesurement Equipment Durometer Gauge for Aluminum Alloy Steel
Leeb Hardness Tester Application
LS252D handy Leeb hardness tester is suitable for testing the hardness of materials such as steel, cast steel, alloy steel,
stainless steel, gray cast iron, ductile iron, cast aluminum alloy, copper-zinc alloy, copper-tin alloy, pure copper and forged
steel. The instrument can be widely used in machine tool guides, automotive chassis, heavy workpieces, mold cavities, bearings, pressure vessels and installed machinery or assembly parts and can help manufacturers to carry out product quality inspection and reasonable process analysis.
Digital Portable Leeb Hardness Tester Metal Mesurement Equipment Durometer Gauge for Aluminum Alloy Steel

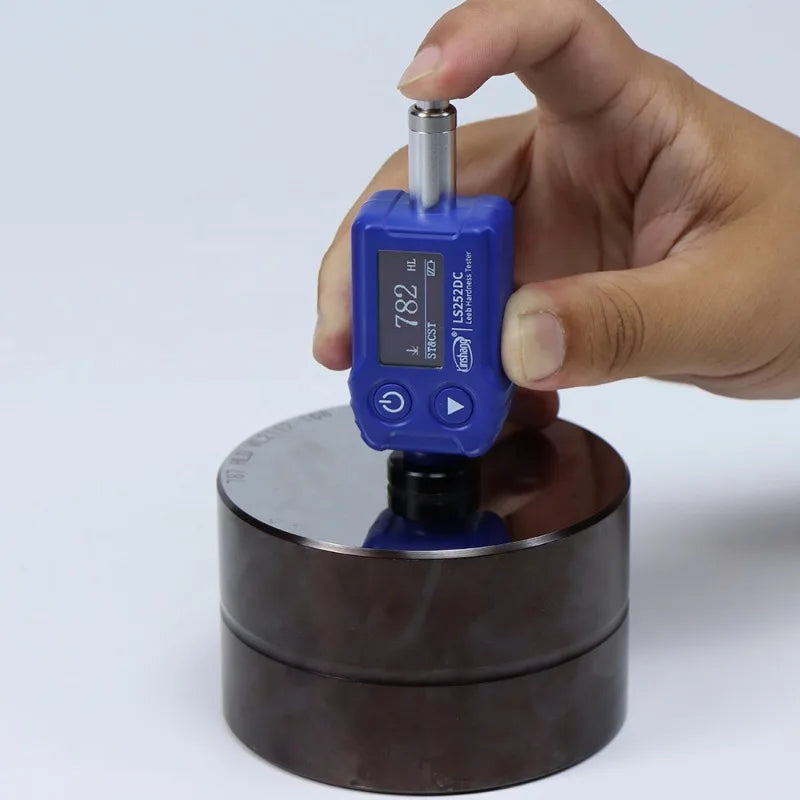

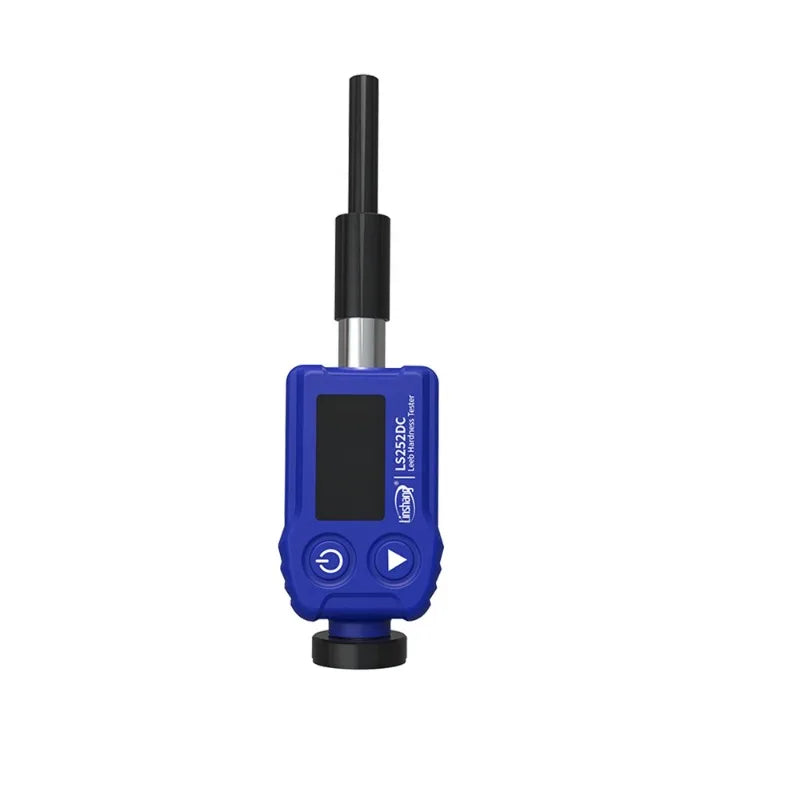

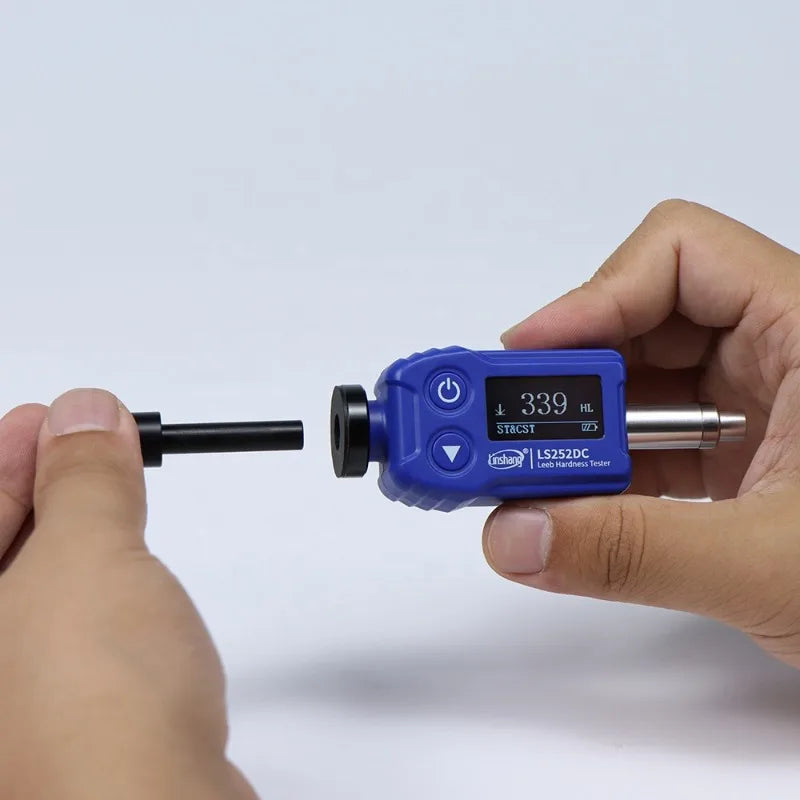

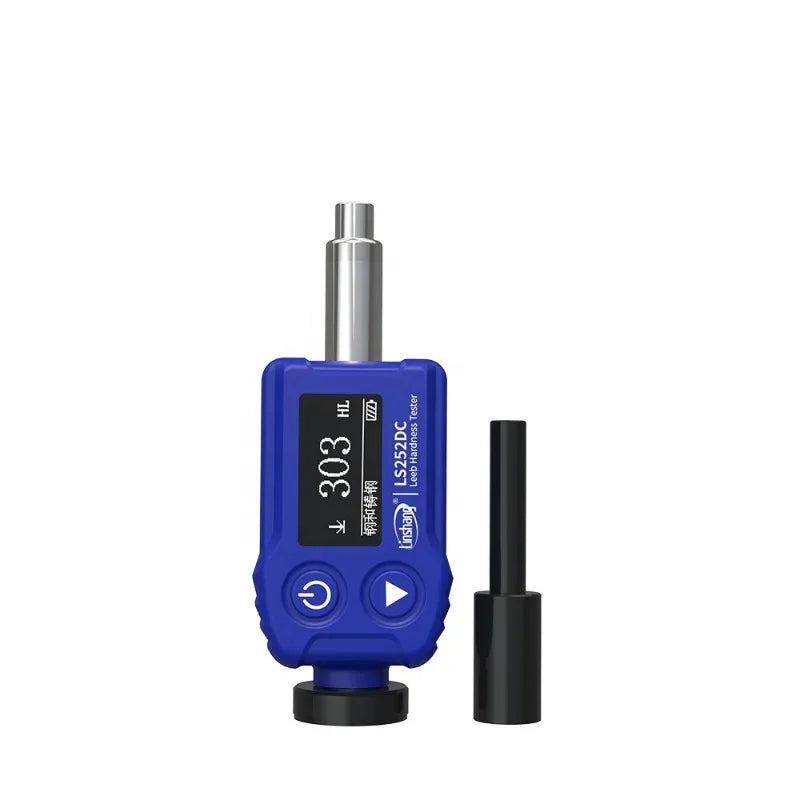

LS252DC Leeb Hardness Tester
LS252DC is an advanced lipstick-sized metal hardness tester which incorporates the impact device and controller into one unit. It easily fits in a pocket or your palm. It used lastest dual-coil technology which makes the tester to have extraordinary accuracy: ±6 HL and good repeatability:6HL. It adopts orientation sensors that will compensate the measurement errors in different impact directions automatically to ensure the accurate data, with OLED display screen. Equipped with impact device DC, the Leeb hardness tester is suitable for very confined spaces such as holes, cylinders or for internal measurements on assembled machines. The battery can be charged simply from USB port, also it has a customer re-calibration function.
HL HV HB HS HRA HRB HRC 7-in-1 Pocket Pipe Superficial Surface Leeb Hardness Tester Scleroscope Manufacturer

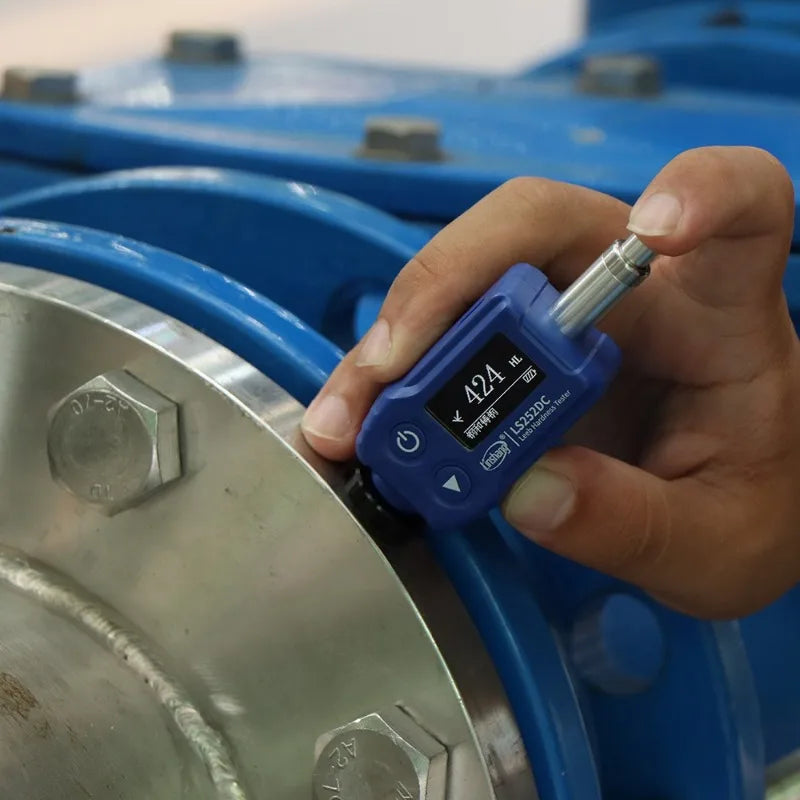

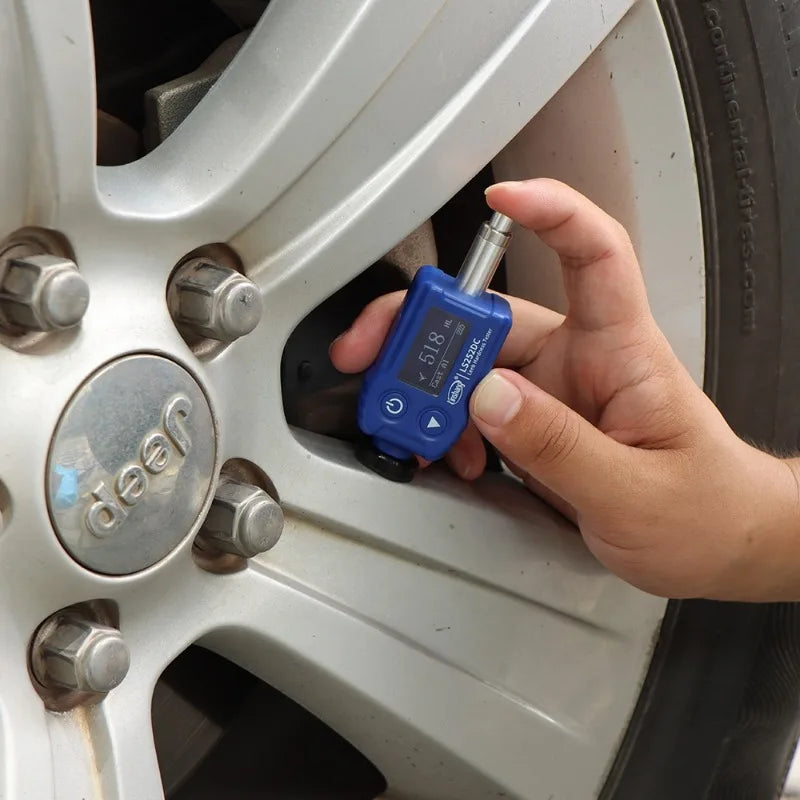

Leeb Hardness Tester Application
LS252DC Leeb hardness tester is suitable for testing the hardness of materials such as steel, cast steel, alloy steel, stainless steel, gray cast iron, ductile iron, cast aluminum alloy, copper-zinc alloy, copper-tin alloy, pure copper and forged steel. The instrument is suitable for very confined spaces such as holes, cylinders or for internal measurements on assembled machines.
HL HV HB HS HRA HRB HRC 7-in-1 Pocket Pipe Superficial Surface Leeb Hardness Tester Scleroscope Manufacturer
Features
1. Direction sensor inside the probe will compensate the measurement errors in different impact directions automatically
The instrument can measure at any angles. Featuring a built-in direction sensor, the probe can automatically compensate the measurement errors in different impact directions. Multi-angle measurement is easy
2. Conversions to different hardness scales
LS252DC hardness tester provides a variety of hardness scales, which can be converted between Leeb (HL), Vickers (HV), Brinell (HB), Shore (HS) and Rockwell (HRA/HRB/HRC) eliminating the cumbersome steps of manual table lookup
3. Integrated design, easy operation
Pen-type Leeb hardness tester is lightweight and portable with easy operation
4. High accuracy with patented dual-coil technology
Cutting-edge dual-coil technology bring the tester extraordinary measurement accuracy and good repeatability
5. Small size, easy operation
Thanks to the small size as lipstick, the LS252DC is simple to operate and easily to be carried out
6. Capable of measuring a wide range of metal materials
With 10 built-in metal materials, including steel, alloy tool steel, stainless steel and grey cast iron, the instrument can be
used in a wide range of applications and industries to meet the demands of everyday work
7. Customer re-calibration allowed
Users can calibrate the standard parts to reduce the error
Qualification and Standards
LS252DC Leeb Hardness Tester conforms to the following standards:
* GB/T 13794.1 Metallic materials-Leeb hardness test-Part 1: Test method
* GB/T 13794.2 Metallic materials-Leeb hardness test-Part 2: Verification and calibration of hardness tester
* GB/T 13794.4 Metallic materials-Leeb hardness test-Part 4: Tables of hardness values conversion
* JB/T 9378-2001 Industry standard of Leeb hardness tester
* JJG 747-1999 Verification regulation of Leeb hardness tester
