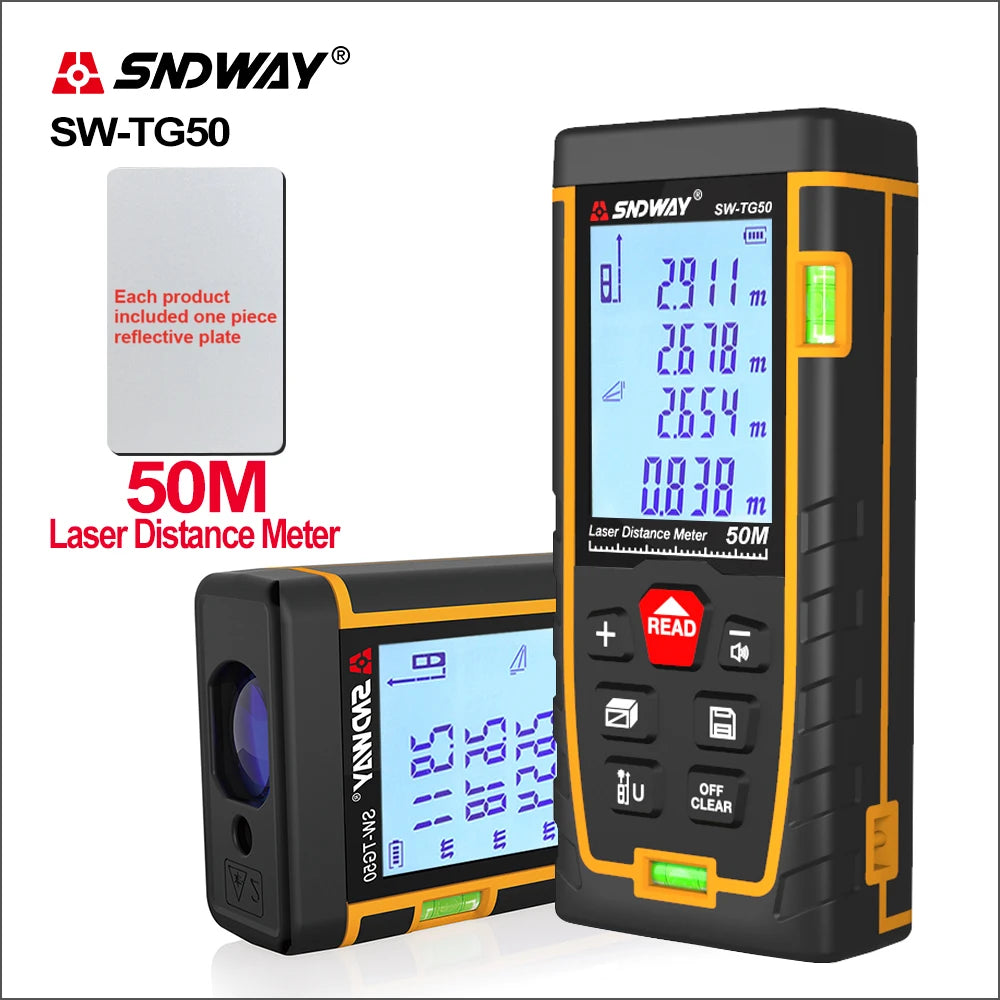

SW-TG50 Range Finder Laser Double Horizontal Bubble Distance Meter 50M 70M 100M Range Battery-Powered Hand Tool Device
Rangefinder Laser Double Horizontal Bubble Distance Meter Range Battery-Powered Hand Tool Device SW-TG50 70 100 120 Feature
Instant measurement of distance, area & volume with one button operation: YES
Self Calibration: YES
Wide measuring range: YES
High accuracy: ±2mm (0.079inch)
Automatic calculation of Area and Volume: YES
Indirect measurement by Pythagorean Theorem: YES
Single/Continous measurement: YES
Max/Min distance tracking (display value): YES
Easy Addition/ Subtraction of measurement: YES
Set up front / rear benchmark: YES
Selectable meter(m), inch(in) and feet(ft): YES
Data store/ recall function: YES
Data Hold / Data clear function: 30 units
Air Bubble Level: YES, Included
Easy targeting with bright laser pointer: YES
Large LCD with backlight and multi-line display (4 lines): YES
Auto correction and error report technology: YES
Buzzer indication: YES
Battery status Indication: YES
IP54 protection (dust & splash proof): YES
Auto / Manual power off function: YES
Multifunction with intelligent calculation: YES
Compact & handy design: YES
CE, ROHS, FCC certificate: YES
Specification
|
Item |
Specifications |
|||
|
Working Range |
0.05-50m |
0.05-70m |
0.05-100m |
0.05-120m |
|
Distance measurement precision |
±2mm |
|||
|
Measurement unit options |
meter(m), inch(in) and feet(ft) |
|||
|
Continuous measurement function |
yes |
|||
|
Outdoor Target reflection board |
no |
|||
|
Area Measurement Function |
yes |
|||
|
Volume measurement function |
yes |
|||
|
Pythagorean proposition measurement |
Full mode |
|||
|
Add and subtract measurement function |
yes |
|||
|
Min/Max value |
yes |
|||
|
Max storage |
30 units |
|||
|
Automatic backlight |
yes |
|||
|
Buttons/Keys sound |
yes |
|||
|
Laser level |
II |
|||
|
Laser Type |
635nm,<1mW |
|||
|
Automatically cut off laser |
20s |
|||
|
Automatic shutdown |
150s |
|||
|
Storage Temperature |
-20-60℃ |
|||
|
Working Temperature |
-0-40℃ |
|||
|
Storage Humidity |
20%-80%RH |
|||
|
Battery |
1.5V 2*AAA |
|||
|
Battery Life |
8000times for single measurement |
|||
|
Weight(Including Battery) |
90g |
|||
|
Dimension |
112*50*25mm |
|||
Instant measurement of distance, area & volume with one button operation: YES
Self Calibration : YES
Wide measuring range : YES
Measurement range : 80m
Measurement accuracy : 2mm (0.079inch)
Model number : SW-TG50/TG70/TG100/TG120
Automatic calculation of Area and Volume: YES
Indirect measurement by Pythagorean Theorem: YES
Single/Continous measurement: YES
Max/Min distance tracking (display value): YES
Easy Addition/ Subtraction of measurement: YES
Set up front / rear benchmark: YES
Selectable meter(m), inch(in) and feet(ft): YES
Data store/ recall function: YES
Data Hold / Data clear function: 30 units
Air Bubble Level: YES, Included
Easy targeting with bright laser pointer: YES
Large LCD with backlight and multi-line display (4 lines): YES
Auto correction and error report technology: YES
Buzzer indication: YES
Battery status Indication: YES
IP54 protection (dust & splash proof): YES
Auto / Manual power off function: YES
Multifunction with intelligent calculation: YES
Compact & handy design: YES
CE, ROHS, FCC certificate: YES
Power type : battery-powered

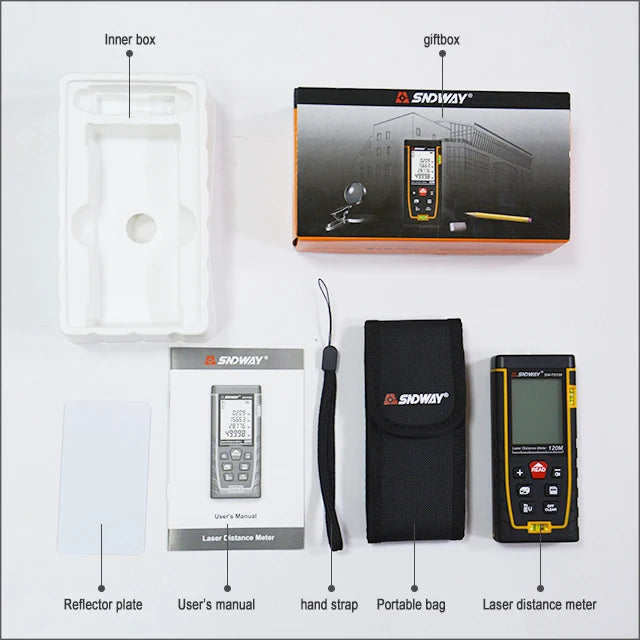

Package included
1 X LASER DISTANCE METER
1 X EngLish USER'S MANUAL
1 X Portable bag
1 X Hand strap
1 x Gift box
1 x Reflector
